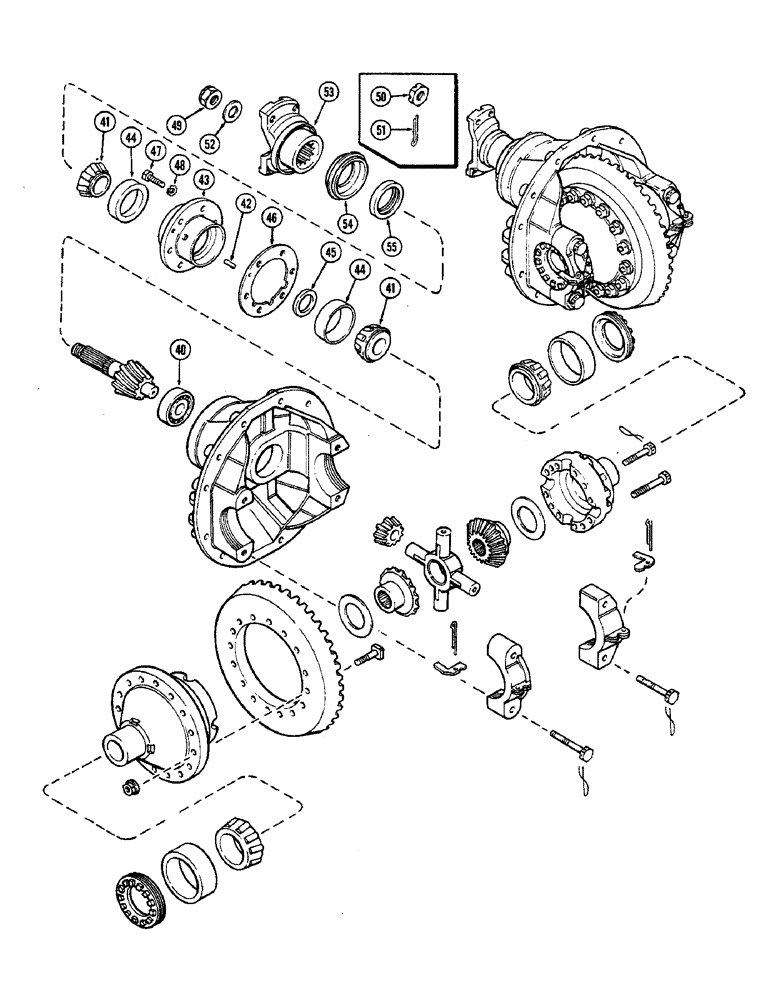

Запчасти Case IH 2470 (196) - FRONT AXLE DIFFERENTIAL CARRIER ASSEMBLY, CONTD (05) - STEERING

A153459

CARRIER

ASSEMBLY - (Replaces A140871) (Continued from figure 194), Includes: Ref. 40 - 55

1шт.

40

L33062

ROLLER BEARING

BEARING - roller, differential pinion spigot (Replaces A44208)

1шт.

41

A44210

ROLLER BEARING,1.75" ID x 1.25"

CONE - bearing, differential pinion, 1-3/4 ID x 1-1/8" wide 44.45 x 28.575 MM)

2шт.

A44230

CAGE ASSY.,4.250" OD

CAGE ASSEMBLY - pinion, Includes: Ref. 42 - 44

1шт.

42

A45631

PIN

- guide plunger

1шт.

43

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing carrier (Order 44230)

1шт.

44

F61284

BEARING CUP

CUP - bearing, pinion bearing cage, 3-3/4 OD x 7/8" wide (95.25 x 22.25 MM)

2шт.

45

A45587

BUSHING

SPACER - pinion shaft bearing, 0.514" (13.0556 MM) (Replaces A44243)

1шт.

45

A45588

BUSHING

SPACER - pinion shaft bearing, 0.522" (13.2588 MM) (Replaces A44244)

1шт.

45

A45589

BUSHING

SPACER - pinion shaft bearing, 0.530" (13.462 MM) (Replaces A44245)

1шт.

45

A45590

BUSHING

SPACER - pinion shaft bearing, 0.538" (13.6652 MM) (Replaces A44246)

1шт.

45

A45591

BUSHING

SPACER - pinion shaft bearing, 0.542" (13.7668 MM) (Replaces A44247)

1шт.

46

A44232

SHIM,.003" Thk

Pinion bearing cage (.0762 mm) .003" Thk

1шт.

46

A44233

SHIM,.005" Thk

Pinion bearing cage (0.127 mm) .005" Thk

1шт.

46

A44235

SHIM,.020" Thk

Pinion bearing cage (0.508 mm) .020" Thk

1шт.

47

A44212

BOLT

- pinion bearing, Serial Range: carrier-cage

6шт.

48

193-33

LOCK WASHER,9/16"

WASHER - lock, external teeth Shakeproof 9/16"

6шт.

49

A45567

NUT

- drive pinion shaft end to flange (Axle serial no. 2591300 and after)

1шт.

50

A44211

NUT

- drive pinion shaft end to flange (Prior to axle serial no. 2591300) (Order 1-A45567 and 1-132-56)

1шт.

52

A44209

WASHER

- drive pinion shaft, Serial Range: end-flange

1шт.

53

A44360

YOKE

- axle drive shaft

1шт.

A44218

SEAL

CAGE ASSEMBLY - pinion shaft to carrier, Includes: Ref. 54 and 55

1шт.

54

NSS

NOT SOLD SEPARAT

RETAINER - seal cage (Order A44218)

1шт.

55

NSS

NOT SOLD SEPARAT

SEAL - oil, pinion shaft to carrier (Order A44218)

1шт.

51

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), (Used with A44211 nut) 1/8" x 1 3/4"

1шт.
