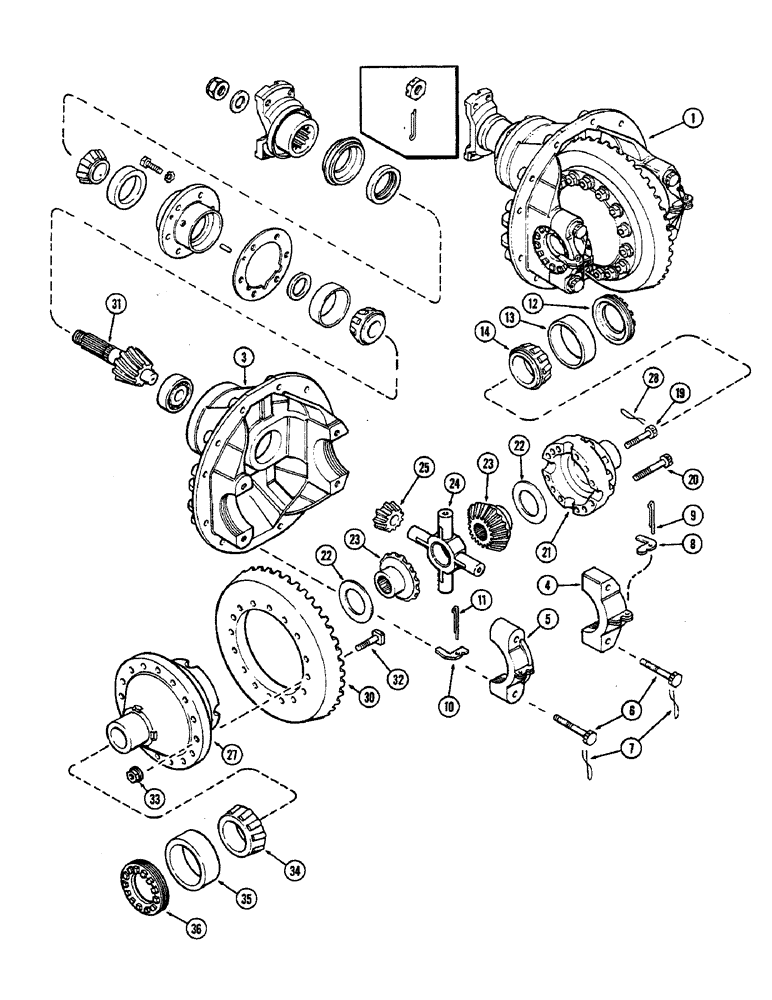

Запчасти Case IH 2470 (194) - FRONT AXLE DIFFERENTIAL CARRIER ASSEMBLY (05) - STEERING

1

A153459

CARRIER

ASSEMBLY - differential, front axle (Order A153676), Includes: Ref. 3 - 36

1шт.

A44224

CARRIER

ASSEMBLY - differential, with cap and bolts, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

CARRIER - differential (Order A44224)

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - differential bearing carrier (Order A44224)

1шт.

5

NSS

NOT SOLD SEPARAT

CAP - differential bearing carrier (Order A44224)

1шт.

6

A44227

BOLT

- differential bearing carrier cap

4шт.

7

391-620

LOCK,#16 Ga x 12"

WIRE - lock, 16 gauge x 12" (1.59 x 304.8 MM)

4шт.

8

A44216

LOCK

- adjusting, differential carrier bearing

1шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

A44217

LOCK

- adjusting, differential carrier bearing

1шт.

11

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

12

A44214

NUT

- adjusting, differential carrier bearing

1шт.

13

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - differential bearing

1шт.

14

A18173

ROLLER BEARING

CONE - bearing, differential case

1шт.

A153802

DIFFERENTIAL

ASSEMBLY - (Replaces A44350 and A140071), Includes: Ref. 19 - 27

1шт.

19

A44239

BOLT,Hex, 1/2" - 13 x 2 1/8", Gr 7, Gr 8 Optional, Drilled

- short, differential case

4шт.

20

A44241

BOLT,1/2" x 2 7/8", Gr 7

- long, differential case

8шт.

21

NSS

NOT SOLD SEPARAT

CASE - differential, plain half (Order A153802)

1шт.

22

A45248

WASHER

- thrust, side gear, 0.057 to 0.059" (1.45 to 1.50 MM)

1шт.

22

A44204

WASHER

- thrust, side gear, 0.060 to 0.062" (1.52 to 1.57 MM)

1шт.

22

A44355

WASHER

- thrust, side gear, 0.063 to 0.065" (1.60 to 1.65 MM)

1шт.

22

A44356

WASHER

- thrust, side gear, 0.066 to 0.068" (1.68 to 1.73 MM)

1шт.

22

A44357

WASHER

- thrust, side gear, 0.069 to 0.071" (1.75 to 1.80 MM)

1шт.

22

A44358

WASHER

- thrust, side gear, 0.072 to 0.074" (1.83 to 1.88 MM)

1шт.

22

A44359

WASHER

- thrust, side gear, 0.075 to 0.077" (1.91 to 1.96 MM)

1шт.

A153803

GEAR-SET

GEAR ASSEMBLY - pinion and side, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR - differential bias (Order A153803)

2шт.

24

NSS

NOT SOLD SEPARAT

SPIDER - differential (Order A153803)

1шт.

25

NSS

NOT SOLD SEPARAT

PINION - bias gear (Order A153803)

4шт.

27

NSS

NOT SOLD SEPARAT

CASE - differential, flange half (Order A153802)

1шт.

28

391-709

ELECTRICAL WIRE

WIRE - lock, 18 gauge x 84" (1.19 x 2133.6 MM)

1шт.

A45112

GEAR

SET - drive gear and pinion (Replaces A44220), Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

GEAR - differential bevel drive, 39 teeth (Order A45112)

1шт.

31

NSS

NOT SOLD SEPARAT

PINION - bevel drive, 8 teeth (Order A45112)

1шт.

32

A44263

STEP BOLT

BOLT - differential, Serial Range: gear-case

16шт.

33

A44264

NUT

- differential, Serial Range: gear-case

16шт.

34

A31243

ROLLER BEARING

CONE - bearing, differential

1шт.

35

A31242

CUP

- bearing, differential

1шт.

36

A44215

NUT

- adjusting, differential carrier bearing

1шт.
