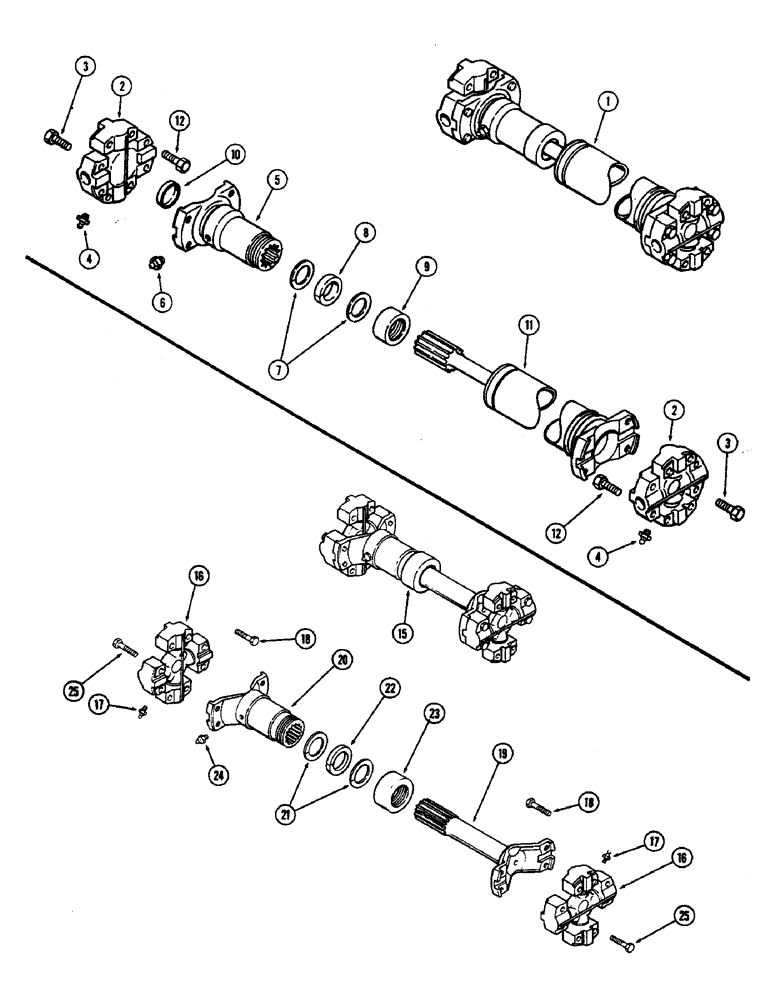

Запчасти Case IH 2470 (190) - FRONT AXLE DRIVE SHAFT ASSEMBLY (05) - STEERING

1

A75280

SHAFT

ASSEMBLY - front axle drive (Order 1-A151586, 8-129-139 and 8-26-650), Includes: Ref. 2 - 9

1шт.

2

L33945

U-JOINT SPIDER

U-JOINT - spider and bearings (Order D73653), Includes: Ref. 3 and 4

2шт.

3

A56245

BOLT,Hex, 1/2" x 2 3/8"

- 1/2 x 2-3/8" NF hex, head

8шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - 1/8"-28 straight

1шт.

5

L33943

KIT

SLIP YOKE - drive shaft end, Includes: Ref. 6 - 9

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" PT straight

1шт.

7

A19922

WASHER

- retainer

1шт.

8

A19924

SEAL

- felt, slip yoke dust shield

1шт.

9

A19923

CAP

- retainer, slip yoke dust shield

1шт.

10

L33946

CUP

PLUG - yoke, Includes: Ref. 11 and 12

1шт.

11

A44174

TUBE

- transmission end, with splined shaft

1шт.

12

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

U-joint (Replaces A17302) Hex, 3/8"-24 x 1", G8, Full Thd

16шт.

15

A151586

SHAFT

ASSEMBLY - drive, front axle, Includes: Ref. 16 - 25

1шт.

Ref. 15 - (16 1/2")

1шт.

16

A182456

U-JOINT SPIDER

U-JOINT KIT - drive shaft (Replaces D80329), Includes: Ref. 17 and 18

2шт.

17

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - lube, 1/8"-28 straight

1шт.

18

A17298

BOLT,Hex, 3/8" x 1 11/16"

SCREW - cap (3/8 x 1-11/16" NF hex.)

8шт.

19

A47530

TUBE

- drive shaft yoke

1шт.

D73676

YOKE

ASSEMBLY - slip, Includes: Ref. 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

YOKE - slip (Order D73676)

1шт.

21

D73712

WASHER

- retainer, felt seal

2шт.

22

D73711

FELT SEAL

- felt

1шт.

23

A19923

CAP

- seal

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" PT straight

1шт.

25

A17298

BOLT,Hex, 3/8" x 1 11/16"

SCREW - cap (3/8 x 1-1/16" NF hex.)

8шт.
