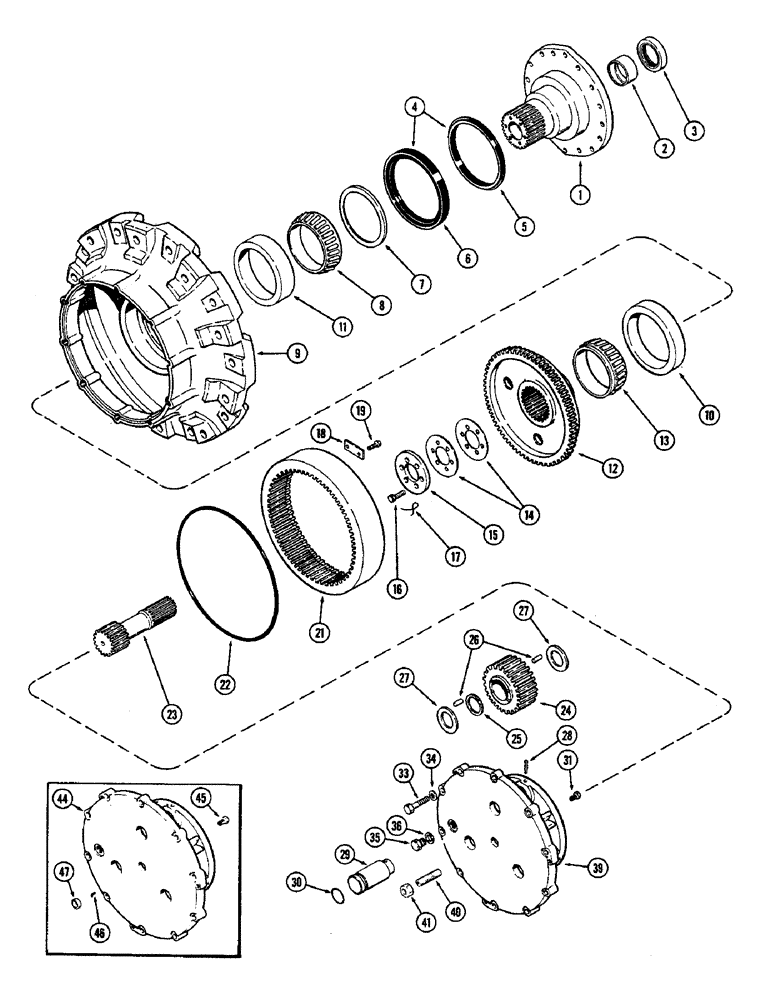

Запчасти Case IH 2470 (186) - WHEEL HUB AND SPINDLE KIT (05) - STEERING

A77296

KIT - wheel hub and spindle, front and rear, Includes: Ref. 1 - 41

1шт.

A152503

SPINDLE

ASSEMBLY - wheel (Replaces A75254 and A150703), Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

SPINDLE - wheel

1шт.

2

A75234

BUSHING

- universal joint yoke

1шт.

3

A153036

OIL SEAL

- oil, axle

1шт.

4

A76272

OIL SEAL,174.22mm ID x 219.53mm OD x 20.95mm Thk

ASSEMBLY - oil, wheel spindle, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - inner half

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - outer half

1шт.

7

A75256

RING

- back-up, bearing, 5" ID x 1-1/2" (127.0 x 38.1 MM)

1шт.

8

L31699

TAPERED BEARING

CONE - bearing, wheel hub

1шт.

9

A151255

HUB

ASSEMBLY - wheel (Replaces A139982), Includes: Ref. 10 and 11

1шт.

10

A75262

CUP

- outer bearing, 7-3/4" OD x 1-1/2" wide (196.85 x 38.1 MM)

1шт.

11

L31698

BEARING CUP

CUP - inner bearing, 7-3/16" OD x 1-5/16" wide (182.56 x 33.33 MM)

1шт.

12

A76461

HOLDER

ASSEMBLY - planetary ring gear, Includes: Ref. 13

1шт.

13

A75263

CONE

- bearing, 5" OD x 1-13/16" wide (127.0 x 30.16 MM)

1шт.

14

A75264

SHIM,.003" Thk

Hub brg. (.0762 mm) .003" Thk

1шт.

14

A75265

SHIM,.007" Thk

Hub brg. (0.1778 mm) .007" Thk

1шт.

14

A75266

SHIM,.020" Thk

Hub brg. (.5080 mm) .020" Thk

1шт.

15

A75267

CAP

- retainer, hub bearing

1шт.

16

A75268

BOLT

- drilled, 3/8 x 1-1/4" NC hex.

6шт.

17

391-629

ELECTRICAL WIRE

WIRE - safety, 16 gauge x 24" (1.59 x 609.6 MM)

1шт.

18

A153458

RETAINER

- ring gear, planetary (Replaces A75270)

6шт.

19

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- 3/8 x 1" NC hex., grade 8

12шт.

21

A76019

GEAR

- ring, planetary

1шт.

B17428

LOCTITE

ELIMINATOR - gasket (J I Case installed) (Order A63230 seal)

1шт.

22

A63230

SEAL,393.7mm ID x 403.86mm OD x 6.73mm Thk

- planetary carrier to hub, 15-1/2 x 15-7/8 x 1/4" (393.7 x 403.225 x 6.35 MM)

1шт.

23

A76594

SHAFT

- sun gear

1шт.

24

A157375

GEAR

- planet (Order A76020)

3шт.

25

A63227

SPACER

- roller bearing, 1-21/32 x 2-13/64 x 1/32" (42.07 x 55.96 x 0.79 MM)

3шт.

26

A46420

ROLLER BEARING

BEARING KIT - needle roller, 5/16" diameter x 1-3/64" (Package of 19)

6шт.

27

A63228

WASHER

- planet pin, 1-19/32 x 3 x 1/32" (40.48 x 76.2 x 0.79 MM)

6шт.

28

138-2033

PIN,6.35mm OD x 34.92mm L, Coiled

3шт.

29

A76344

PIN,40.31mm OD x 122.17mm L

- planet gear

3шт.

30

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

- pin, 1-5/16 x 1-9/16 x 1/8" (33.34 x 39.69 x 3.17 MM)

3шт.

33

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- (1/2 x 1-7/8" NC hex.)

10шт.

34

L30674

WASHER

- (17/32 x 1-1/16 x 7/64) (13.49 x 26.99 x 2.78 MM)

10шт.

35

A140222

PLUG

- drain and fill

1шт.

36

A51759

GASKET

- plug

1шт.

39

A153253

CARRIER

- planetary

1шт.

40

A153621

STUD

- sun gear shaft adjusting

1шт.

41

25-1512

JAM NUT,Jam, 3/4"-10, G5

- 3/4" NF hex. jam

1шт.

44

A76342

COVER

CARRIER - planetary, bolt adjusted (Used in some early kits) (Order A153253, A153621 and 25-1512)

1шт.

45

A75277

ADJUSTMENT SCREW

- adjusting, shaft (1/2 NC x 3/4")

1шт.

46

A75278

PIN

- adjusting bolt

1шт.

47

41-1016

PLUG,Cup, 1"

- cup, 1/2" diameter (12.7 MM)

1шт.
