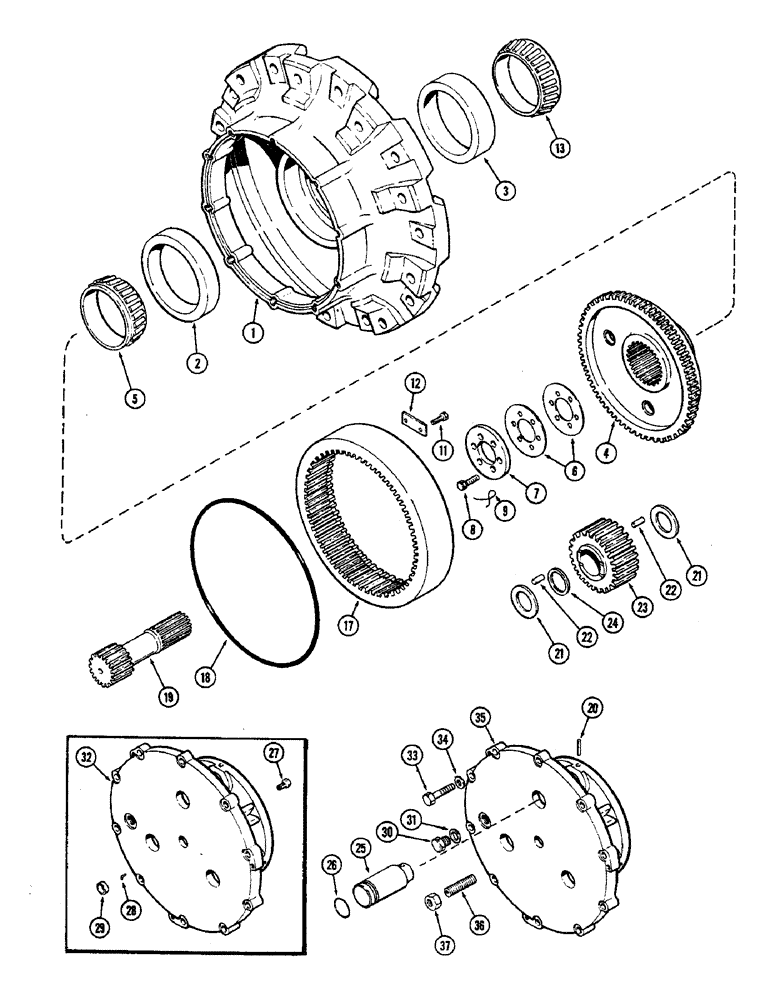

Запчасти Case IH 2470 (184) - FRONT AXLE PLANETARY (05) - STEERING

1

A151255

HUB

ASSEMBLY - wheel drive (Replaces A139982), Includes: Ref. 2 and 3

1шт.

2

A75262

CUP

- outer bearing, 7-3/4" OD x 1-1/2" width (196.85 x 38.1 MM)

1шт.

3

L31698

BEARING CUP

CUP - inner bearing, 7-3/16" OD x 1-5/16" width (182.56 x 33.33 MM)

1шт.

4

A76461

HOLDER

ASSEMBLY - planetary ring gear, Includes: Ref. 5

2шт.

5

A75263

CONE

- bearing, 5" ID x 1-13/16" width (127. x 20.6375 MM)

1шт.

6

A75264

SHIM,.003" Thk

Wheel hub brg. (.0762 mm) .003" Thk

1шт.

6

A75265

SHIM,.007" Thk

Wheel hub brg. (0.1778 mm)) .007" Thk

1шт.

6

A75266

SHIM,.020" Thk

Wheel hub brg. (.5080 mm) .020" Thk

1шт.

7

A75267

CAP

- retainer, wheel hub bearing and holder

2шт.

8

A75268

BOLT

- 3/8 x 1-1/4" NC hex., drilled

12шт.

9

391-636

ELECTRICAL WIRE

WIRE - safety, 16 gauge x 50" long (Cut as required) (1.59 x 1270.0 MM)

2шт.

11

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- 3/8 x 1" NC hex., grade 8

24шт.

12

A153458

RETAINER

- planetary ring gear (Replaces A75270 and A77291)

12шт.

13

L31699

TAPERED BEARING

CONE - bearing, wheel spindle, 5" ID x 1-1/2" width (127. x 38.1 MM)

1шт.

17

A76019

GEAR

- ring, planetary

2шт.

B17428

LOCTITE

ELIMINATOR - gasket (J I Case installed) (Order A63230 seal)

1шт.

18

A63230

SEAL,393.7mm ID x 403.86mm OD x 6.73mm Thk

- planetary carrier to wheel hub

2шт.

19

A76594

SHAFT

- planet sun gear (Replaces A76021)

2шт.

20

138-2033

PIN,6.35mm OD x 34.92mm L, Coiled

6шт.

21

A63228

WASHER

- planet pin, 1-19/32 x 3 x 1/32" (40.48 x 76.2 x 0.79 MM)

12шт.

22

A46420

ROLLER BEARING

BEARING KIT - needle roller, 5/16" diameter x 1-3/64" length 7.937 x 26.5906 MM) (Package of 19)

12шт.

23

A168269

PINION

GEAR - planet, 2.202" wide (Replaces A76020)

6шт.

23

A168268

GEAR

- planet, 2.620" wide

6шт.

24

A63227

SPACER

- roller bearing, 1-21/32 x 2-13/64 x 1/32" (42.07 x 55.96 x 0.79 MM)

6шт.

25

A76344

PIN,40.31mm OD x 122.17mm L

- planet gear

6шт.

26

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

- planet gear pin, 1-5/16 x 1-9/16 x 1/8" (33.34 x 39.69 x 3.17 MM)

6шт.

27

A75277

ADJUSTMENT SCREW

- adjusting, planet sun gear shaft (Prior to axle serial no. 10116209)

2шт.

28

A75278

PIN

- adjusting bolt lock (Prior to axle serial no. 10116209)

2шт.

29

41-1016

PLUG,Cup, 1"

- cup, planetary carrier, 1" diameter (25.4 MM) (Prior to axle serial no. 10116209)

2шт.

30

A140222

PLUG

- planetary fill and drain (Replaces A14280)

2шт.

31

A51759

GASKET

- planetary fill and drain plug (Replaces A58608)

2шт.

32

A76342

COVER

CARRIER - planetary (Prior to axle serial no. 10116209) (Order A153253, A153621 and 25-1512)

2шт.

33

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- 1/2 x 1-7/8" NC hex., grade 8

20шт.

34

L30674

WASHER

- 17/32 x 1-1/16 x 7/64" (13.49 x 26.99 x 2.78 MM)

20шт.

35

A153253

CARRIER

- planetary (Axle serial no. 10116209 and after)

2шт.

36

A153621

STUD

- sun gear shaft adjusting (Axle serial no. 10116209 and after)

2шт.

37

25-1512

JAM NUT,Jam, 3/4"-10, G5

- 3/4" NF hex. jam (Axle serial no. 10116209 and after)

2шт.
