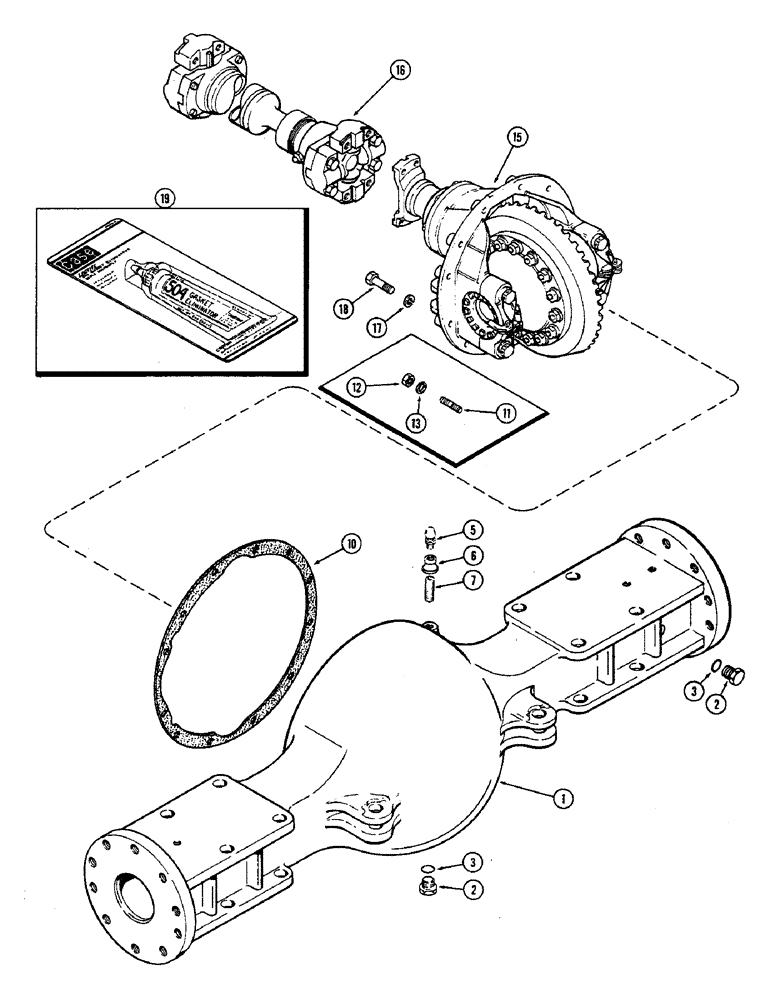

Запчасти Case IH 2470 (178) - FRONT AXLE AND DIFFERENTIAL HOUSING (05) - STEERING

1

A150717

HOUSING

- axle, differential (Replaces A76478)

1шт.

2

A140222

PLUG

- drain and filler (Replaces A14280)

2шт.

3

A51759

GASKET

- plug, drain and filler (Replaces A58608)

2шт.

5

A12928

BREATHER

- differential axle housing

1шт.

6

221-345

COUPLING, BREAK AWAY

COUPLING - reducer, 3/8" PT to 1/8" PT

1шт.

7

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - 3/8" PT x 1"

1шт.

10

A75228

GASKET

- differential, Serial Range: assembly-housing

1шт.

B17428 gasket eliminator can be used to replace A75228 gasket.

1шт.

11

G102126

STUD

- mounting, 1/2" NC x 2-1/8" (Replaces A50241)

8шт.

11

A75985

STUD

- mounting, 1/2" NC x 2-1/2"

4шт.

12

25-108

NUT,1/2"-13, G5

- 1/2" NC hex.

12шт.

13

92-8

LOCK WASHER,1/2"

12шт.

15

REF

INSTRUCTION

DIFFERENTIAL ASSEMBLY - front axle (See figures 194 and 196)

1шт.

16

REF

INSTRUCTION

SHAFT ASSEMBLY - drive, front axle (See figure 190)

1шт.

17

92-8

LOCK WASHER,1/2"

12шт.

18

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

18

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- 1/2 x 1-3/4" NC hex., grade 8

4шт.

19

B17428

LOCTITE

ELIMINATOR - gasket, 2 oz (50 CC)

1шт.

B17428 gasket eliminator can be used to replace A75228 gasket.

1шт.
