Запчасти Case IH 2470 (176) - G34778 REAR STEERING CYLINDER, WITH TWO PIECE INNER GLAND SEAL 3 INCH DIAMETER X 8 INCH STROKE (05) - STEERING

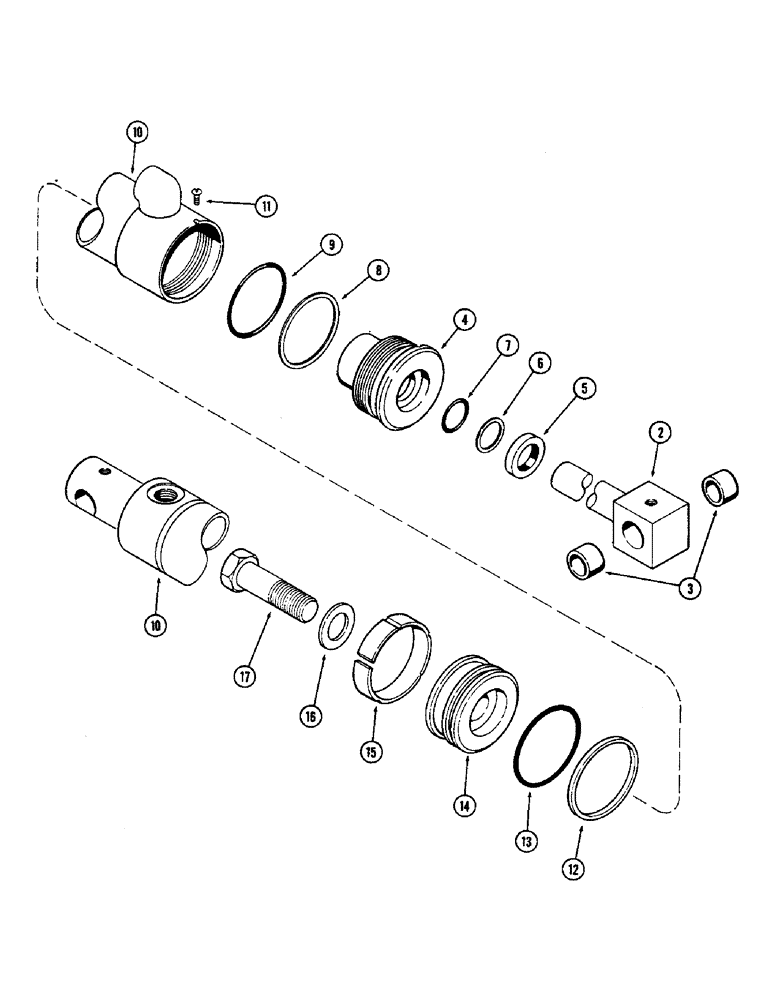

Схема запчастей Case IH 2470 - (176) - G34778 REAR STEERING CYLINDER, WITH TWO PIECE INNER GLAND SEAL 3 INCH DIAMETER X 8 INCH STROKE (05) - STEERING
8
3
10
11
10
14
17
4
6
15
7
13
9
12
2
16
5

Артикул

Название

Примечание

Количество

G34778

CYLINDER

ASSEMBLY - steering (Order G100065, figure 174), Includes: Ref. 2 - 17

2шт.

2

G35511

ROD

- cylinder, Includes: Ref. 3

1шт.

3

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- cylinder rod

2шт.

4

G34232

GLAND

ASSEMBLY - cylinder rod (Order G104143)

1шт.

5

G33955

WIPER SEAL,25.37mm ID x 38.13mm OD x 7.92mm Thk

WIPER - rod, 1 x 1-1/2 x 5/16" (25.4 x 38.1 x 7.94 MM)

1шт.

Part of Seal Repair Kit P/N G34231.

1шт.

6

A35899

RING

- back-up

1шт.

Part of Seal Repair Kit P/N G34231.

1шт.

7

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - rod, 1 x 1-1/4 x 1/8" (25.4 x 31.75 x 3.17 MM)

1шт.

Part of Seal Repair Kit P/N G34231.

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- back-up

1шт.

Part of Seal Repair Kit P/N G34231.

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 3 x 3-1/4 x 1/8" (76.2 x 82.55 x 3.17 MM)

1шт.

Part of Seal Repair Kit P/N G34231.

1шт.

10

G34779

TUBE

- cylinder

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8-32 x 1/4" round head slotted self-tapping

1шт.

12

G32034

RING

- seal

1шт.

Part of Seal Repair Kit P/N G34231.

1шт.

13

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- piston, 2-1/2 x 2-3/4 x 1/8" (63.5 x 69.85 x 3.175 MM)

1шт.

Part of Seal Repair Kit P/N G34231.

1шт.

14

G104104

- cylinder (Replaces G34229)

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear (Replaces G32033)

1шт.

Part of Seal Repair Kit P/N G34231.

1шт.

16

L30674

WASHER

- 17/32 x 1-1/16 x 7/64" (13.49 x 26.99 x 2.78 MM)

1шт.

17

28-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

- 1/2 x 1-1/2" NF hex., grade 8

1шт.

G34231

SEAL

KIT, repair, Includes: Ref. 5 - 9, 12, 13 and 15

1шт.

Выбрано товаров: 26
