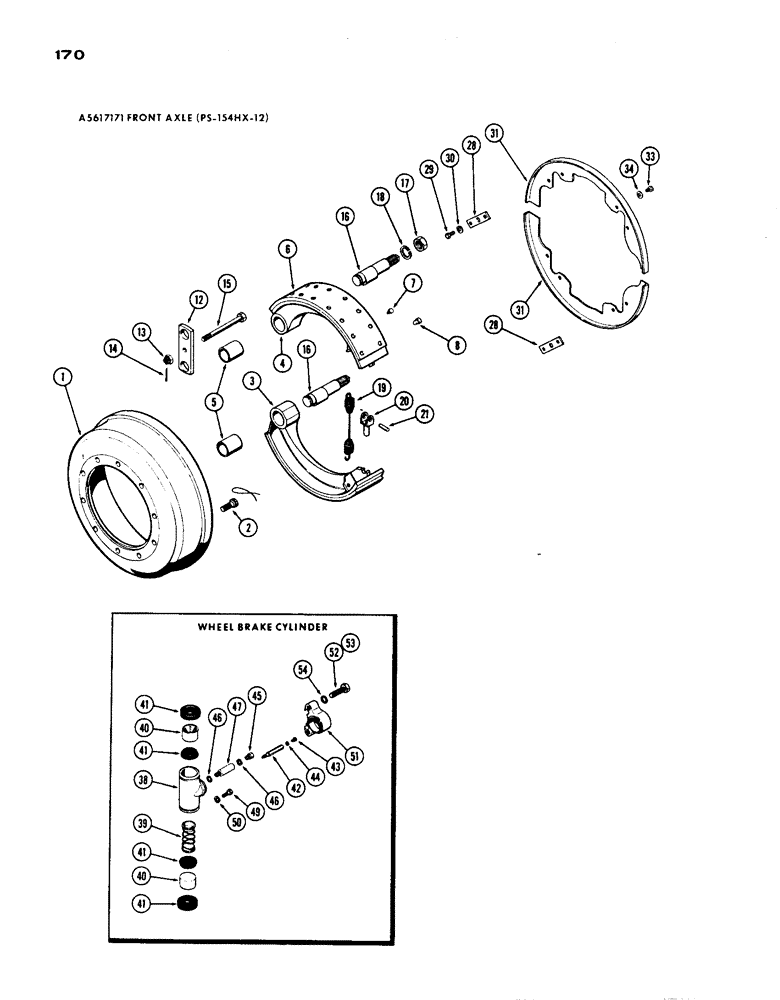

Запчасти Case IH 1200 (170) - A56171 FRONT AXLE BRAKES, 19.03 RATIO WITH CONSTANT VELOCITY JOINT (06) - POWER TRAIN

1

A15045

DRUM

- brake

2шт.

2

A14962

BOLT,5/8" x 1 1/2", Gr 8

- brake, Serial Range: drum-hub

20шт.

3

A15073

SHOE

ASSY. - brake (Lower R.H. & Upper L.H.), Includes: Ref. 5 - 8

2шт.

4

A15072

BRAKE SHOE

SHOE ASSY. - brake (Upper R.H. & Lower L.H.), Includes: Ref. 5 - 8

2шт.

5

A15062

BUSHING

- brake shoe pivot

2шт.

6

A14998

KIT

LINING KIT - brake shoe, Includes: Ref. 7

1шт.

7

A15060

RIVET

- brake lining

32шт.

8

A19884

PIN

- brake shoe

2шт.

12

A15064

LINK

- connecting, brake shoe

2шт.

13

129-282

SLOTTED NUT

- link bolt, 1/2" N.C. high slotted hex.

2шт.

14

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

15

A15059

BOLT

- brake shoe link

2шт.

16

A15066

AXLE PIN

PIN - anchor, brake shoe

4шт.

17

A15063

NUT

- anchor pin

4шт.

18

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

19

A15071

SPRING

- return, brake shoe

2шт.

20

A14996

LINK

YOKE ASSY. - brake shoe & cylinder, Includes: Ref. 21

4шт.

21

NSS

NOT SOLD SEPARAT

PIN - yoke mounting (Order Ref. 20)

1шт.

28

A15067

FLARE - dust shield mounting

4шт.

29

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- shield flare, 3/8 x 7/8" N.C., hex.

4шт.

30

92-6

LOCK WASHER,3/8"

4шт.

31

A15074

SHIELD - dust, R.H. Upper & L.H. Lower

2шт.

31

A15075

SHIELD - dust, L.H. Upper & R.H. Lower

2шт.

33

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - dust shield, 3/8 x 1/2" N.C., hex.

12шт.

34

92-6

LOCK WASHER,3/8"

12шт.

A19980

CYLINDER

ASSY. - brake, axle wheel, Includes: Ref. 38 - 41

2шт.

38

NSS

NOT SOLD SEPARAT

BODY - brake cylinder (Order A19980), wheel

1шт.

39

A15053

SPRING

- cylinder piston, brake wheel

1шт.

40

A15000

PISTON ASSY.

PISTON - brake wheel cylinder

2шт.

41

A19981

KIT

CUP & BOOT KIT - cylinder repair, brake wheel

1шт.

42

A15056

SCREW,Bleed, 1/4" - 28 x 2 15/16"

- bleeder, brake wheel cylinder

2шт.

43

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Bleed screw, brake wheel cylinder Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

44

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Brake wheel cylinder 1/4"

2шт.

45

A12989

ADAPTER

FITTING - cylinder inlet, brake wheel

2шт.

46

NLS

NO LONGER SERVICED

- inlet fitting, brake wheel cylinder

4шт.

47

A15054

EXTENSION

- inlet fitting, brake wheel cylinder

2шт.

49

166-86

12 PT SCREW,Flg, 1/2" - 13 x 1 1/4", Gr 8

SCREW - cap, 1/2 x 1-1/4" 12 pt. Ferry, brake wheel cylinder

4шт.

50

92-8

LOCK WASHER,1/2"

brake wheel cylinder 1/2"

4шт.

51

A15058

ADAPTER

- brake wheel cylinder

2шт.

52

113-408

X

BOLT - adapter, 1/2 x 2" N.C., hex., brake wheel cylinder

2шт.

53

113-430

BOLT

- adapter, 1/2 x 4-1/2" N.C., hex., brake wheel cylinder

2шт.

54

92-8

LOCK WASHER,1/2"

brake wheel cylinder 1/2"

4шт.
