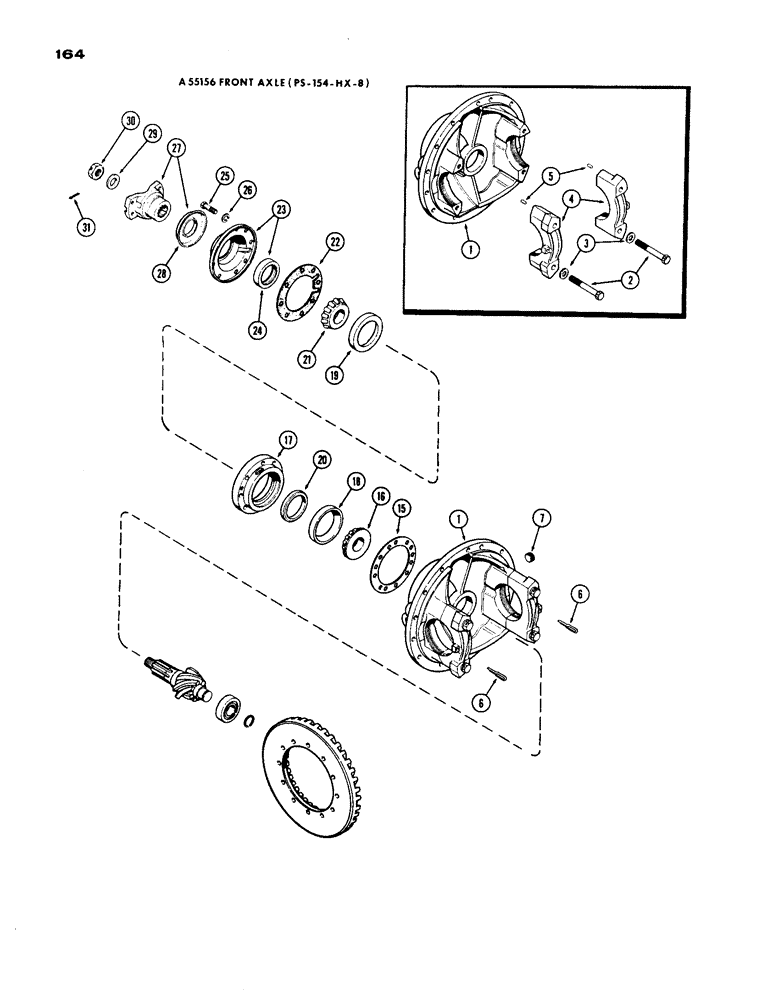

Запчасти Case IH 1200 (164) - A55156 FRONT AXLE DIFFERENTIAL, 19.03 RATIO WITH CARDON JOINT (06) - POWER TRAIN

1

A25254

CARRIER ASSY. - differential, Includes: Ref. 2 - 5

1шт.

2

A12938

SCREW,5/8" - 11 x 4 1/2"

BOLT - differential cap

4шт.

3

L30737

WASHER

- cap bolt

4шт.

4

NSS

NOT SOLD SEPARAT

CAP ASSY. - differential bearing, Includes: Ref. 5

2шт.

5

A15443

DOWEL

PIN - dowel, cap locating

2шт.

6

L30029

PIN

- lock, adjusting ring (9/32 x 2-11/16" lg.)

2шт.

6

A18196

HARDWARE

PIN - lock, adjusting ring (7/32 x 2-19/32" lg.)

2шт.

7

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- carrier, 3/4" P.T. sq. sckt. hd.

1шт.

8

NSS

NOT SOLD SEPARAT

LOCKWIRE - bearing cap bolt

1шт.

15

A12958

SHIM,.003" Thk

Pinion bearing cage .003" Thk

1шт.

15

A12956

SHIM,.005" Thk

Pinion bearing cage .005" Thk

1шт.

15

A12957

SHIM,.010" Thk

Pinion bearing cage .010" Thk

1шт.

16

A25167

ROLLER BEARING,2" ID x 1.25"

BEARING - cone, pinion inner

1шт.

17

287679C1

BEARING ASSY,50.8mm ID x 26.91mm W

CAGE ASSY. - pinion bearing (Replaces A25255), Includes: Ref. 18 and 19

1шт.

Use L30388 spacer

1шт.

18

A25168

BEARING CUP

CUP - cone bearing inner, pinion

1шт.

19

A9840

BEARING CUP

CUP - cone bearing outer, pinion

1шт.

20

A25156

SPACER

- pinion bearing cone (.187")

1шт.

20

A25157

SPACER - pinion bearing cone (.188")

1шт.

20

A25158

SPACER - pinion bearing cone (.189")

1шт.

20

A25159

SPACER

- pinion bearing cone (.190")

1шт.

20

A25160

SPACER - pinion bearing cone (.191")

1шт.

20

A25161

SPACER - pinion bearing cone (.192")

1шт.

20

A25162

SPACER

- pinion bearing cone (.198")

1шт.

20

A25163

SPACER

- pinion bearing cone (.204")

1шт.

20

A25164

SPACER

- pinion bearing cone (.210")

1шт.

20

A25165

SPACER - pinion bearing cone (.216")

1шт.

20

A12963

SPACER

- pinion bearing cone (.222")

1шт.

21

A9841

ROLLER BEARING,1.875" ID x 1.0594"

BEARING - cone, pinion outer

1шт.

22

A12955

GASKET

- cover &, Serial Range: cage-carrier

1шт.

23

A25155

COVER

ASSY. - bearing cage, Includes: Ref. 24

1шт.

24

A25153

OIL SEAL

- oil, pinion

1шт.

25

113-315

BOLT - cover & cage to carrier, 7/6 x 1-5/8" N.C. hex. hd.

8шт.

26

92-7

LOCK WASHER,7/16"

8шт.

27

A25125

YOKE ASSY. - differential companion, Includes: Ref. 28

1шт.

28

A25127

SLINGER

DEFLECTOR - oil, yoke

1шт.

29

A15441

WASHER

- companion yoke nut

1шт.

30

F15441

NUT - companion yoke retainer

1шт.

31

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.
