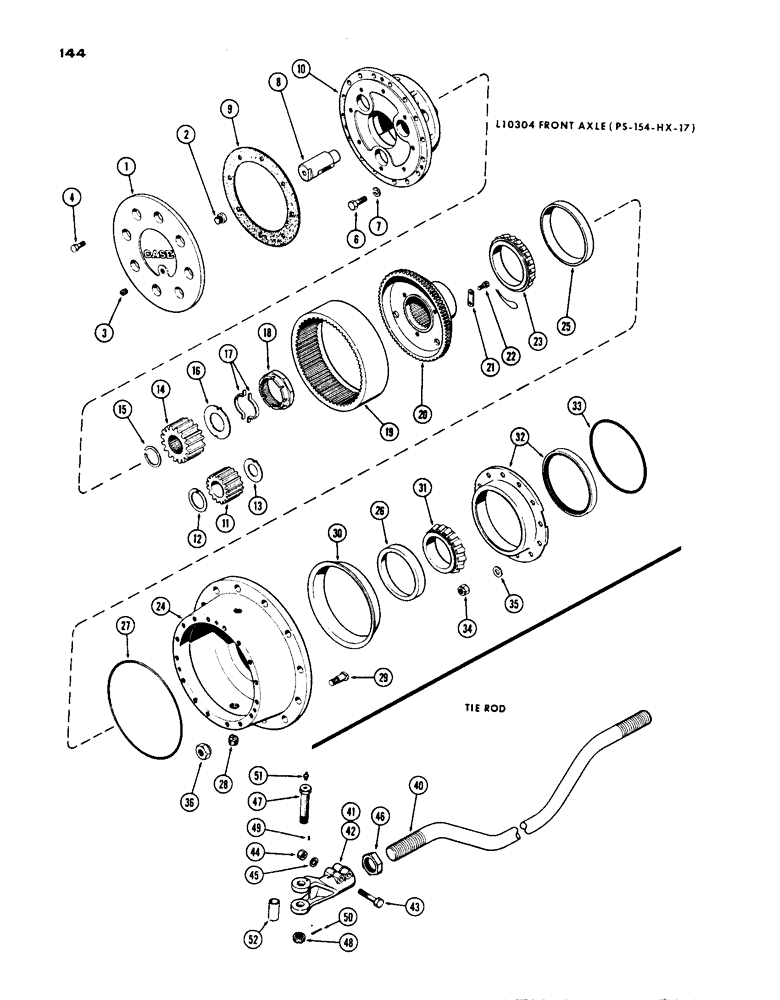

Запчасти Case IH 1200 (144) - L10304 FRONT AXLE PLANETARY, 19.03 RATIO WITH CARDON JOINT (06) - POWER TRAIN

L10304

AXLE ASSY. - front steering (Incl. Figures 145 - 155)

1шт.

1

A14973

X

COVER - planetary spider gear

2шт.

2

A12980

BUTTON

- thrust, drive joint

2шт.

3

221-1031

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - oil level, 1/4" P.T. sq. sckt. hd.

2шт.

4

L30675

SCREW

BOLT - planetary cover

16шт.

6

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

- spider to hub, 1/2 x 1-5/8" N.C. hex. hd.

32шт.

7

92-8

LOCK WASHER,1/2"

32шт.

8

A19885

SHAFT

- planetary, pinion

6шт.

9

A14971

GASKET

-, Serial Range: cover-spider

2шт.

10

A14979

U-JOINT SPIDER

SPIDER - planetary gear

2шт.

11

A14977

GEAR

PINION - planetary (16T)

6шт.

12

A14967

WASHER

- thrust, pinion outer

6шт.

13

A19886

WASHER

- thrust, pinion inner

6шт.

14

A14976

GEAR

- sun, planetary (20T)

2шт.

15

A14969

RING, SNAP

RING - snap, sun gear retainer

2шт.

16

A14966

WASHER

- planetary, sun gear

2шт.

17

A14970

LOCK ASSY

LOCK - hub bearing nut

4шт.

18

A14965

NUT

- adjusting, hub bearing

2шт.

19

A14975

GEAR

- ring, planetary

2шт.

20

A14978

HUB

ASSY. - ring gear, w/sleeve

2шт.

21

A14964

LOCK ASSY

LOCK- planetary ring gear

8шт.

22

A15983

BOLT,M10 x 1.25 x 40mm, Cl 10.9

CAPSCREW - ring gear lock

16шт.

23

A14960

BEARING

- cone, hub outer

2шт.

24

A14963

HUB ASSY. - planetary, Includes: Ref. 25 and 26

2шт.

25

A14961

BEARING CUP

CUP - bearing, hub outer

1шт.

26

A14985

BEARING CUP

CUP - bearing, hub inner

1шт.

27

A19887

O-RING,11.5" ID x 11.68" OD x 0.103"

"O" RING - spider to hub

2шт.

28

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - magnetic drain, 3/4" P.T. ctr. sunk

2шт.

29

A13112

STUD

STUD - wheel hub, axle

24шт.

30

A15418

SLINGER

- oil, hub

2шт.

31

A15020

ROLLER BEARING,4" ID x 1.4219"

BEARING - cone, hub inner

2шт.

32

L34036

SEAL

RETAINER ASSY. - hub bearing, Replaces A15031

2шт.

33

A15025

O-RING,8 3" ID x 9" OD x 1/8"

"O" RING - retainer to spindle

2шт.

34

A15033

LOCK NUT

- retainer &, Serial Range: spindle-flange

24шт.

35

A15036

WASHER

- retainer & spindle nut

24шт.

36

A12522

WHEEL NUT

- wheel to axle mounting

24шт.

40

A15082

TIE-ROD

ROD - tie, axle

1шт.

41

A13005

YOKE

- end, tie rod L.H.

1шт.

42

A13004

YOKE

- end, tie rod R.H.

1шт.

43

25282R1

BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 8

- yoke clamp, 1/2 x 2-3/4" N.F., hex. hd., tie rod

4шт.

44

129-545

NUT,1/2"-20, G8

Yoke bolt, tie rod 1/2"-20, G8

4шт.

45

92-8

LOCK WASHER,1/2"

tie rod 1/2"

4шт.

46

A13115

LOCK NUT

NUT - lock, tie rod R.H.

1шт.

47

A13107

BOLT

- tie rod yoke

2шт.

48

A13110

NUT

- tie rod yoke bolt

2шт.

49

A13111

AXLE PIN

PIN - lock, yoke bolt, tie rod

2шт.

50

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), , Tie rod 1/8" x 1 1/2"

2шт.

51

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str., tie rod

2шт.

52

A15081

BUSHING,22.28mm ID x 28.66mm OD x 56.36mm L

- tie rod yoke bolt

2шт.
