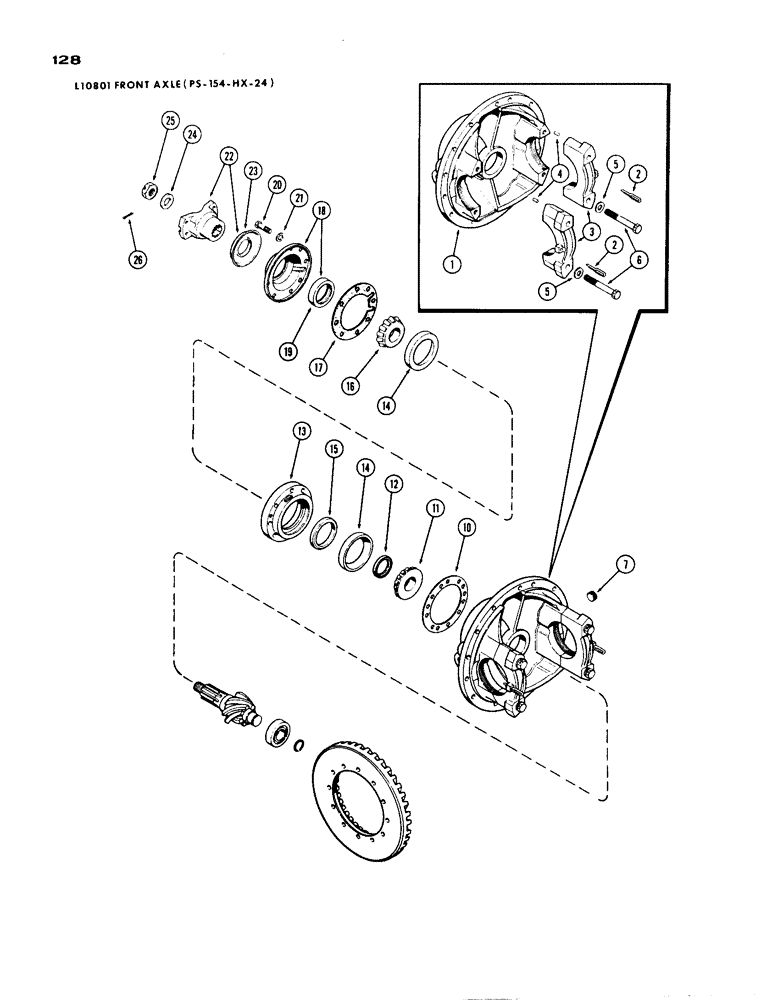

Запчасти Case IH 1200 (128) - L10801 FRONT AXLE DIFFERENTIAL, 19.03 RATIO WITH CARDON JOINT (06) - POWER TRAIN

1

L30382

CARRIER ASSY. - differential, Includes: Ref. 2 - 6

1шт.

2

L30029

PIN

- lock, adj. ring

2шт.

When lock pin is removed for repairs it must be replaced with new pin

1шт.

3

NSS

NOT SOLD SEPARAT

CAP ASSY. - differential bearing, Includes: Ref. 4

2шт.

4

A15443

DOWEL

PIN - dowel, cap locating

2шт.

5

L30737

WASHER

- bearing cap bolt

4шт.

6

A12938

SCREW,5/8" - 11 x 4 1/2"

BOLT - bearing cap

4шт.

7

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, 3/4" P.T. sq. sckt. hd.

1шт.

8

NSS

NOT SOLD SEPARAT

LOCKWIRE - bearing cap bolts

4шт.

10

A12958

SHIM,.003" Thk

Pinion bearing cage .003" Thk

1шт.

10

A12956

SHIM,.005" Thk

Pinion bearing cage .005" Thk

1шт.

10

A12957

SHIM,.010" Thk

Pinion bearing cage .010" Thk

1шт.

11

L30032

ROLLER BEARING

- cone, pinion inner

1шт.

12

L30388

SPACER

- pinion inner bearing

1шт.

13

L30030

CAGE

ASSY. - pinion bearing, Includes: Ref. 14

1шт.

14

A9840

BEARING CUP

CUP - bearing, pinion

2шт.

15

A25156

SPACER

- pinion cone bearing (.187")

1шт.

15

A25157

SPACER - pinion cone bearing (.188")

1шт.

15

A25158

SPACER - pinion cone bearing (.189")

1шт.

15

A25159

SPACER

- pinion cone bearing (.190")

1шт.

15

A25160

SPACER - pinion cone bearing (.191")

1шт.

15

A25161

SPACER - pinion cone bearing (.192")

1шт.

15

A25162

SPACER

- pinion cone bearing (.198")

1шт.

15

A25163

SPACER

- pinion cone bearing (.204")

1шт.

15

A25164

SPACER

- pinion cone bearing (.210")

1шт.

15

A25165

SPACER - pinion cone bearing (.216")

1шт.

15

A12963

SPACER

- pinion cone bearing (.222")

1шт.

16

A9841

ROLLER BEARING,1.875" ID x 1.0594"

BEARING - cone, pinion outer

1шт.

17

A12955

GASKET

- pinion brg., Serial Range: cover-cage

1шт.

18

A25155

COVER

ASSY. - pinion brg. cage, Includes: Ref. 19

1шт.

19

A25153

OIL SEAL

- oil, pinion

1шт.

20

113-315

BOLT - cover & cage to carrier, 7/16" x 1-5/8" N.C. hex. hd.

8шт.

21

92-7

LOCK WASHER,7/16"

8шт.

22

A25125

YOKE ASSY. - differential companion, Includes: Ref. 23

1шт.

23

A25127

SLINGER

DEFLECTOR - oil, companoin yoke

1шт.

24

A15441

WASHER

- companion yoke nut

1шт.

25

F19657

NUT

- companion yoke retainer

1шт.

26

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.
