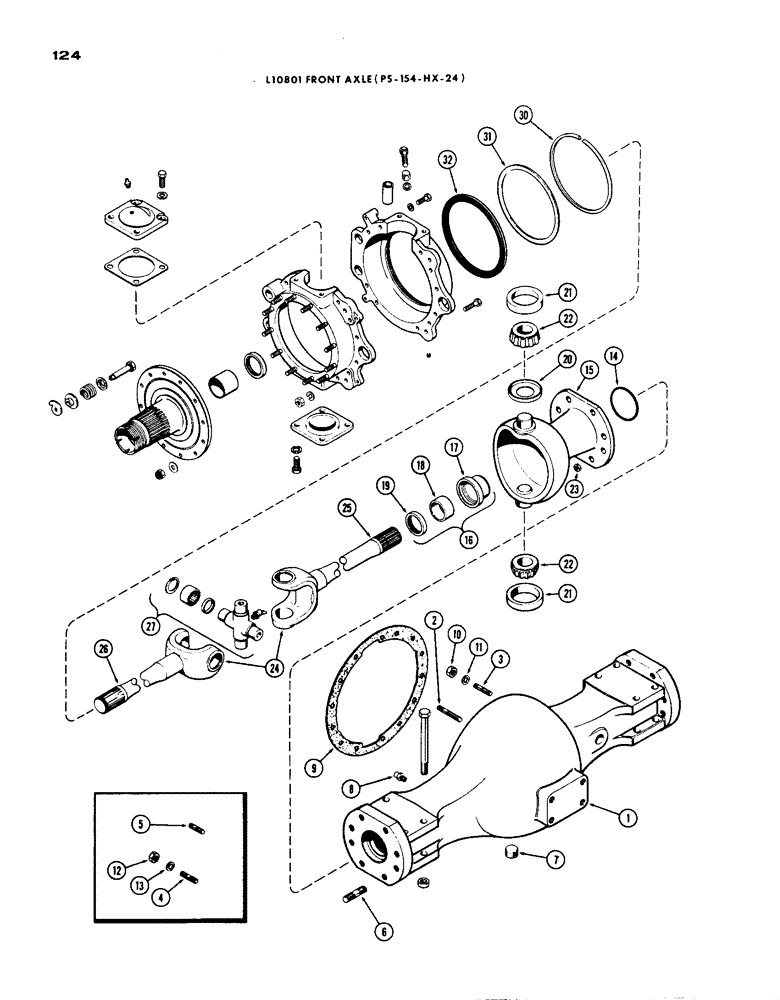

Запчасти Case IH 1200 (124) - L10801 FRONT AXLE HOUSING AND KNUCKLE, 19.03 RATIO WITH CARDON JOINT (06) - POWER TRAIN

1

A25146

HOUSING ASSY. - front axle, Includes: Ref. 2 - 7

1шт.

2

L30673

STUD

- carrier to housing (3" long)

4шт.

3

A13130

STUD

- carrier to housing (2-5/8" long)

10шт.

4

A13130

STUD

- carrier to housing (Replaced by L30673 stud) (2-5/8" long)

4шт.

5

A13131

STUD

- carrier to housing (Replaced by A13130 stud) (2" long)

10шт.

6

A16374

STUD

- trunnion socket to hsg. (2-7/8" long)

16шт.

7

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - drain, 1-1/4" P.T. sq. sckt. hd.

1шт.

8

A12928

BREATHER

- oil, axle

1шт.

9

A12943

GASKET

-, Serial Range: carrier-housing

1шт.

10

131-74

LOCK NUT,1/2"-20

NUT - housing stud, 1/2" Elastic stop (use w/ref. 2 & 3)

14шт.

11

L30674

WASHER

- housing stud (Use w/ref. 2 & 3)

14шт.

12

129-545

NUT,1/2"-20, G8

Hsg. stud (Use w/ref. 4 & 5) 1/2"-20, G8

14шт.

13

92-8

LOCK WASHER,1/2"

(Use w/Ref. 4 & 5) 1/2"

14шт.

14

A15026

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

SEAL - trunnion, Serial Range: socket-housing

4шт.

15

A25229

SOCKET ASSY. - steering trunnion, Includes: Ref. 16 - 19

2шт.

16

A25232

SUPPORT ASSY. - axle shaft, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

SUPPORT - socket axle (Order Ref. 16)

1шт.

18

A25234

BUSHING,57.63mm ID x 65.2mm OD x 31.75mm L

- axle shaft support

1шт.

19

A25235

OIL SEAL

SEAL - oil, trunnion axle shaft

1шт.

20

A15027

RETAINER

- upper steering, knuckle bearing

2шт.

21

40406

CUP

- bearing, steering knuckle

4шт.

22

A15022

CUP ASSY.

BEARING - cone, steering knuckle

4шт.

23

131-159

HARDWARE

NUT - socket mtg., 1/2" N.F. hex. jam lock

16шт.

24

A25148

JOINT

ASSY. - axle knuckle universal, Includes: Ref. 25 - 27

2шт.

25

A25150

SHAFT

- axle inner, universal

1шт.

26

A25149

YOKE

SHAFT - axle outer, universal

1шт.

27

A25151

KIT

SPIDER ASSY. - axle universal

1шт.
