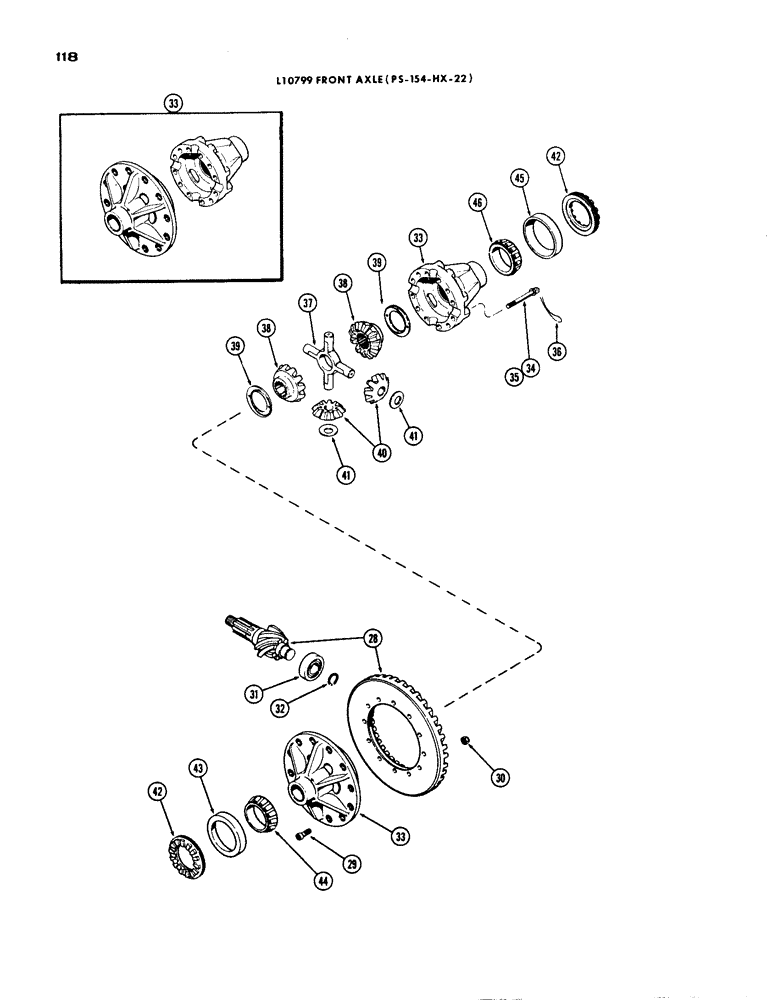

Запчасти Case IH 1200 (118) - L10799 FRONT AXLE DIFFERENTIAL, CONTINUED, 15.99 RATIO WITH CARDON JOINT (06) - POWER TRAIN

28

L30385

PINION & GEAR SET - differential (matched), Includes: Ref. 29 - 32

1шт.

29

A16438

BOLT

-, Serial Range: case-gar

12шт.

30

129-283

NUT

- case to gear bolt, 5/8" N.C. hex. thick slotted

12шт.

31

L30387

ROLLER BEARING

BEARING - rear, drive pinion

1шт.

32

A15442

LOCK

RING - lock, pinion bearing

1шт.

33

A25128

CASE

ASSY. - differential (matched Set)

1шт.

34

A25145

BOLT

- differential case (3.19" long)

8шт.

35

A25144

BOLT,1/2" - 13 x 2.38", Gr 8, Drilled

BOLT - differential case (2.38" long)

8шт.

36

NSS

NOT SOLD SEPARAT

LOCKWIRE - differential case bolts

1шт.

37

A25143

SPIDER ASSY.

SPIDER - differential

1шт.

38

A25141

GEAR

- side, differential

2шт.

39

A25142

WASHER

- thrust, side gar

2шт.

40

A25131

PINION

- differential

4шт.

41

A25140

WASHER

- thrust, pinion

4шт.

42

A25225

RING

- adjusting, differential bearing

2шт.

43

40399

WIRE

CUP - bearing cone, flange side

1шт.

44

A25224

ROLLER BEARING,3" ID x 1.2205"

BEARING - cone, flange side

1шт.

45

A25222

BEARING CUP

CUP - bearing cone, plain case half

1шт.

46

A50197

ROLLER BEARING,3" ID x 0.906"

BEARING - cone, plain case half

1шт.
