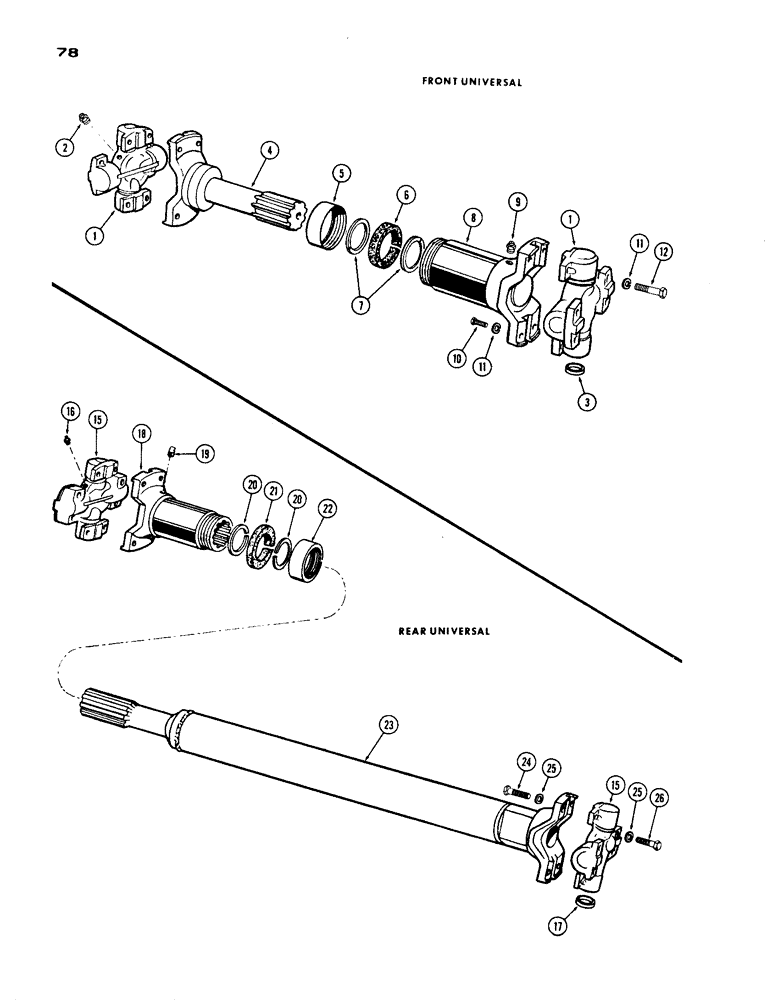

Запчасти Case IH 1200 (078) - FRONT UNIVERSAL DRIVE SHAFT (06) - POWER TRAIN

A55160

SHAFT

DRIVE SHAFT ASSY. - universal, front, Includes: Ref. 1 - 11

1шт.

1

A45592

YOKE

SPIDER ASSY. - universal (Replaces A56231), Includes: Ref. 2 and 3

2шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Lincoln Str. #5010 1/4"-28 NPT x .54" lg

1шт.

3

A56235

SEAL - oil universal

4шт.

4

A56246

YOKE

- stub

1шт.

5

A12867

CAP

RETAINER - universal felt

1шт.

6

A12873

SEAL

WASHER - felt, universal

1шт.

7

A12868

WASHER

- felt retaining

2шт.

8

A12875

YOKE ASSY. - universal joint slip, Includes: Ref. 9

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" Str. #5000

1шт.

10

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

- spider to yoke (Replaces A56243)

8шт.

11

92-8

LOCK WASHER,1/2"

16шт.

12

A56245

BOLT,Hex, 1/2" x 2 3/8"

- spider to axle yoke

8шт.

A55161

SHAFT

DRIVE SHAFT ASSY. - universal rear, Includes: Ref. 15 - 25

1шт.

15

A45592

YOKE

SPIDER ASSY. - universal joint (Replaces A56231), rear drive shaft, Includes: Ref. 16 and 17

2шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , str. #5010, Rear universal drive shaft 1/4"-28 NPT x .54" lg

1шт.

17

A56235

SEAL - oil, spider assy., rear universal drive shaft

4шт.

18

A12874

YOKE

ASSY. - slip, universal joint, rear drive shaft, Includes: Ref. 19

1шт.

19

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd., rear universal drive shaft

1шт.

20

A12868

WASHER

- felt retainer, rear universal drive shaft

2шт.

21

A12873

SEAL

WASHER - felt, retainer, rear universal drive shaft

1шт.

22

A12867

CAP

RETAINER - felt and washer, rear universal drive shaft

1шт.

23

A56249

TUBE

SHAFT - universal drive, rear shaft

1шт.

24

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

- spider to yoke (Replaces A56243), rear universal drive shaft

8шт.

25

92-8

LOCK WASHER,1/2"

rear universal drive shaft 1/2"

16шт.

26

A56245

BOLT,Hex, 1/2" x 2 3/8"

- universal joint to axle yoke, rear drive shaft

8шт.
