(076) - INTERMEDIATE SHAFT AND IDLER

Запчасти Case IH 1200 (076) - INTERMEDIATE SHAFT AND IDLER (06) - POWER TRAIN

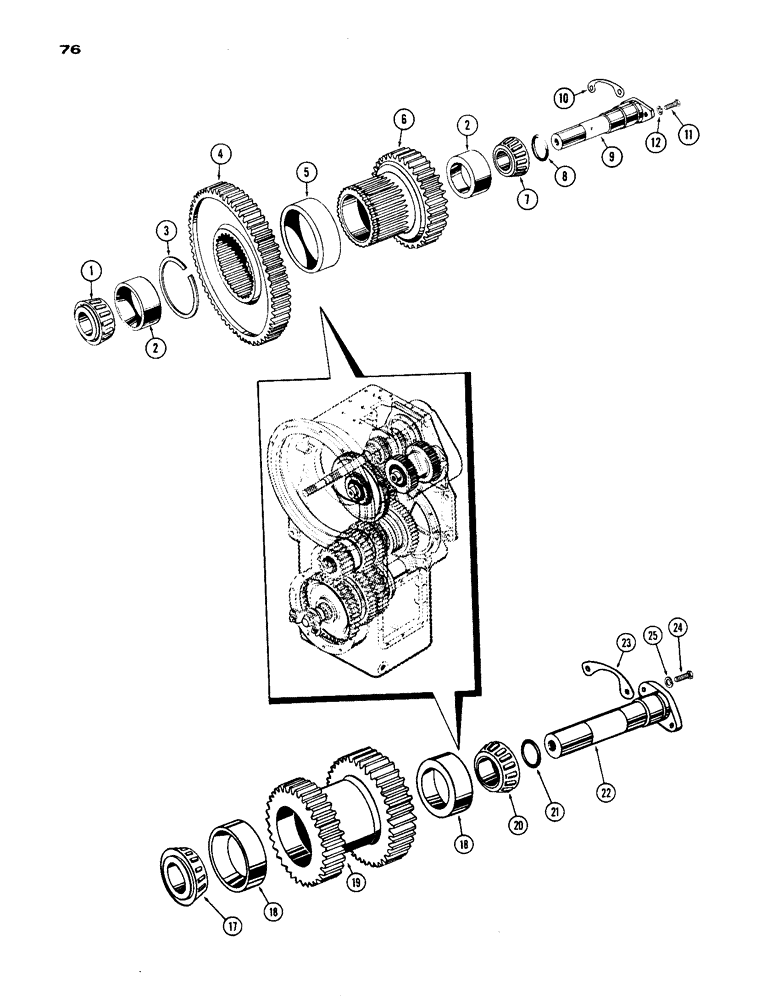

Схема запчастей Case IH 1200 - (076) - INTERMEDIATE SHAFT AND IDLER (06) - POWER TRAIN
3
4
21
7
12
22
20
24
2
10
16
6
19
17
1
8
2
25
23
9
18
5
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L10527

TRANSMISSION ASSY. - complete (Transmission S/N 96617E and after), Includes: Ref. A - 12

1шт.

L10508

TRANSMISSION ASSY. - complete (Transmission S/N 7291E to Transmission S/N 96617E), Includes: Ref. A - 12

1шт.

A55155

TRANSMISSION ASSY. - complete (Prior Transmission S/N 7291E), Includes: Ref. A - 12

1шт.

a

A55796

CONE

- bearing

1шт.

2

A55798

CAP

CUP - cone bearing

2шт.

3

A55795

RING - retaining

1шт.

4

A55794

GEAR - high (67T)

1шт.

5

A55793

SPACER - gear

1шт.

6

A55792

GEAR & QUILL - low (36T)

1шт.

7

A55797

ROLLER BEARING,1.625" ID x 1.59"

CONE - bearing

1шт.

8

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - bearing to shaft

1шт.

9

A55799

SHAFT - intermediate

1шт.

10

A55802

SHIM (.004")

1шт.

10

A55803

SHIM,.007" Thk

1шт.

10

A55804

SHIM,.010" Thk

1шт.

11

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

12

92-7

LOCK WASHER,7/16"

2шт.

L10527

TRANSMISSION ASSY. - complete (Transmission S/N 96617E and after), reverse idler, Includes: Ref. 17 - 25

1шт.

L10508

TRANSMISSION ASSY. - complete (Transmission S/N 7291E to Transmission S/N 96617E), reverse idler, Includes: Ref. 17 - 25

1шт.

A55155

TRANSMISSION ASSY. - complete (Prior Transmission S/N 7291E), reverse idler, Includes: Ref. 17 - 25

1шт.

17

40384

ROLLER BEARING

CONE - bearing, reverse idler

1шт.

18

A55807

BEARING, CUP,83.7375 mm OD x 23.7105, 30.2635 mm

SUP - cone bearing, reverse idler

2шт.

19

A55805

GEAR - reverse idler (33T & 37T)

1шт.

20

A30116

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing, reverse idler

1шт.

21

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - idler shaft, reverse

1шт.

22

A55799

SHAFT - reverse idler

1шт.

23

A55802

SHIM (.004"), reverse idler

1шт.

23

A55803

SHIM,.007" Thk

Reverse idler .007" Thk

1шт.

23

A55804

SHIM,.010" Thk

Reverse idler .010" Thk

1шт.

24

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Reverse idler Hex, 7/16"-14 x 1 1/4", G5, Full Thd

2шт.

25

92-7

LOCK WASHER,7/16"

reverse idler 7/16"

2шт.
