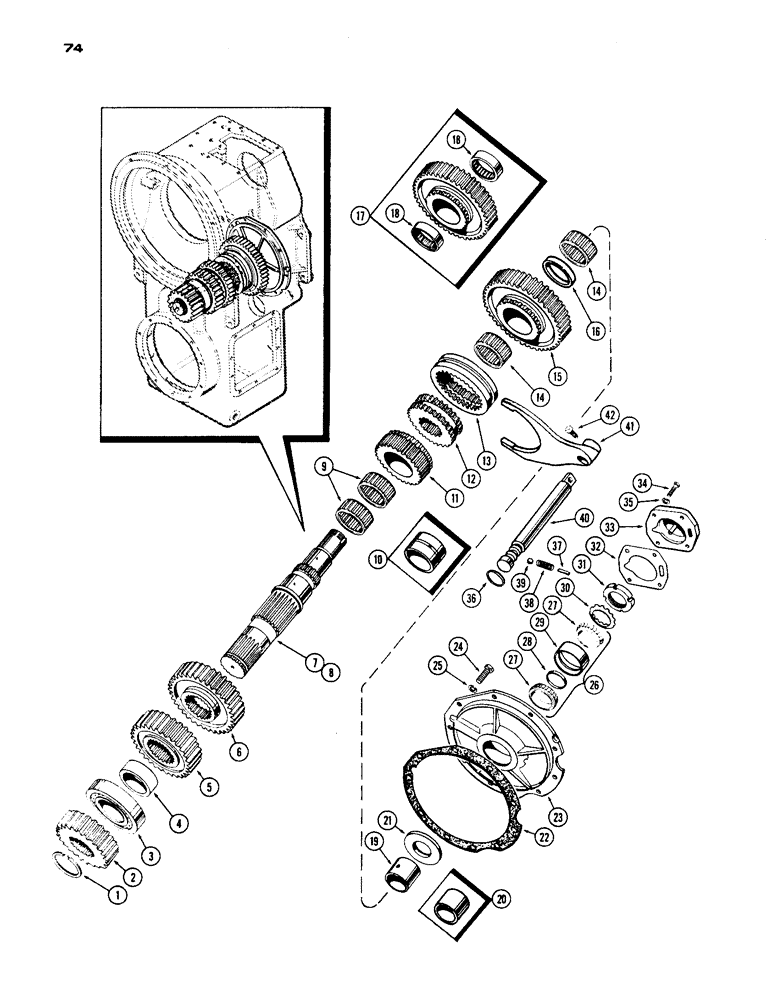

Запчасти Case IH 1200 (074) - MAIN SHAFT AND HI-LOW SHIFT (06) - POWER TRAIN

L10527

TRANSMISSION ASSY. - complete (Transmission S/N 96617E and after), Includes: Ref. 1 - 42

1шт.

L10508

TRANSMISSION ASSY. - complete (Transmission S/N 7291E to Transmission S/N 96617E), Includes: Ref. 1 - 42

1шт.

A55155

TRANSMISSION ASSY. - complete (Prior Transmission S/N 7291E), Includes: Ref. 1 - 42

1шт.

1

A55775

OIL SEAL

RING - snap, 1st & 4th gear (.120")

1шт.

1

A55776

RING - snap, 1st & 4th gear (.127")

1шт.

1

A55777

RING - snap, 1st & 4th gear (.134")

1шт.

2

A55774

GEAR - 1st & 4th mainshaft (25T)

1шт.

3

A55773

BEARING

- front, mainshaft

1шт.

4

A55762

SPACER - front bearing

1шт.

5

A55761

GEAR - 2nd & 5th, mainshaft (31T)

1шт.

6

A55760

GEAR - 3rd & 6th, mainshaft (36T)

1шт.

7

L30017

SHAFT - main (Trans. S/N 109962 & after)

1шт.

8

A55759

X

SHAFT - main (Prior Trans. S/N 109962)

1шт.

9

L30016

BEARING

- hi. range gr. (Trans. S/N 109962 & after)

2шт.

10

A25265

BUSHING

- high gear, (Prior Trans. S/N 109962)

1шт.

11

A55745

GEAR - high range, mainshaft (29T)

1шт.

12

L30018

SLEEVE - hub, hi-low (Trans. S/N 109962 & after)

1шт.

12

A55778

SLEEVE - hi-low hub (Prior Trans. S/N 109962)

1шт.

13

A55749

HUB - shift, hi-low

1шт.

14

L30016

BEARING

- lo. range gr. (Trans. S/N 109962 & after)

2шт.

15

A55781

GEAR

- low range (44T) (Trans. S/N 109962 & after)

1шт.

16

L30019

SPACER - bearing (Trans. S/N 109962 & after)

1шт.

17

A55780

GEAR ASSY - low range, (Prior Trans. S/N 109962), Includes: Ref. 18

1шт.

18

A55746

BEARING - needle (Prior Trans. S/N 109962)

2шт.

19

L30020

RACE - brg., low gear (Trans. S/N 109962 & after)

1шт.

20

A55779

RACE - brg., low gear (Prior Trans. S/N 109962)

1шт.

21

A55782

WASHER

- thrust, low gear

1шт.

22

A55791

GASKET

- bearing carrier

1шт.

23

A55783

CARRIER - bearing, mainshaft

1шт.

24

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

10шт.

25

92-7

LOCK WASHER,7/16"

10шт.

26

A55784

BEARING, ROLLER

BEARING ASSY - rear, mainshaft, Includes: Ref. 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

CONE - bearing

2шт.

28

NSS

NOT SOLD SEPARAT

SPACER - cone

1шт.

29

NSS

NOT SOLD SEPARAT

CUP - bearing cone

1шт.

30

A55785

X

WASHER - lock, rear bearing

1шт.

31

A55786

X

NUT - lock, rear bearing

1шт.

32

A55791

GASKET

- rear bearing cap

1шт.

33

A55787

CAP ASSY. - rear bearing (w/tube)

1шт.

34

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

4шт.

35

92-7

LOCK WASHER,7/16"

4шт.

36

A55855

OIL SEAL

- oil, shift rail

1шт.

37

A55854

PIN,6.35mm OD x 19.05mm L

- mesh lock spring

1шт.

38

A55853

SPRING - mesh lock ball

1шт.

39

211-12

BALL,7/16 Dia

- mesh lock, shift rail (7/16" dia.)

1шт.

40

A55850

RAIL - hi-low shift fork

1шт.

41

A55851

FORK - hi-low shift

1шт.

42

A30214

SCREW - lock, shift fork

1шт.
