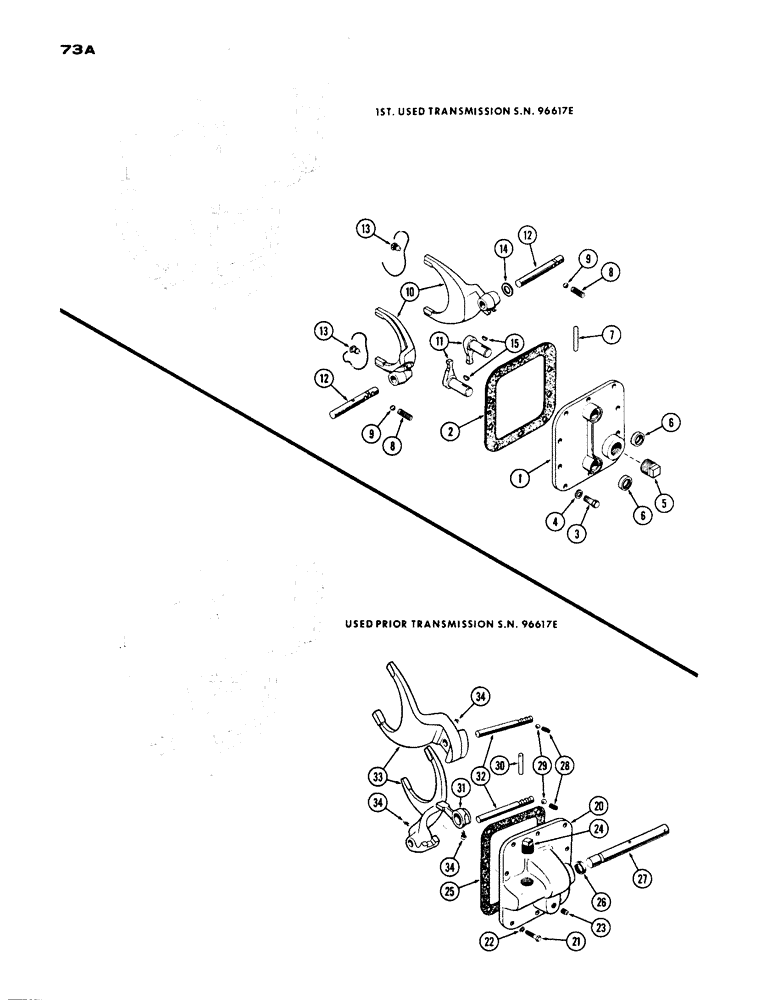

Запчасти Case IH 1200 (073A) - RANGE SHIFT COVER, FIRST USED TRANSMISSION SERIAL NUMBER 96617E (06) - POWER TRAIN

L10527

TRANSMISSION ASSY. - complete (Transmission S/N 96617E and after), Includes: Ref. 1 - 14

1шт.

1

L30215

COVER - side, range shift

1шт.

2

A55885

GASKET

- range shift cover

1шт.

3

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

10шт.

4

92-7

LOCK WASHER,7/16"

10шт.

5

221-1837

PLUG

- pipe, 1-1/4" sq. hd.

1шт.

6

A55855

OIL SEAL

- oil, shifter lever

2шт.

7

A55879

PIN - interlock, shift lever

1шт.

8

A55853

SPRING - musch lock ball

2шт.

9

211-12

BALL,7/16 Dia

- mesh lock (7/16" dia.)

2шт.

10

L30216

FORK - shift, speed selector

2шт.

11

L30217

ARM - shift fork

2шт.

12

A55880

RAIL - range selector

2шт.

13

23095

HYDRAULIC HOSE

SCREW - lock, shift, Serial Range: fork-rail

2шт.

14

L30405

WASHER - overshift

1шт.

15

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Arm #9, 3/16" x 3/4"

2шт.

L10508

TRANSMISSION ASSY. - complete (Transmission S/N 7291E to transmission S/N 96617E), range shift cover used prior to trans. s/n 96617E, Includes: Ref. 20 - 34

1шт.

A55155

TRANSMISSION ASSY. - complete (Prior Transmission S/N 7291E), range shift cover used prior to trans. s/n 96617E, Includes: Ref. 20 - 34

1шт.

20

A55876

COVER - control, speed selector, range shift used prior to trans. s/n 96617E

1шт.

21

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Range shift cover used prior to trans. S/N 96617E Hex, 7/16"-14 x 1 1/4", G5, Full Thd

10шт.

22

92-7

LOCK WASHER,7/16"

range shift cover used prior to trans. s/n 96617E 7/16"

10шт.

23

221-1663

PLUG,Hex Hd, 3/8"-18

- pipe, 3/8" hex. hd., range shift cover used prior to trans. s/n 96617E

1шт.

24

221-1015

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - pipe, 3/4" sq. hd., range shift cover used prior to trans. s/n 96617E

1шт.

25

A55885

GASKET

- control cover, range shift used prior to trans. s/n 96617E

1шт.

26

A55855

OIL SEAL

- oil, shift rail, range cover used prior to trans. s/n 96617E

1шт.

27

A55877

RAIL - speed selector fork, range shift cover used prior to trans. s/n 96617E

1шт.

28

A55853

SPRING - mesh lock ball, range shift cover used prior to trans. s/n 96617E

2шт.

29

211-12

BALL,7/16 Dia

- mesh lock (7/16" dia.), range shift cover used prior to trans. s/n 96617E

2шт.

30

A55879

PIN - interlock, shift rail, range cover used prior to trans. s/n 96617E

1шт.

31

A55878

FINGER - shift, range cover used prior to trans. s/n 96617E

1шт.

32

A55880

RAIL - speed selector shift fork, range cover used prior to trans. s/n 96617E

2шт.

33

A55881

FORK - speed selector, range shift cover used prior to trans. s/n 96617E

2шт.

34

23095

HYDRAULIC HOSE

SCREW - lock, shift fork & finger, range shift cover used prior to trans. s/n 96617E

3шт.
