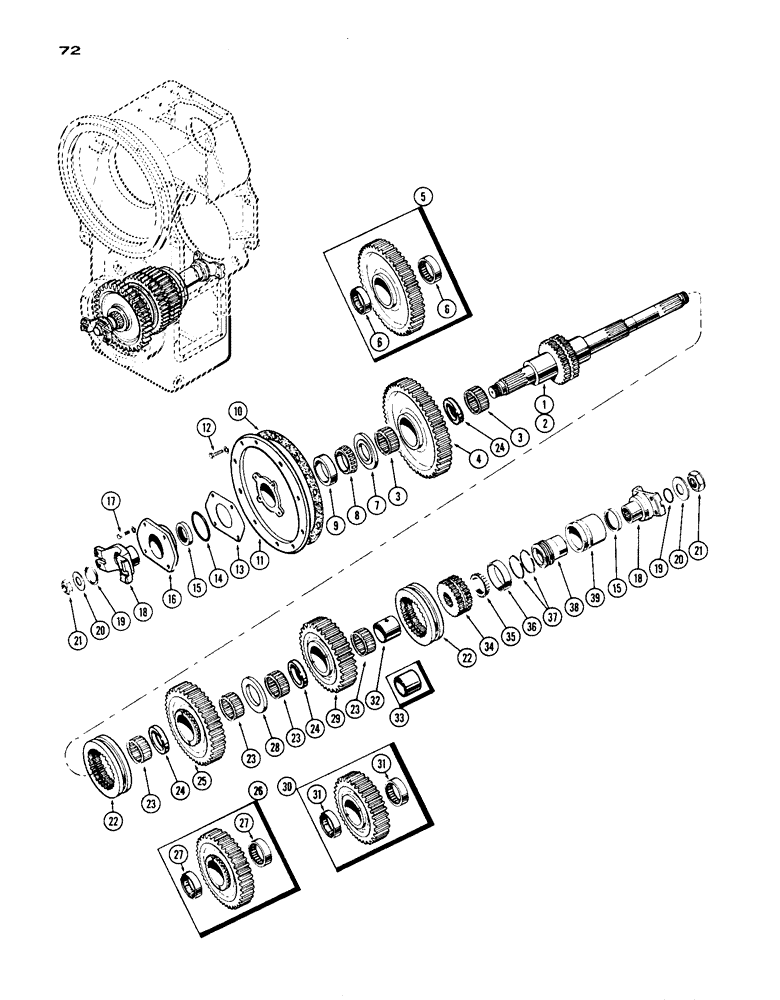

Запчасти Case IH 1200 (072) - OUTPUT SHAFT (06) - POWER TRAIN

L10527

TRANSMISSION ASSY. - complete (Transmission S/N 96617E and after), Includes: Ref. 1 - 39

1шт.

L10508

TRANSMISSION ASSY. - complete (Transmission S/N 7291E to Transmission S/N 96617E), Includes: Ref. 1 - 39

1шт.

A55155

TRANSMISSION ASSY. - complete (Prior Transmission S/N 7291E), Includes: Ref. 1 - 39

1шт.

1

L30021

SHAFT

- output (Trans. S/N 109962 and after)

1шт.

2

A55808

X

SHAFT - outpur (Prior Trans. S/N 109962)

1шт.

3

L30016

BEARING

- 1st & 4th gear (Trans. S/N 109962 and after)

2шт.

4

A55814

GEAR

- 1st & 4th (Trans. S/N 109962 & after)

1шт.

5

A55813

GEAR ASSY - 1st & 4th, (55T) (Prior Trans. S/N 109962), Includes: Ref. 6

1шт.

6

A55746

BEARING (Prior Trans. S/N 109962)

2шт.

7

A55782

WASHER

- thrust, 1st & 4th gear

1шт.

8

11473K

X

CONE - frt. brg. outout shaft

1шт.

9

11472K

X

CUP - frt. brg. output - shaft

1шт.

10

A55326

GASKET - bearing carrier

1шт.

11

A55815

CARRIER - frt. brg., output shaft

1шт.

12

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

10шт.

13

A55819

SHIM,.004" Thk

Bearing cap .004" Thk

1шт.

13

A55820

SHIM - bearing cap (.007")

1шт.

13

A55821

SHIM - bearing cap (.010")

1шт.

14

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - bearing cap

1шт.

15

A55817

OIL SEAL,60.33mm ID x 79.55mm OD x 11.11mm Thk

- oil, bearing cap & rear output flange

2шт.

16

A55816

CAP

- bearing, output shaft

1шт.

17

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

4шт.

18

A55827

FLANGE - output shaft

2шт.

19

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

"O" RING - output flange

2шт.

20

A55828

WASHER

- output flange nut

2шт.

21

A55829

NUT - output flange

2шт.

22

A55749

HUB - range shift

2шт.

23

L30016

BEARING

- 2nd & 5th - 3rd & 6th gear (Trans. S/N 109962 and after)

4шт.

24

L30019

SPACER - brg. (Trans. S N 109962 & after)

3шт.

25

A55810

GEAR - 2nd. & 5th (Trans. S/N 109962 & after)

1шт.

26

A55809

GEAR ASSY. - 2nd. & 5th (Prior Trans. S/N 109962), Includes: Ref. 27

1шт.

27

A55746

BEARING - (Prior Trans. S/N 109962)

2шт.

28

A55811

WASHER - thrust

1шт.

29

A55781

GEAR

- 3rd. & 6th. (Trans. S/N 109962 & after)

1шт.

30

A55780

GEAR ASSY - 3rd. & 6th, (Prior Trans. S/N 109962), Includes: Ref. 31

1шт.

31

A55746

BEARING (Prior Trans. S/N 109962)

2шт.

32

L30020

RACE - brg., inner (Trans. S/N 109962 & after)

1шт.

33

A55779

RACE - brg., inner (Prior Trans. S/N 109962)

1шт.

34

A55812

SLEEVE

- shift hub

1шт.

35

A27301

ROLLER BEARING,2" ID x 1.193"

CONE - rear bearing

1шт.

36

A26678

BEARING CUP,3.6718" OD x 0.9375"

CUP - rear brg.

1шт.

37

A55824

SEAL

RING - piston, oil distributor

2шт.

38

A55823

DISTRIBUTOR - oil, inner

1шт.

39

A55822

DISTRIBUTOR - oil, outer

1шт.
