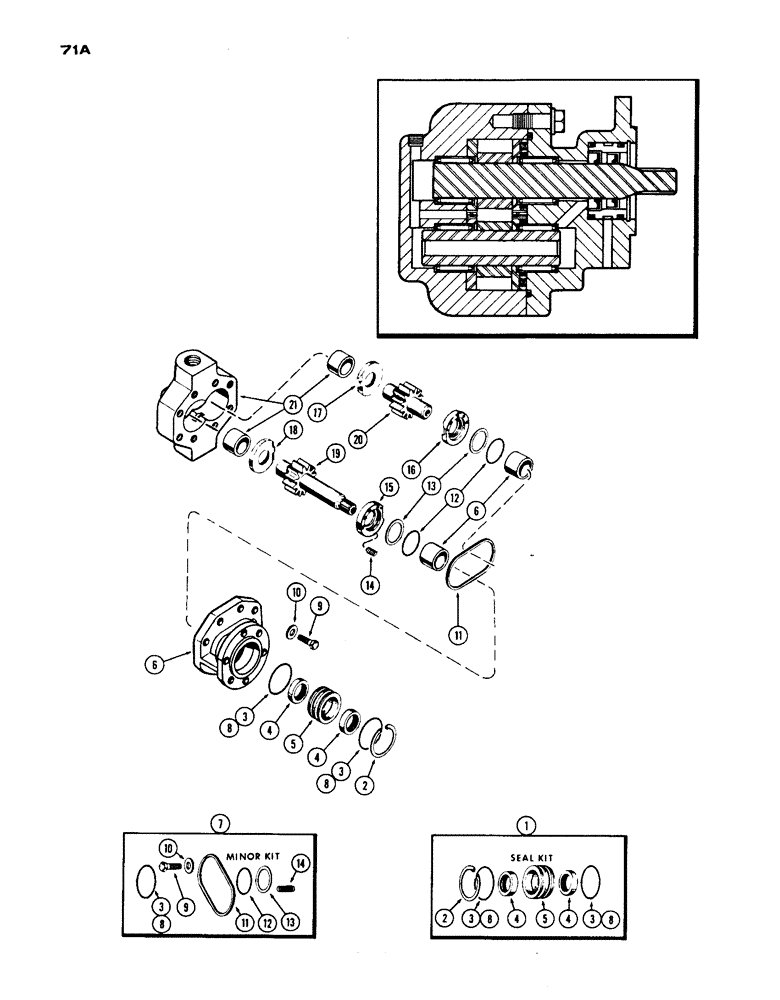

Запчасти Case IH 1200 (071A) - OIL PUMP (06) - POWER TRAIN

A17373

PUMP

ASSY. - charging, trans. oil, Includes: Ref. 1 - 21

1шт.

1

A18338

SEAL

KIT - seal, drive shaft, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

3

NSS

NOT SOLD SEPARAT

"O" RING - pump cover

2шт.

4

NSS

NOT SOLD SEPARAT

SEAL - front cover

2шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - seal and O-ring

1шт.

6

NSS

NOT SOLD SEPARAT

COVER ASSY. - front (Order A17373)

1шт.

7

A18335

KIT

- minor repair, Includes: Ref. 8 - 14

1шт.

8

NSS

NOT SOLD SEPARAT

"O" RING - front cover

2шт.

9

NSS

NOT SOLD SEPARAT

BOLT - attaching, front cover

8шт.

10

NSS

NOT SOLD SEPARAT

WASHER - cover bolt

8шт.

11

NSS

NOT SOLD SEPARAT

GASKET - front cover

1шт.

12

NSS

NOT SOLD SEPARAT

"O" RING - journal

2шт.

13

NSS

NOT SOLD SEPARAT

WASHER - back-up

2шт.

14

NSS

NOT SOLD SEPARAT

SPRING - thrust plate

2шт.

15

NSS

NOT SOLD SEPARAT

PLATE - thrust, drive gear to cover (Order A17373)

1шт.

16

NSS

NOT SOLD SEPARAT

PLATE - thrust, driven gear to cover (Order A17373)

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE - thrust, driven gear to body (Order A17373)

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - thrust, drive gear to body (Order A17373)

1шт.

19

NSS

NOT SOLD SEPARAT

GEAR - drive (Order A17373)

1шт.

20

NSS

NOT SOLD SEPARAT

GEAR - driven (Order A17373)

1шт.

21

NSS

NOT SOLD SEPARAT

BODY ASSY. - charging pump (Order A17373)

1шт.
