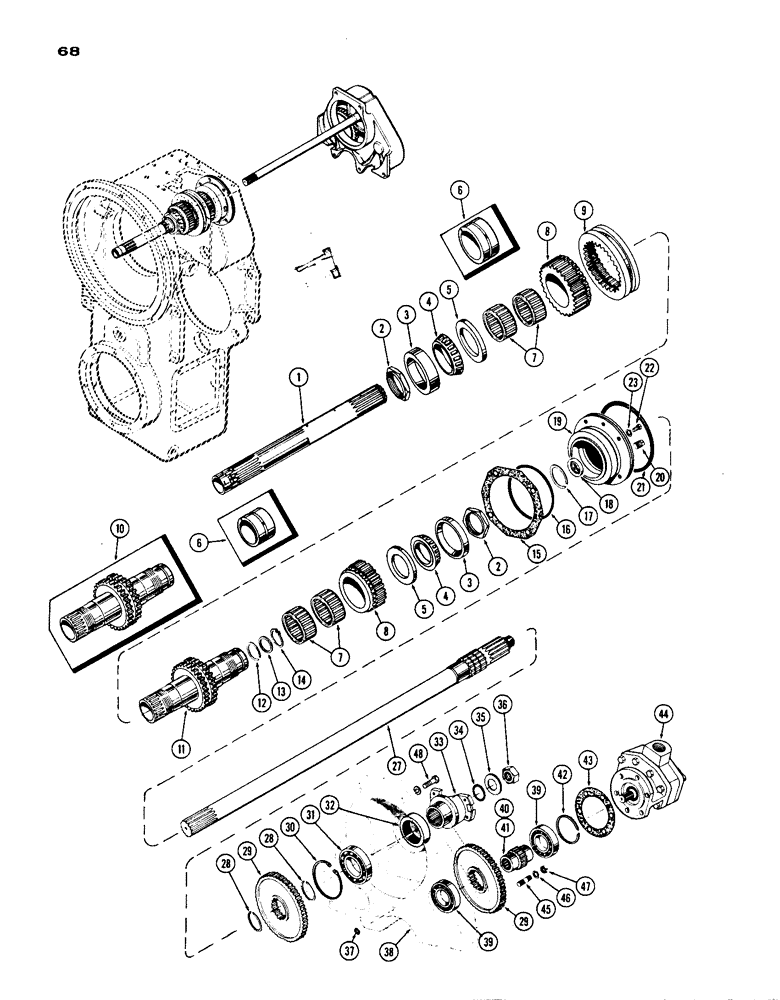

Запчасти Case IH 1200 (068) - INPUT SHAFT (06) - POWER TRAIN

L10527

TRANSMISSION ASSY. - complete (Transmission S/N 96617E and after), Includes: Ref. 1 - 23

1шт.

L10508

TRANSMISSION ASSY. - complete (Transmission S/N 7291E to Transmission S/N 96617E), Includes: Ref. 1 - 23

1шт.

A55155

TRANSMISSION ASSY. - complete (Prior Transmission S/N 7291E), Includes: Ref. 1 - 23

1шт.

1

A55750

SHAFT - input

1шт.

2

A55748

NUT

- bearing lock

2шт.

3

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP - cone bearing

2шт.

4

T15892

TAPERED BEARING,2.625" ID x 0.866"

CONE - bearing

2шт.

5

A55747

WASHER - thrust

2шт.

6

A25265

BUSHING

- fwd. & rev. gear (Prior Trans. S/N 109962)

2шт.

7

L30016

BEARING

- fwd. & rev. gear (Trans. S/N 109962 & after)

4шт.

8

A55745

GEAR - forward & reverse

2шт.

9

A55749

HUB - shift, forward & reverse

1шт.

10

A55743

SHAFT

- input quill (Prior Trans. S/N 109962)

1шт.

11

L30015

SHAFT

- input quill (Prior Trans. S/N 109962 & after)

1шт.

12

A55751

RING, LOCKING

RING - locating

1шт.

13

A55752

WASHER

- thrust, input shaft

1шт.

14

A31078

SNAP RING,2.062", Int, #206

Thrust washer 2.062", Int, #206

1шт.

15

A55756

SHIM,.004" Thk

Bearing cup .004" Thk

1шт.

15

A55757

SHIM,.007" Thk

Bearing cup .007" Thk

1шт.

15

A55758

SHIM,.010" Thk

Bearing cup .010" Thk

1шт.

16

A55800

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

"O" RING - bearing cap

1шт.

17

A55754

RING

- oil control, input shaft

1шт.

18

A55755

OIL SEAL

SEAL - oil, P. T. O. shaft

1шт.

19

L30201

CAP

ASSY. - bearing, Includes: Ref. 20

1шт.

20

221-1849

PLUG

- pipe, 1/8" hex. socket hd.

2шт.

21

A55801

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

"O" RING - pilot, bearing cap

1шт.

22

137-20

BOLT - 7/16" x 1-1/4" N.C. hex. hd.

4шт.

23

92-7

LOCK WASHER,7/16"

4шт.

L10527

TRANSMISSION ASSY. - complete (Transmission S/N 96617E and after), PTO & pump drive, Includes: Ref. 27 - 48

1шт.

L10508

TRANSMISSION ASSY. - complete (Transmission S/N 7291E to Transmission S/N 96617E), PTO & pump drive, Includes: Ref. 27 - 48

1шт.

A55155

TRANSMISISON ASSY. - complete (Prior Transmission S/N 7291E), PTO & pump drive, Includes: Ref. 27 - 48

1шт.

27

A55861

SHAFT - P.T.O. and pump drive, transmission

1шт.

28

A55862

RING - snap, drive gear, transmission PTO & pump drive

2шт.

29

A55858

GEAR -transmission PTO & pump drive

3шт.

30

A17965

RING

- snap, bearing retainingr, transmission PTO & pump drive

1шт.

31

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - shaft, transmission PTO & pump drive

1шт.

32

L30014

OIL SEAL

- oil, output flange, transmission PTO & pump drive

1шт.

33

A17939

FLANGE

- output, transmission PTO & pump drive

1шт.

34

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - flange, transmission PTO & pump drive

1шт.

35

A17938

WASHER

- flange, transmission PTO & pump drive

1шт.

36

A55863

LOCK NUT

- flange, transmission PTO & pump drive

1шт.

37

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - drain hose, transmission PTO & pump drive

1шт.

38

A55856

HOUSING -transmission PTO & pump drive

1шт.

39

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- drive gear, transmission PTO & pump

4шт.

40

A55857

HUB - driven gear transmission PTO & pump

1шт.

41

A55860

HUB - driven gear, implement pump, transmission PTO

1шт.

42

A55859

RING - snap, bearing to housing, transmission PTO & pump drive

2шт.

43

A18019

GASKET

- pump mtg., transmission PTO & drive

1шт.

44

A17373

PUMP

ASSY. - (Repair, F. 71B), transmission PTO & pump drive

1шт.

45

A18018

STUD - pump mtg., transmission PTO & drive

6шт.

46

92-6

LOCK WASHER,3/8"

transmission PTO & pump drive 3/8"

6шт.

47

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex., transmission PTO & pump drive

6шт.

48

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Housing mounting, transmission PTO & pump drive Hex, 7/16"-14 x 1 1/4", G5, Full Thd

6шт.
