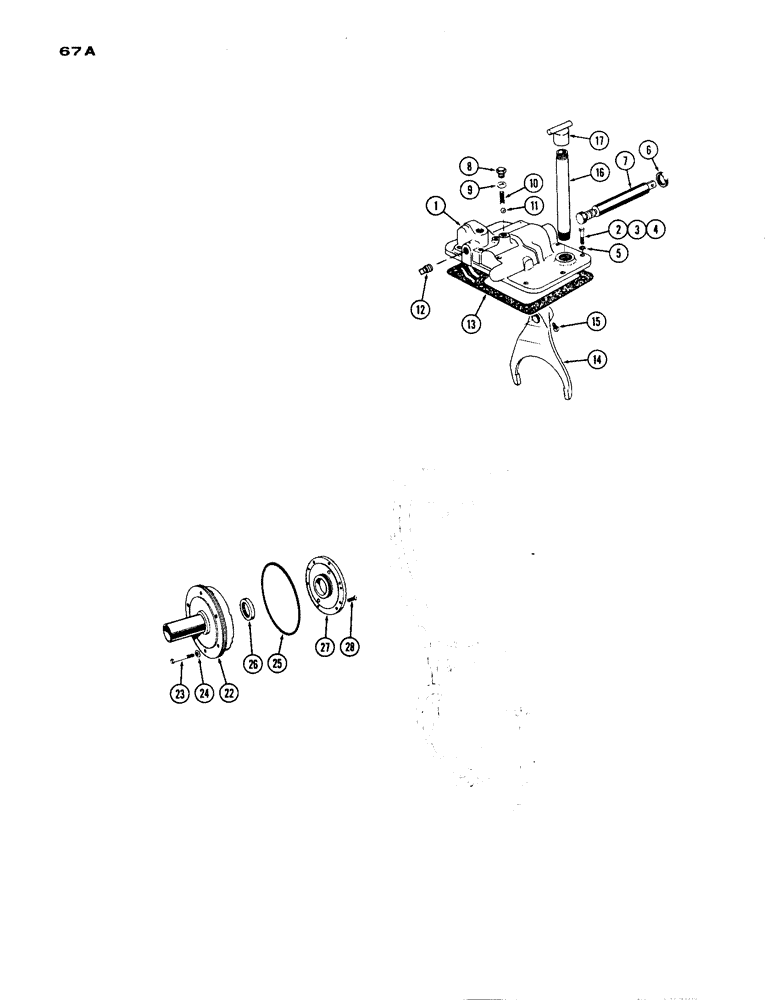

Запчасти Case IH 1200 (067A) - FORWARD AND REVERSE SHIFT COVER (06) - POWER TRAIN

L10527

TRANSMISSION ASSY. - complete (Trans. S/N 96617E and after), Includes: Ref. 1 - 15

1шт.

L10508

TRANSMISSION ASSY. - complete (Transmission S/N 7291E to Transmission S/N 96617E), Includes: Ref. 1 - 15

1шт.

A55155

TRANSMISSION ASSY. - complt. (Prior Trans. S/N 7291E), Includes: Ref. 1 - 15

1шт.

1

L30023

COVER - control, frwd. & rev. (Trans. S/N 7291E & after)

1шт.

1

A55866

COVER - control, frwd. & rev. (Prior Trans. S/N 7291E)

1шт.

2

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

7шт.

3

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

- 7/16" x 1-1/2" N.C. hex. hd.

2шт.

4

13-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

- 7/16" x 3" N.C. hex

3шт.

5

92-7

LOCK WASHER,7/16"

12шт.

6

A55855

OIL SEAL

- oil, frwd. & reverse shift rail

1шт.

7

A55850

RAIL - frwd. & reverse shift

1шт.

8

A55852

PLUG - mesh lock spring

1шт.

9

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - plug

1шт.

10

A55853

SPRING - mesh lock, shift rail

1шт.

11

211-12

BALL,7/16 Dia

- mesh lock, shift rail (7/16" dia.)

1шт.

12

221-664

PLUG,Hex Hd, 1/2"-14

- pipe, 1/2" hex. hd.

1шт.

13

A55875

GASKET

- control cover

1шт.

14

A55851

FORK - shift, forward & reverse

1шт.

15

23095

HYDRAULIC HOSE

SCREW - lock, shift fork

1шт.

16

221-1252

PIPE - filler, 1" P.T. x 8-1/2" nipple

1шт.

17

A19631

CAP - filler, transmission

1шт.

L10527

TRANSMISSION ASSY. - complete (Transmission S/N 96617E and after), seal retainer, Includes: Ref. 22 - 28

1шт.

L10508

TRANSMISSION ASSY. - complete (Transmission S/N 7219E to Transmission S/N 96617E), seal retainer, Includes: Ref. 22 - 28

1шт.

A55155

TRANSMISSION ASSY. - complete (Prior Transmission S/N 7291E), seal retainer, Includes: Ref. 22 - 28

1шт.

22

A55831

HOUSING

- seal support, transmission retainer

1шт.

23

A55841

SCREW - support housing, transmission seal retainer

6шт.

24

A55842

WASHER

- sealing, housing screw, transmission retainer

6шт.

25

A55840

O-RING,0.139" Thk x 9.984" ID, -274, Cl 5, 75 Duro

"O" RING - support housing, transmission seal retainer

1шт.

26

A55832

OIL SEAL

SEAL - oil, support housing, transmission seal retainer

1шт.

27

A55837

ADAPTER - seal housing, transmission retainer

1шт.

28

171-209

SCREW - 1/4" x 1" N.C. Phillips flat hd., transmission seal retainer

2шт.
