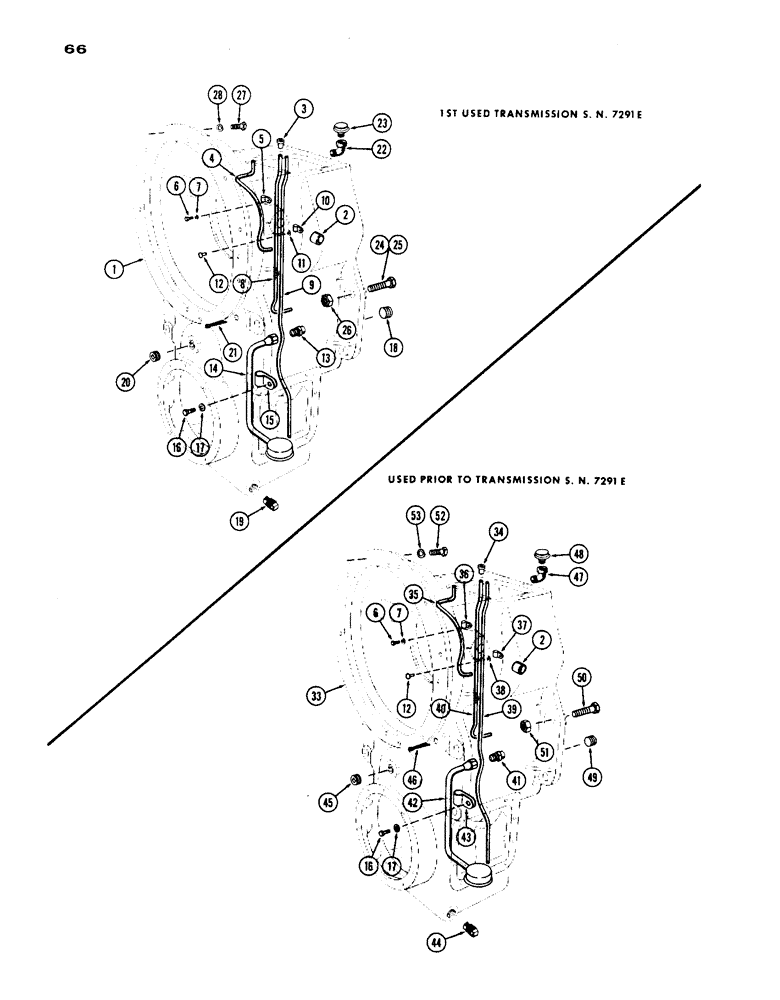

Запчасти Case IH 1200 (066) - TRANSMISSION CASE AND OIL TUBES, FIRST USED TRANSMISSION SERIAL NUMBER 7291E (06) - POWER TRAIN

L10508

TRANSMISSION ASSY. - complete (Trans. S/N 7291E to Transmission S/N 96617E), Includes: Ref. 1 - 18

1шт.

L10527

TRANSMISSION ASSY. - complete (Transmission S/N 96617E and after), Includes: Ref. 1 - 18

1шт.

1

L30211

CASE ASSY. - transmission

1шт.

2

A55732

WASHER

BUSHING - clutch pedal shaft

4шт.

3

A55734

SLEEVE

- lubrication tube

3шт.

4

A55738

TUBE - lube, reverse idler

1шт.

5

A55739

CLIP - reverse idler tube

1шт.

6

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

A55737

TUBE - lubrication, main shaft

1шт.

9

A55733

TUBE - lubrication, output shaft

1шт.

10

A55735

CLIP - lubrication tube

1шт.

11

A55736

WASHER - tube clip

1шт.

12

45-522

RIVET - button head, 5/16" x 1-3/8" long

1шт.

13

A56141

X

CONNECTOR - suction tube

1шт.

14

L30213

TUBE - suction tube

1шт.

15

A55741

CLAMP,1", 1/2" Bolt

CLIP - suction tube

1шт.

16

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

1шт.

17

92-7

LOCK WASHER,7/16"

1шт.

18

221-1843

PLUG

- pipe, 3/8" hex., socket hd.

2шт.

19

221-679

PLUG

- magnetic drain, 1" sq. hd.

1шт.

20

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, 3/4 hex. socket hd.

1шт.

21

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , Extended prong 1/4" x 1 1/2"

1шт.

22

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

- 90 deg. street x 3/8" P.T.

1шт.

23

A17947

BREATHER

ASSY. - transmission oil

1шт.

24

113-800

BOLT - hex., 7/8" x 3-3/4" N.C. (Grade 8. Z.P.) (used Trans. S/N 96617E and after)

4шт.

25

13-1468

BOLT,Hex, 7/8" - 9 x 4-1/4", Gr 5

- hex., 7/8" x 4-1/4" N.C. (Used Prior Transmission S/N 96617E)

4шт.

26

131-18

TUBE NUT,7/8"-9, GB

NUT - lock, 7/8" N.C., hex.

4шт.

27

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

12шт.

28

92-7

LOCK WASHER,7/16"

12шт.

A55155

TRANSMISSION ASSY. - cmplt. (Prior Transmission S/N 7291E), Includes: Ref. 33 - 49

1шт.

33

A55730

CASE - transmission case & oil tubes used prior to trans s/n 7291E

1шт.

34

A55734

SLEEVE

- lubrication tube, transmission case & oil tubes used prior to trans s/n 7291E

3шт.

35

A55738

TUBE - lubrication, reverse idler, transmission case & oil tubes used prior to trans s/n 7291E

1шт.

36

A55739

CLIP - reversie idler tube, transmission case & oil tubes used prior to trans s/n 7291E

1шт.

37

A55735

CLIP - lubrication tube, transmission case & oil tubes used prior to trans s/n 7291E

1шт.

38

A55736

WASHER - tube clip, transmission case & oil tubes used prior to trans s/n 7291E

1шт.

39

A55733

TUBE - lubrication, output shaft, transmission case & oil tubes used prior to trans s/n 7291E

1шт.

40

A55737

TUBE - lubrication, main shaft, transmission case & oil tubes used prior to trans s/n 7291E

1шт.

41

A56141

X

CONNECTOR - suction tube, transmission case & oil tubes used prior to trans s/n 7291E

1шт.

42

A55740

TUBE - suction, transmission case & oil tubes used prior to trans s/n 7291E

1шт.

43

A55741

CLAMP,1", 1/2" Bolt

CLIP - suction tube, transmission case & oil tubes used prior to trans s/n 7291E

1шт.

44

221-679

PLUG

- magnetic drain, 1" P.T., transmission case & oil tubes used prior to trans s/n 7291E

1шт.

45

221-845

PLUG,Hex Soc, 3/4"-14

- oil level, 3/4" socket hd., transmission case & oil tubes used prior to trans s/n 7291E

1шт.

46

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , Extended prong, transmission case & oil tubes used prior to trans s/n 7291E 1/4" x 1 1/2"

1шт.

47

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

- street 90 deg. x 3/8" P.T., transmission case & oil tubes used prior to trans s/n 7291E

1шт.

48

A17947

BREATHER

- transmission case & oil tubes used prior to trans s/n 7291E

1шт.

49

221-1843

PLUG

- pipe, 3/8" hex. socket hd., transmission case & oil tubes used prior to trans s/n 7291E

2шт.

50

13-1468

BOLT,Hex, 7/8" - 9 x 4-1/4", Gr 5

- 7/8" x 4-1/4" N.C. hex. hd., transmission case & oil tubes used prior to trans s/n 7291E

4шт.

51

131-18

TUBE NUT,7/8"-9, GB

NUT - lock, 7/8" N.C. hex., transmission case & oil tubes used prior to trans s/n 7291E

4шт.

52

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

Flywheel hsg, transmission case & oil tubes used prior to trans S/N 7291E Hex, 7/16"-14 x 1 3/4", G5

12шт.

53

92-7

LOCK WASHER,7/16"

transmission case & oil tubes used prior to trans s/n 7291E 7/16"

12шт.
