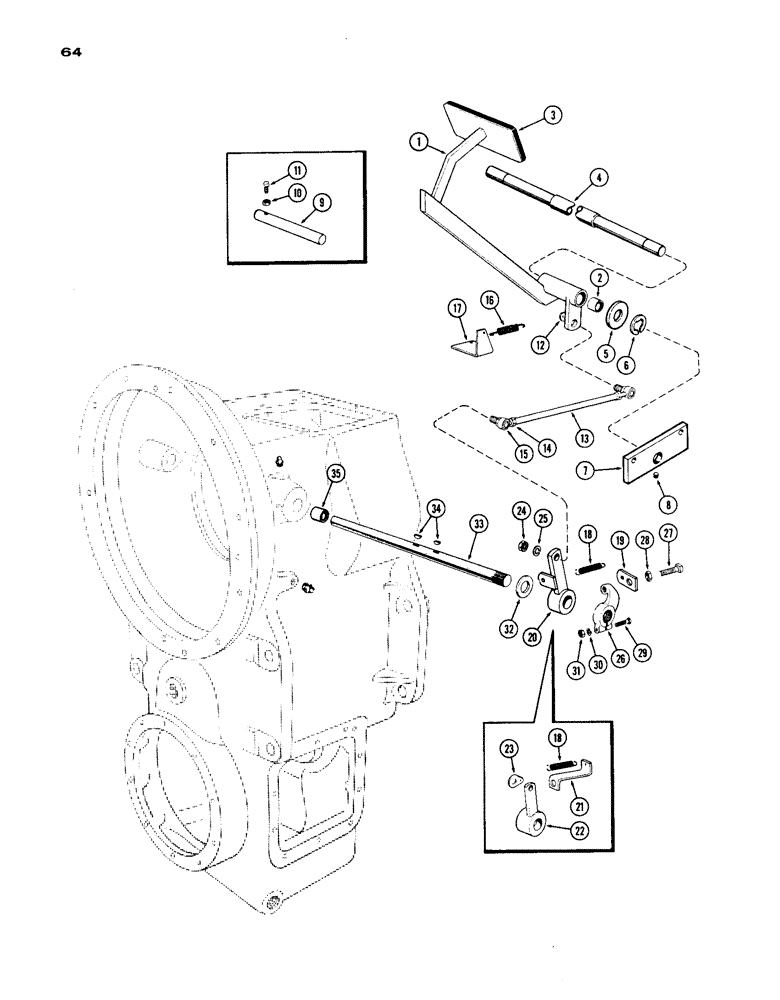

Запчасти Case IH 1200 (064) - CLUTCH PEDAL AND RELEASE (06) - POWER TRAIN

1

A55507

PEDAL - clutch, Includes: Ref. 2

1шт.

2

A30845

BUSHING

- pedal

2шт.

3

F9197

PAD

- foot pedal

1шт.

4

L10530

SHAFT - clutch & brake pedal (Trans. S/N 96617E and after)

1шт.

5

192-111

WASHER,3/8"

- plain, 1-1/16" I.D. x 2-1/2" O.D. x 1/64" TH, (Transmission S/N 96617E and after

2шт.

6

D21476

RING - retaining, clutch pedal (Trans. S/N 96617E and after)

2шт.

7

L10516

SUPPORT - clutch and brake pedal (Trans. S/N 96617E and after

2шт.

8

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16" x 1/2" hex. socket hd., cup pt.

2шт.

9

A55505

SHAFT - pivot, clutch pedal (Prior Trans. S/N 96617E)

1шт.

10

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex.

1шт.

11

A7045

SCREW - pedal shaft (Prior Trans. S/N 96617E)

1шт.

12

A26656

CLIP - return spring

1шт.

13

A55722

LINK - pedal to clutch lever

1шт.

14

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex.

2шт.

15

A55558

BALL JOINT

END - link rod

2шт.

16

A27473

SPRING

- return, clutch pedal (used prior Tractor S.N. 9804309) (5-1/4" lg., free length)

1шт.

16

L10873

SPRING

- clutch pedal return (used Tractor S/N 9804309 and after) (6-13/32" lg., free length)

1шт.

17

A56106

BRACKET - return spring

1шт.

18

A31080

VALVE SPRING

SPRING - return, clutch lever

1шт.

19

L10876

CLIP - adjusting lever spring (used Tractor S.N. 9804309 and after)

1шт.

20

L10874

LEVER - clutch release shaft (used Tractor S.N. 9804309 and after)

1шт.

21

A56107

BRACKET - return spring (Prior Trac. S.N. 9804309)

1шт.

22

A55696

LEVER - clutch release shaft (Prior Trac. S.N. 9804309)

1шт.

23

A56108

CLIP - spring to lever (Prior Trac. S.N. 9804309)

1шт.

24

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex

2шт.

25

92-8

LOCK WASHER,1/2"

2шт.

26

L30037

LEVER

ASSY. - adjusting, pedal, Includes: Ref. 27- 31

1шт.

27

A56139

SCREW - set, adjusting lever

1шт.

28

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

29

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8" x 1-3/4" N.F. hex. hd.

1шт.

30

92-6

LOCK WASHER,3/8"

1шт.

31

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

32

A56140

WASHER - clutch pedal shaft

1шт.

33

A55845

SHAFT - clutch release

1шт.

34

126-19

WOODRUFF KEY,#11, 3/16" x 7/8"

KEY - yoke to shaft

2шт.

35

A55732

WASHER

BUSHING - shaft

4шт.
