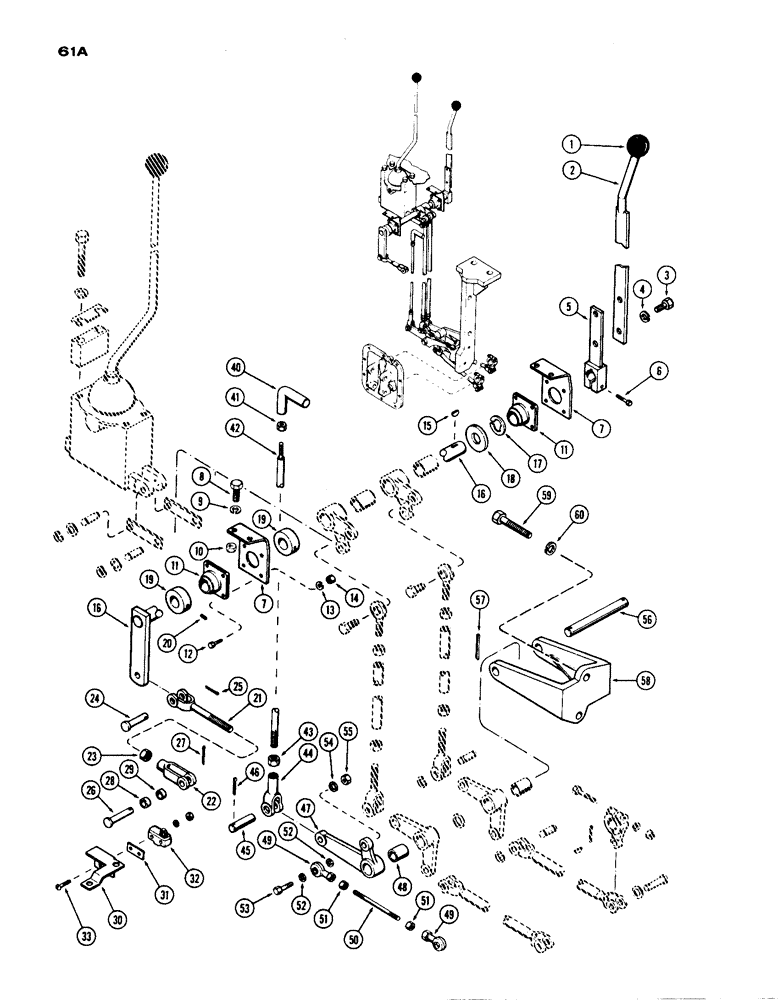

Запчасти Case IH 1200 (061A) - FORWARD AND REVERSE SHIFT LINKAGE, FIRST USED TRACTOR SERIAL NUMBER 9801866 (06) - POWER TRAIN

1

A18852

KNOB

- hand lever

1шт.

2

L10531

LEVER - hand, frwd. & reverse, upper

1шт.

3

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

L10065

LEVER - frwd. & reverse, lower

1шт.

6

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

7

L10536

BRACKET - shaft, frwd. & reverse

2шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

11

A55553

BEARING - frwd, & reverse shaft

2шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

15

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

KEY - #7 Woodruff

1шт.

16

L10533

SHAFT - forward & reverse

1шт.

17

D21476

RING - retaining, bellcrank

2шт.

18

195-111

WASHER,1"

- plain, 1-1/16" x 2-1/2" x 11/64"

2шт.

19

L10654

COLLAR ASSY. - frwd. & reverse shaft, Includes: Ref. 20

2шт.

20

84-44

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - set, 1/4 x 1/4" N.C. hex. socket hd. cup pt.

1шт.

21

L10537

LINK - frwd. & reverse connecting

1шт.

22

A56444

YOKE - connecting, Serial Range: link-spool

1шт.

23

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

24

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2" dia.

1шт.

25

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

26

A56471

PIN - link, Serial Range: yoke-spool

1шт.

27

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

28

A56473

ROLLER - frwd. & reverse shifting pin

1шт.

29

A56472

SPACER

- shifting pin roller

1шт.

30

A56470

BRACKET - neutral safety switch

1шт.

31

A56474

SPACER - safety switch

1шт.

32

A19513

SWITCH

ASSY - neutral safety

1шт.

33

173-68

SCREW,Sl Rnd Hd, #6 - 32 x 1 1/4"

- mach. #6 x 1-1/4" N.C. rd. hd.

2шт.

40

A55557

HANDLE - shift rod, range, hi-low shift linkage1st used tractor s/n 9801866

1шт.

41

87016560

JAM NUT,Jam, 3/8"-16, G5

Hi-low shift linkage 1st used tractor S/N 9801866 Jam, 3/8"-16, G5

1шт.

42

L10538

ROD - range, hi-low shift linkage1st used tractor s/n 9801866

1шт.

43

129-165

JAM NUT,Jam, 1/2"-20, G5

Hi-low shift linkage 1st used tractor S/N 9801866 Jam, 1/2"-20, G5

1шт.

44

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - shift rod, 1/2", hi-low shift linkage1st used tractor s/n 9801866

1шт.

45

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2" dia., hi-low shift linkage1st used tractor s/n 9801866

1шт.

46

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Hi-low shift linkage 1st used tractor s/n 9801866 1/8" x 3/4"

1шт.

47

L10539

BELLCRANK ASSY. - hi-low shift linkage1st used tractor s/n 9801866, Includes: Ref. 48

1шт.

48

A55533

BUSHING

- bellcrank, hi-low shift linkage1st used tractor s/n 9801866

1шт.

49

A32398

BALL JOINT

END - shift link rod, hi-low shift linkage1st used tractor s/n 9801866

2шт.

50

A55661

ROD - link, hi-low shift linkage1st used tractor s/n 9801866

1шт.

51

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam, 3/8" N.F. (Z.P.), hi-low shift linkage1st used tractor s/n 9801866

2шт.

52

A32395

WASHER

SPACER - rod end bolt, hi-low shift linkage1st used tractor s/n 9801866

4шт.

53

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Hi-low shift linkage1st used tractor S/N 9801866 Hex, 3/8"-16 x 1 3/4", G5

2шт.

54

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Hi-low shift linkage 1st used tractor S/N 9801866 3/8"

2шт.

55

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Hi-low shift linkage 1st used tractor S/N 9801866 3/8"-16, G5

2шт.

56

L10559

SHAFT

- mtg., bellcrank, hi-low shift linkage1st used tractor s/n 9801866

1шт.

57

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), , Hi-low shift linkage 1st used tractor S/N 9801866 3/16" x 1 1/4"

2шт.

58

A55598

BRACKET - mtg., bellcrank shaft, hi-low shift linkage1st used tractor s/n 9801866

1шт.

59

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex., 3/8" x 1-3/4" N.C., hi-low shift linkage1st used tractor s/n 9801866

2шт.

60

92-6

LOCK WASHER,3/8"

hi-low shift linkage 1st used tractor s/n 9801866 3/8"

2шт.
