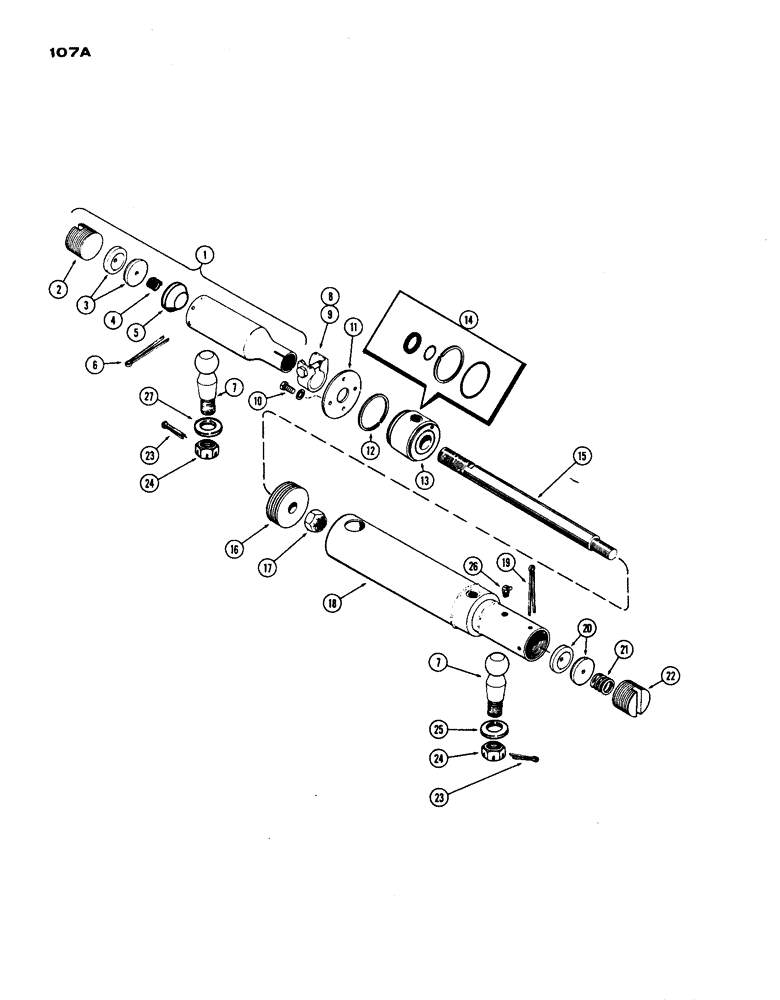

Запчасти Case IH 1200 (107A) - STEERING CYLINDER (05) - STEERING

A55159

CYLINDER ASSY. - rear steering, Includes: Ref. 1 - 22

1шт.

1

A56208

SOCKET/RECEPTACLE

SOCKET ASSY. - rear cylinder, Includes: Ref. 2 - 5

1шт.

2

A55956

PLUG - adjusting, socket assy.

1шт.

3

A55957

SEAT

- socket ball

2шт.

4

A56210

SPRING - socket

1шт.

5

A56209

SEAT - socket spring

1шт.

6

132-104

COTTER PIN,3/16" x 3"

Pin, Split (Cotter), 3/16" x 3"

1шт.

7

A55889

STUD

- ball, socket & cylinder

2шт.

8

G45175

CLAMP

ASSY. - socket assy., Includes: Ref. 9

1шт.

9

16-836

X

BOLT - 1/2" x 2-1/4" N.F. hex.

1шт.

10

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

11

A56207

COVER - end, cylinder

1шт.

12

A56206

RING - retaining, gland

1шт.

13

A56200

GLAND ASSY. - rear cylinder

1шт.

14

A25108

KIT - seal, cylinder gland

1шт.

15

A55887

ROD - piston, cylinder

1шт.

16

L30001

PISTON ASSY. - strg. cyl. (w/seal ring)

1шт.

17

131-152

HARDWARE

NUT - lock, 3/4" N.C., hex. jam (Gripco)

1шт.

18

NSS

NOT SOLD SEPARAT

HEAD & BODY ASSY. - strg. cylinder

1шт.

19

132-159

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

20

A55957

SEAT

- socket ball

2шт.

21

A55958

SPRING - ball seat

1шт.

22

A55959

PLUG - adjusting, socket ball

1шт.

23

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

24

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, SLOTTED, , Castle 7/8"-14, G5, Thk

2шт.

25

195-49

WASHER

- 7/8" SAE plain

1шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

2шт.

27

A12071

WASHER

- ball stud, axle end

1шт.
