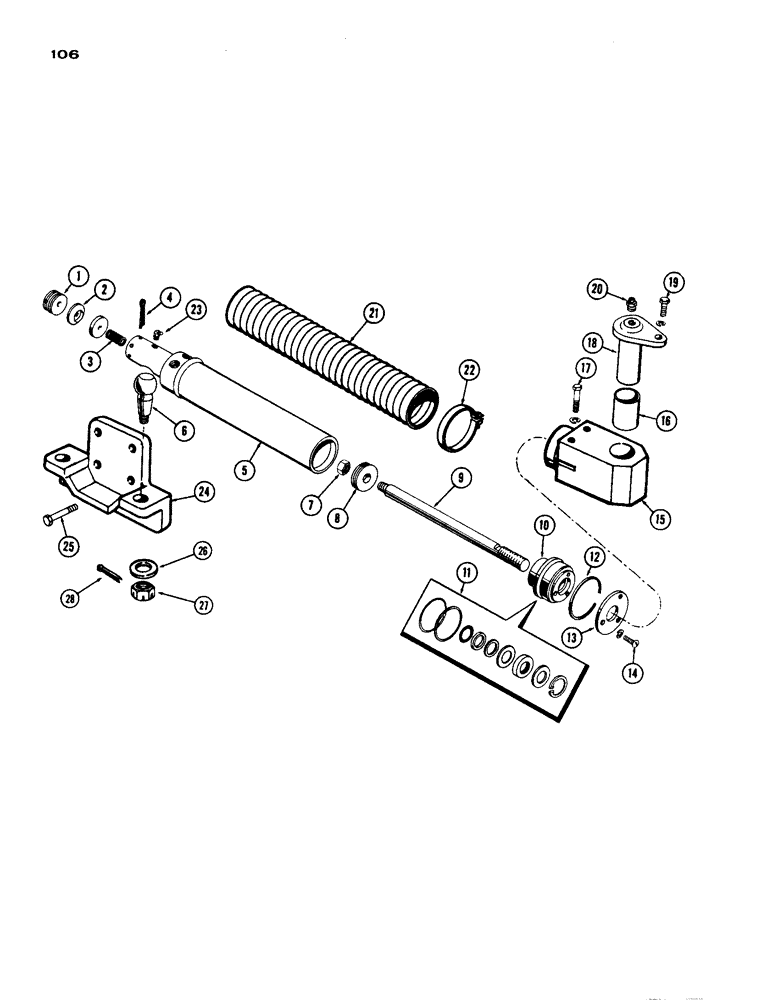

Запчасти Case IH 1200 (106) - STEERING CYLINDER (05) - STEERING

A55158

CYLINDER BLOCK

CYLINDER ASSY. - front steering, Includes: Ref. 1 - 13 and 17

2шт.

1

A35890

PLUG

- adjusting, cylinder

1шт.

2

A35889

SEAT

- ball, cylinder

2шт.

3

A35888

VALVE SPRING

SPRING - ball socket

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - steering cylinder (Order A55158)

1шт.

6

A35870

STUD

- ball, cylinder

1шт.

7

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock, 3/8" N.F. hex., Gripco

1шт.

8

A56226

PISTON ASSY.

PISTON - cylinder, w/ring

1шт.

9

A55955

ROD

- piston, cylinder

1шт.

10

A24973

GLAND

ASSY. - cylinder, w/seals

1шт.

11

A36396

SEAL KIT

KIT - seal, cyl. gland

1шт.

12

A35885

RING

- retaining, gland

1шт.

13

A35887

PLATE ASSY.

PLATE - cylinder end

1шт.

17

173-227

SCREW,Sl Rnd Hd, #10 - 24 x 1/2", SST

- machine, #10 x 1/2" rd.

3шт.

15

L11407

YOKE ASSY. - pivot, frt. cylinder

2шт.

16

A55220

BUSHING - cylinder pivot

2шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

18

A55210

PIN - cylinder pivot

2шт.

19

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex.

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

2шт.

21

A56534

BOOT - dust, strg. cylinder

2шт.

22

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- boot #36, 1.81/2.75 Type F Worm

2шт.

23

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

24

A55206

BRACKET - anchor, strg. cylinder

1шт.

25

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

26

195-41

WASHER,5/8"

2шт.

27

25-2310

NUT

- castle, 5/8" N.F., hex.

2шт.

28

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

4

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.
