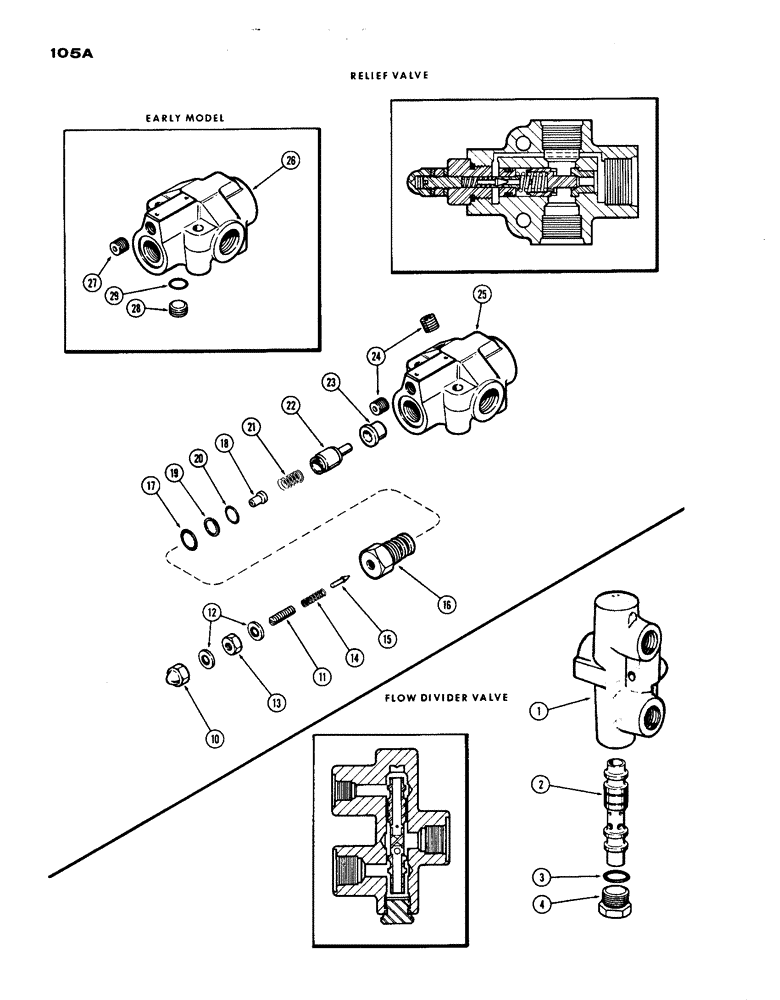

Запчасти Case IH 1200 (105A) - DIVIDER VALVE (05) - STEERING

L10092

VALVE

ASSY. - flow divider, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Orderrr L10092)

1шт.

2

A40266

SPOOL - divider

1шт.

3

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - plug (exhaust stock: then order 218-5006)

1шт.

4

A55954

PLUG

- spool end (exh. stock: then order L30425)

1шт.

4

L30425

PLUG

- spool end

1шт.

L10091

VALVE ASSY. - relief valve, Includes: Ref. 10 - 29

1шт.

10

129-514

CROWN NUT,Low, 5/16" - 24

- acorn, 5/16" N.F. hex., relief valve

1шт.

11

82-514

SET SCREW

SCREW - set, 5/16" N.F. x 7/8" sltd. headless, cup pt., relief valve

1шт.

12

D26270

WASHER, SEALING

SEAL - valve nut, relief

2шт.

13

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam, 5/16" N.F., hex., relief valve

1шт.

14

D26268

SPRING

- pilot, relief valve

1шт.

15

D26267

PLUNGER

- pilot, relief valve

1шт.

16

D26262

CAP

- valve, relief

1шт.

18

D26266

SEAT

- pilot, relief valve

1шт.

19

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- back-up, relief valve

1шт.

20

L30444

O-RING,0.521" ID x 0.661" OD

"O" RING - pilot seat, relief valve

1шт.

21

D26261

VALVE SPRING

SPRING - poppet, relief valve

1шт.

22

L30011

VALVE POPPET

POPPET ASSY. - valve (Exh. stock, then order L30687), relief

1шт.

22

L30687

SPOOL

POPPET ASSY. - valve, relief

1шт.

23

D26259

SEAT

- poppet, relief valve

1шт.

24

221-1849

PLUG

- pipe, 1/8" hex. socket hd., relief valve

2шт.

25

NSS

NOT SOLD SEPARAT

BODY - valve (Order L10091) (Late Model), relief

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - valve (Oroder L10091) (Early Model), relief

1шт.

27

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, 1/8" hex. socket hd., relief valve

1шт.

28

9672438

PLUG,7/16" - 20 ORB

Assy, 1/4" tube (w/early model only), Relief valve, Incl. Ref. 29 Hex Hd, 7/16"-20 ORB

1шт.

29

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - plug, 23/64 x 1/2 x 5/64", relief valve

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - plug, 41/64 x 25/32 x 5/64"

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - cap, 41/64 x 13/16 x 5/64", relief valve

1шт.
