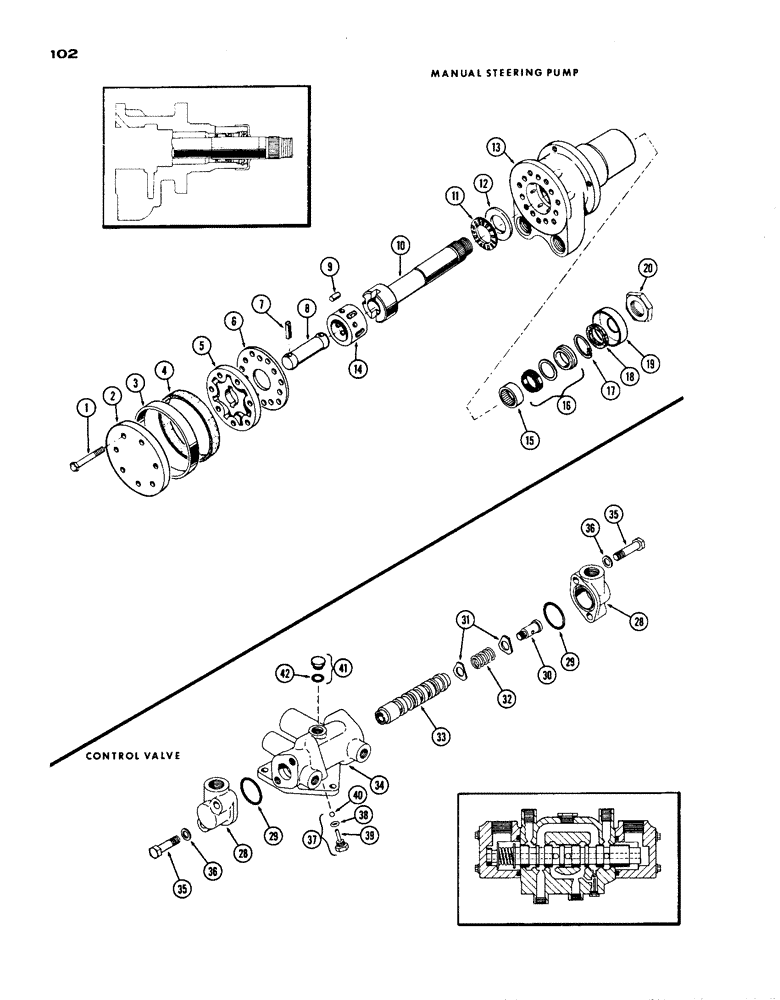

Запчасти Case IH 1200 (102) - MANUAL PUMP (05) - STEERING

A35579

PUMP

ASSY. - manual steering, Includes: Ref. 1 - 20

1шт.

1

F19642

SCREW - end cover

7шт.

2

F19641

COVER - end, pump

1шт.

3

A35787

RETAINER

- seal

1шт.

4

84286702

RUBBER SEAL

- rotor

1шт.

5

A35786

STATOR

- rotor set

1шт.

6

F19637

SPACER

PLATE - spacer

1шт.

7

F19636

PIN

- link

2шт.

8

F19635

LINK

- rotor drive

1шт.

9

F19631

PIN

- commutator

1шт.

10

A40735

SHAFT

- coupling

1шт.

11

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust

1шт.

12

F19634

BEARING WASHER

RACE - thrust bearing

1шт.

13

F82945

BODY

ASSY. - manual pump, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump

1шт.

15

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING - needle, cplg. shaft

1шт.

16

A40624

SEAL

KIT - pump (incl. packing & backup, washer and spacer washer)

1шт.

17

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal

1шт.

18

F19645

BUSHING

- water seal (Felt)

1шт.

19

F19644

SEAL

- water

1шт.

20

F19646

LOCK NUT,13/16"-20, Thin

NUT - coupling shaft, Replaces F10646

1шт.

L11389

VALVE ASSY. - control, Includes: Ref. 28 - 42

1шт.

28

F19624

CAP

- end, control valve

2шт.

29

F21003

O-RING,1.237" ID x 1.443" OD

"O" RING - end cap, control valve

2шт.

30

F19623

SCREW,3/8" - 24 x 15/16"

- centering, control valve

1шт.

31

F19619

WASHER

- centering, control valve

2шт.

32

L30400

SPRING - centering, control valve

1шт.

33

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order L11389), control

1шт.

34

NSS

NOT SOLD SEPARAT

BODY - valve (Order L11389), control

1шт.

35

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT - 3/8" x 2" N.C., hex., control valve

4шт.

36

F19626

WASHER - end cap bolt, control valve

4шт.

37

F82943

VALVE

PLUG ASSY. - relief, w/pin, control valve, Includes: Ref. 38 and 39

1шт.

38

F19630

O-RING

"O" RING - relief plug, control valve

1шт.

39

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , Control valve 1/8" x 15/16", Slotted

1шт.

40

211-7

BALL,1/4" Dia

- relief plug, control valve 1/4" Dia

1шт.

41

F83122

PLUG

ASSY. - top opening, control valve, Includes: Ref. 42

1шт.

42

F19628

O-RING

"O" RING - opening plug, control valve

1шт.
