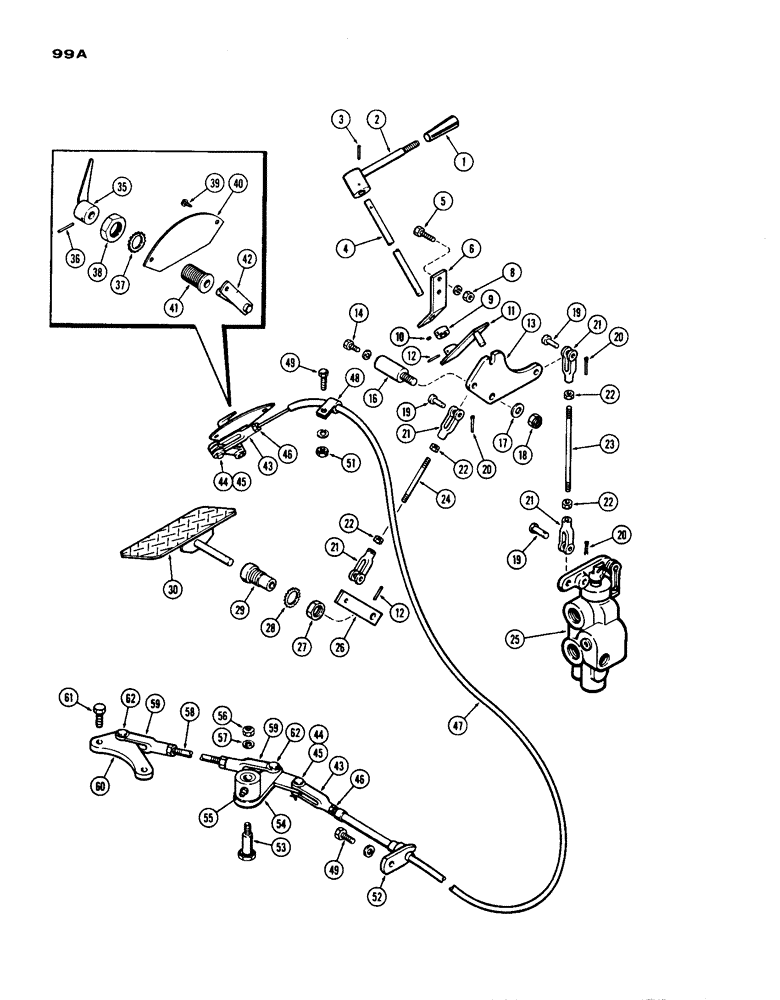

Запчасти Case IH 1200 (099A) - REAR STEERING CONTROL LINKAGE, FIRST USED TRACTOR SERIAL NUMBER 9801866 (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
NLS
NO LONGER SERVICED
- hand control lever
1шт.
2
L10623
LEVER - hand, rear steering
1шт.
3
138-98
LOCK PIN,3/16" x 1 1/4", Slotted
PIN, 3/16" x 1 1/4", Slotted
1шт.
4
L10626
SHAFT - rear steering lever
1шт.
5
13-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
6
L10612
BRACKET ASSY. - hand lever
1шт.
8
25-104
NUT,1/4"-20, G5
2шт.
9
L10627
COLLAR ASSY. - rear steering shaft, Includes: Ref. 10
1шт.
10
83-44
SET SCREW,Hex Soc, 1/4"-20 x 1/4"
SCREW - set, 1/4" x 1/4" N.C., cup pt.
1шт.
11
L10628
ARM - steering, hand control
1шт.
12
138-94
LOCK PIN,3/16" x 7/8", Slotted
PIN, 3/16" x 7/8", Slotted
2шт.
13
L10631
BELLCRANK - rear steering
1шт.
14
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
1шт.
16
L10729
PIVOT - strap bellcrank, (Exh. stock then Order L11761)
1шт.
16
L11761
PIVOT - steering bellcrank
1шт.
17
195-533
WASHER,1/2", SAE
(17/32" x 1-1/16" x .121") 1/2", SAE
1шт.
19
141-3
CLEVIS PIN,5/16" x .940"
PIN, CLEVIS, 5/16" x .940"
4шт.
20
132-25
COTTER PIN,3/32" x 5/8"
PIN - cotter, 3/4" x 5/8" long
4шт.
21
213-3
ADJUSTABLE CLEVIS,5/16"-24
YOKE - clevis, adj. 5/16" N.F. SAE
4шт.
22
25-155
JAM NUT,Jam, 5/16"-24, G5
- jam, 5/16" N.F. hex.
4шт.
23
L10640
ROD - control valve, rear steering
1шт.
24
L10632
ROD - foot control, rear steering
1шт.
25
A55168
VALVE ASSY. - control, rear strg. (Repairs, F. 105)
1шт.
26
L10633
ARM - foot control, rear steering
1шт.
27
25-1516
NUT,Jam, 1"-14, G5
- jam, 1" N.F. hex.
1шт.
28
193-17
LOCK WASHER,Ext Tooth, 1"
WASHER, LOCK, Ext Tooth, 1"
1шт.
29
L10638
BUSHING ASSY. - foot control, w/brg.
1шт.
30
L10634
PEDAL - foot control, rear steering
1шт.
35
A55478
POINTER - dial, indicator, rear steering
1шт.
36
138-41
LOCK PIN,3/32" x 3/4", Slotted
Pin, , rear steering indicator 3/32" x 3/4", Slotted
1шт.
37
193-15
LOCK WASHER,Ext Tooth, 3/4"
WASHER, LOCK, Ext Tooth, 3/4", Rear steering indicator
1шт.
38
25-1512
JAM NUT,Jam, 3/4"-10, G5
- jam, 3/4" N.F. hex., rear steering indicator
1шт.
39
168-68
SCREW - drive, #6 x 3/8", rear steering indicator
2шт.
40
L10642
DIAL - rear steering indicator
1шт.
41
L10641
SUPPORT - indicator pointer, rear steering
1шт.
42
L10643
ARM - indicator pointer, rear steering
1шт.
43
213-1
ADJUSTABLE CLEVIS,#10-32
YOKE - clevis, indicator arm, rear steering
2шт.
44
141-1
CLEVIS PIN,3/16" x .580"
PIN - clevis yoke, rear steering indicator
2шт.
45
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), , Rear steering indicator 1/16" x 1/2"
2шт.
47
A55490
CONTROL
CABLE - control, rear steering indicator
1шт.
48
A27814
X
CLAMP - indicator cable, rear steering
1шт.
49
13-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd
Rear steering indicator Hex, 1/4"-20 x 5/8", G5, Full Thd
2шт.
51
25-104
NUT,1/4"-20, G5
Rear steering indicator 1/4"-20, G5
1шт.
52
A55491
CLIP - cable, rear steering indicator
1шт.
53
A13541
PIN - pivot, rear control, steering indicator
1шт.
54
A55484
LEVER - rear axle indicator, steering indicator
1шт.
55
219-15
LUBE NIPPLE,5/16" NPTF
FITTING - grease, 1/8" str. drive, rear steering indicator
1шт.
56
25-158
JAM NUT,Jam, 1/2"-20, G5
- jam, 1/2" N.F., hex., rear steering indicator
1шт.
57
193-77
LOCK WASHER,Int Tooth, 1/2"
WASHER, LOCK, , Rear steering indicator Int Tooth, 1/2"
1шт.
58
A55488
ROD - lever to axle arm, rear steering indicator
1шт.
59
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE - clevis, rod to lever & arm, rear steering indicator
2шт.
60
A55489
ARM - rear axle indicator, steering indicator
1шт.
61
13-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
Rear steering indicator Hex, 5/8"-11 x 2", G5
2шт.
62
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, , Rear steering indicator 3/8" x 1.060"
2шт.
Выбрано товаров: 56
