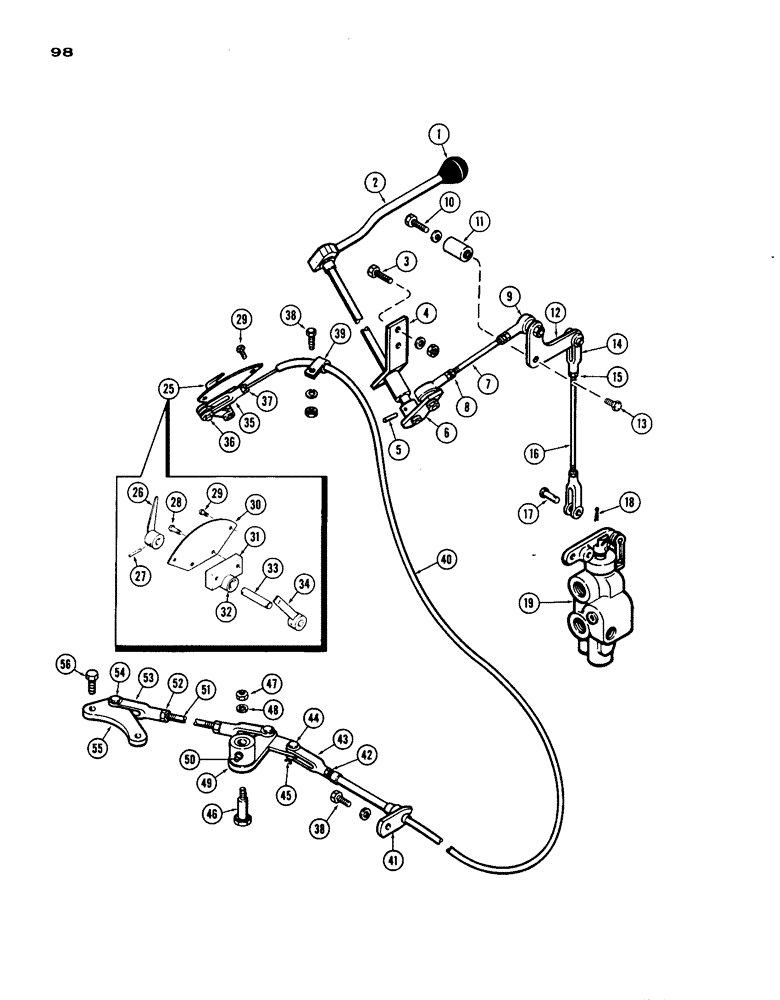

Запчасти Case IH 1200 (098) - REAR STEERING CONTROL LINKAGE, USED PRIOR TO TRACTOR SERIAL NUMBER 9801866 (05) - STEERING

1

A18852

KNOB

- hand lever

1шт.

2

A56510

LEVER & SHAFT - rear steering

1шт.

195-33

WASHER,1/2"

- plain, SAE 1/2"

1шт.

3

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

4

A56513

BRACKET - support, cross shaft

1шт.

5

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

6

A56515

ARM - lever shaft to link rod

1шт.

7

A55291

ROD - arm to bell crank (6-3/4")

1шт.

8

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

9

A55473

END ASSY.

END - swivel, control rod

2шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

11

L10251

BLOCK - pivot, bell crank (Unit S/N 9801866 & after)

1шт.

11

A55462

BLOCK - pivot, bell crank (Prior Unit S/N 9801866)

1шт.

12

A55288

BELLCRANK - control rod

1шт.

13

A9946

BOLT - pivot, bellcrank

1шт.

14

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod, bellcrank to valve

2шт.

15

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

16

A55290

ROD - bellcrank to control valve

1шт.

17

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

2шт.

18

132-25

COTTER PIN,3/32" x 5/8"

PIN - cotter, 3/4" x 5/8"

2шт.

19

A55168

VALVE ASSY - rear strg. (Repairs, F. 105)

1шт.

25

NS

NOT SERVICED

INDICATOR ASSY. - rear steering, used prior to trac s/n 9801866, Includes: Ref. 26 - 34

1шт.

26

A55478

POINTER, rear steering indicator used prior to trac s/n 9801866

1шт.

27

138-41

LOCK PIN,3/32" x 3/4", Slotted

Pin, , rear steering indicator used prior to trac s/n 9801866 3/32" x 3/4", Slotted

1шт.

28

173-99

SCREW,Sl Rnd Hd, #10 - 24 x 5/8"

- #1-24 x 5/8" rd. hd., rear steering indicator used prior to trac s/n 9801866

2шт.

29

168-68

SCREW - drive, #6 x 3/8", rear steering indicator used prior to trac s/n 9801866

2шт.

30

A55474

DIAL - indicator, rear steering used prior to trac s/n 9801866

1шт.

31

A55480

SUPPORT ASSY. - indicator, rear steering used prior to trac s/n 9801866, Includes: Ref. 32

1шт.

32

A9987

BUSHING

- support, rear steering indicator used prior to trac s/n 9801866

1шт.

33

A55483

PIN - arm to pointer, rear steering indicator used prior to trac s/n 9801866

1шт.

34

A55475

ARM - indicator rod, rear steering used prior to trac s/n 9801866

1шт.

35

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - indicator arm to rod, rear steering used prior to trac s/n 9801866

1шт.

36

141-1

CLEVIS PIN,3/16" x .580"

PIN - yoke, rear steering indicator used prior to trac s/n 9801866

1шт.

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Rear steering indicator used prior to trac s/n 9801866 1/16" x 1/2"

1шт.

37

129-27

NUT,Hex, #10 - 32

- hex., rear steering indicator used prior to trac s/n 9801866 #10-32

2шт.

38

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Rear steering indicator used prior to trac S/N 9801866 Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

39

A27814

X

CLAMP - cable, rear steering indicator used prior to trac s/n 9801866

1шт.

40

A55490

CONTROL

CABLE - control, rear steering indicator used prior to trac s/n 9801866

1шт.

41

A55491

CLIP - cable, rear steering indicator used prior to trac s/n 9801866

1шт.

42

129-27

NUT,Hex, #10 - 32

- #10 hex., rear steering indicator used prior to trac s/n 9801866

1шт.

43

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - cable to rear lever, rear steering indicator used prior to trac s/n 9801866

1шт.

44

141-1

CLEVIS PIN,3/16" x .580"

PIN - cable yoke to lever, rear steering indicator used prior to trac s/n 9801866

1шт.

45

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Rear steering indicator used prior to trac s/n 9801866 1/16" x 1/2"

1шт.

46

A13541

PIN - pivot, rear steering indicator used prior to trac s/n 9801866

1шт.

47

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex., rear steering indicator used prior to trac s/n 9801866

1шт.

48

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Rear steering indicator used prior to tractor S/N 9801866 Int Tooth, 1/2"

1шт.

49

A55484

LEVER - rear axle indicator, rear steering used prior to trac s/n 9801866

1шт.

50

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease, 1/8" str. drive, rear steering indicator used prior to trac s/n 9801866

1шт.

51

A55488

ROD - lever to axle arm, rear steering indicator used prior to trac s/n 9801866

1шт.

52

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex., rear steering indicator used prior to trac s/n 9801866

2шт.

53

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod to lever and arm, rear steering indicator used prior to trac s/n 9801866

2шт.

54

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Rear steering indicator used prior to tractor S/N 9801866 3/8" x 1.060"

2шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Rear steering indicator used prior to trac S/N 9801866 3/32" x 5/8"

2шт.

55

A55489

ARM - rear axle indicator, steering used prior to trac s/n 9801866

1шт.

56

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Rear steering indicator used prior to tractor S/N 9801866 Hex, 5/8"-11 x 2", G5

2шт.
