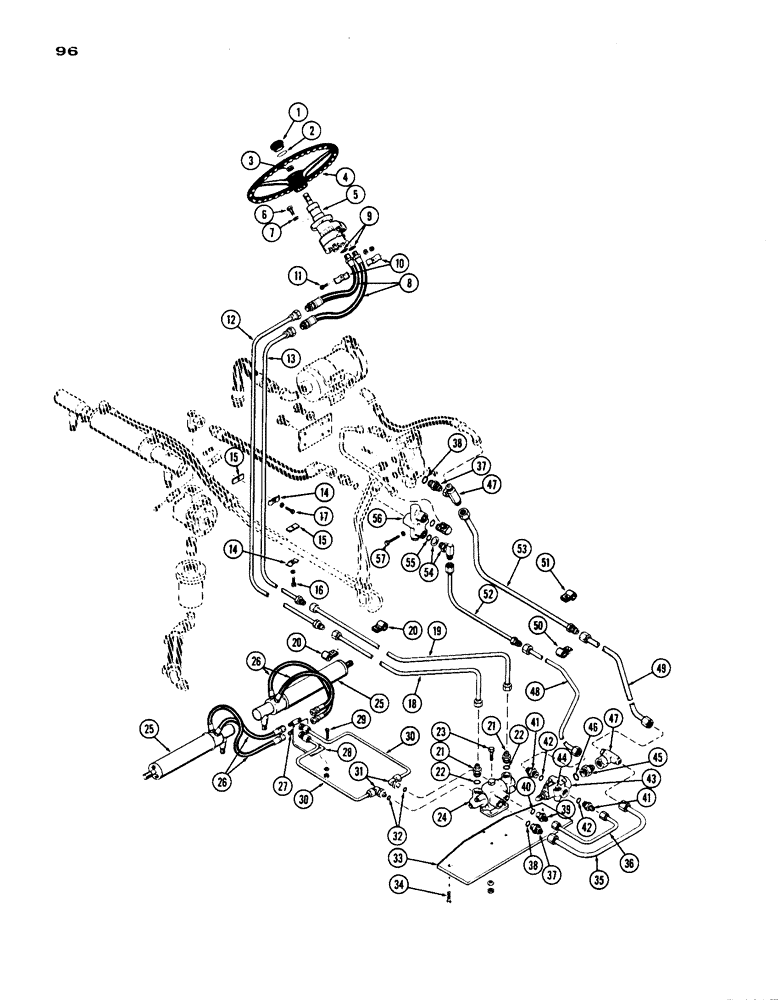

Запчасти Case IH 1200 (096) - FRONT POWER STEERING (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
A35603
CAP
MEDALLION- steering wheel
1шт.
2
A28318
O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro
"O" RING - medallion
1шт.
3
F19646
LOCK NUT,13/16"-20, Thin
NUT - strg. wheel to pump shaft
1шт.
4
A35602
STEERING WHEEL
WHEEL - steering
1шт.
5
A35579
PUMP
- hand, strg. manual (Repair, P. 103)
1шт.
6
164-540
HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"
SCREW - 5/16" x 3/4" N.C. button hd.
4шт.
7
193-29
LOCK WASHER,Int Tooth, 5/16"
WASHER, LOCK, Int Tooth, 5/16"
4шт.
8
A55304
HOSE - pump to control valve tube, Includes: Ref. 9
2шт.
10
R15257
CLAMP
- hose, pump
2шт.
11
13-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
- 5/16" x 1-1/2" N.C. hex
1шт.
12
L10104
TUBE - pump to valve, R.H. upper
1шт.
13
L10105
TUBE - pump to valve, L.H. upper
1шт.
14
A12032
CLAMP
CLIP - hydraulic tube
3шт.
15
A16769
WASHER
SPACER - hydraulic tube
4шт.
16
13-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
1шт.
17
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
- 5/16" x 1-1/4" N.C. hex.
2шт.
18
L10103
TUBE - pump to valve, R.H. lower
1шт.
19
L10106
TUBE - pump to valve, L.H. lower
1шт.
20
49838
CLAMP
CLIP - tube (on grille bolts)
2шт.
21
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
ADAPTER - tube (1/2" tube x 3/4" st. thread N.C.), Incl. Ref 22
2шт.
23
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
3шт.
24
L11389
VALVE ASSY. - control (Repair, F. 103)
1шт.
25
A55158
CYLINDER BLOCK
CYLINDER ASSY. - strg., frt., power (Repair, F. 107)
2шт.
26
A55307
HOSE - strg., Serial Range: cylinder-tee
4шт.
27
218-804
TEE,9/16"-18, 37 Degree, Blkhd
Cylinder hose to tube 9/16"-18, 37º, Blkhd
2шт.
28
A55655
BRACKET - steering tee
1шт.
29
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
30
L10107
TUBE - valve to cylinder 0.375" OD
2шт.
31
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
- valve to tube, 90deg. - 3.8" tube, Includes: Ref. 32
2шт.
32
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, elbow, 3/8" tube
1шт.
33
L10100
PLATE - mtg., valve
1шт.
34
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
2шт.
35
L10109
TUBE - return, control valve
1шт.
36
L10101
TUBE - relief valve to control valve
1шт.
37
L10108
ADAPTER
- cont. valve & rear strg. valve, Includes: Ref. 38
2шт.
38
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
"O" RING - adapter, 3/4" tube x .924 I.D.
1шт.
39
L10102
X
CONNECTOR - straight, tube to valve, Includes: Ref. 40
1шт.
40
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, connector, 3/8" tube
1шт.
41
HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB
Adapter, straight, relief valve, Incl. Ref 42 3/4"-16, 37º x 7/8"-14, O-Ring
2шт.
43
L10091
VALVE ASSY. - relief, steering (Repair, F. 105B)
1шт.
44
13-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
2шт.
45
L10110
X
CONNECTOR - straight, relief valve, Includes: Ref. 46
1шт.
46
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
"O" RING - connector, 3/4" tube x .924 I.D.
1шт.
47
L10111
X
TEE - return, relief valve & flow divider
2шт.
48
L10099
TUBE - lower, valve to flow divider 0.5" OD
1шт.
49
L10112
TUBE - return, lower
1шт.
50
49838
CLAMP
CLIP - tube, steering
2шт.
51
515-23159
CLAMP,5/8", Insul, 3/8" Bolt
CLIP - tube, steering
2шт.
52
L10098
TUBE - flow divider to relief valve 0.5" OD x 13.5, 6.1" L
1шт.
53
L10113
TUBE - return, upper
1шт.
54
L10097
ELBOW - flow divider, frt. strg., Includes: Ref. 55
1шт.
55
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - elbow, 5/8" tube x .755 I.D.
1шт.
56
L10092
VALVE
ASSY. - flow divider (Repair, F. 105B)
1шт.
57
13-432
BOLT,Hex, 1/4" - 20 x 2", Gr 5
2шт.
9
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - pump hose
1шт.
22
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - adapter (1/2" tube x .644 I.D.)
1шт.
42
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - adapter, 1/2" tube x .644 I.D.
1шт.
Выбрано товаров: 57
