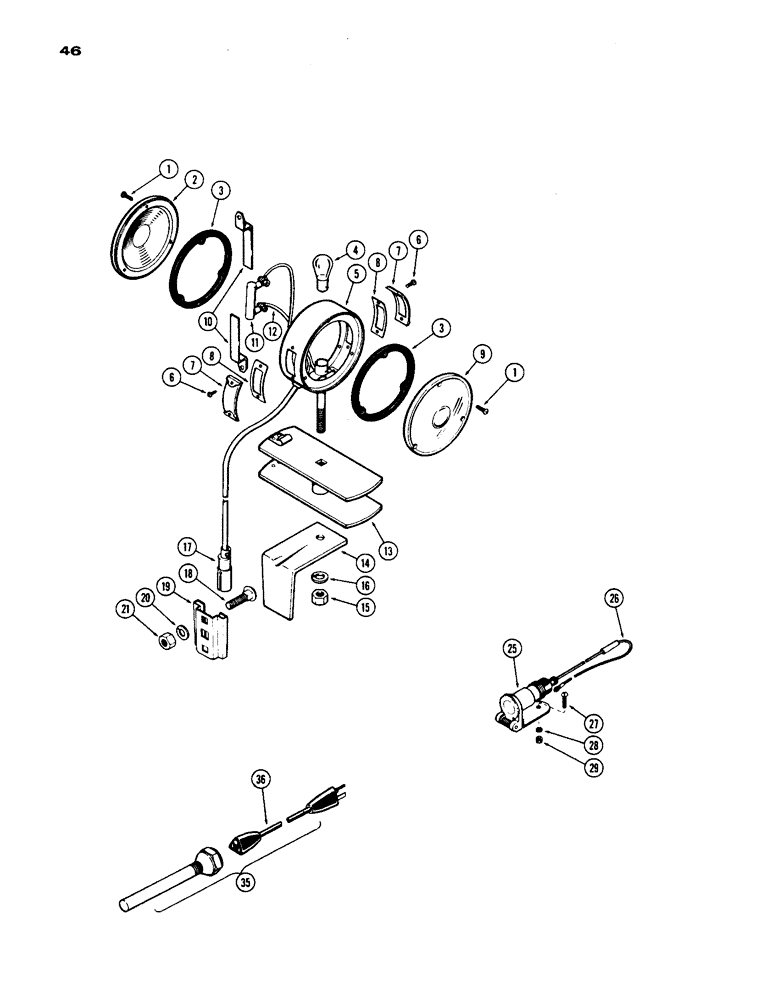

Запчасти Case IH 1200 (046) - WARNING LAMP (04) - ELECTRICAL SYSTEMS

A56426

ATTACHMENT - warning lamp (Mach. Attach.), Includes: Ref. 1 - 21

1шт.

A56422

LAMP ASSY. - warning (24 volt), Includes: Ref. 1 - 18

1шт.

1

169-61

SCREW - #8 x 1/2" rd. hd. slotted

6шт.

2

B53962

LENS

- lamp assy (Red)

1шт.

3

B33686

GASKET - lens

2шт.

4

A33686

BULB

- lamp (12 volt, 21 CP)

1шт.

5

NSS

NOT SOLD SEPARAT

BODY ASSY - warning lamp (Order A56422)

1шт.

6

182-161

SCREW - #6 x 5/16" pan hd.

6шт.

7

B50328

LENS - side, warning lamp

2шт.

8

B50329

GASKET - side lens

2шт.

9

B50337

LENS

- lamp assy, (Amber)

1шт.

10

L10084

BRACKET - resistor

2шт.

11

L10302

RESISTOR - lamp voltage (25 Watt, 50 OHM)

1шт.

12

L10086

WIRE - resistor

1шт.

13

B50330

SPOOL ASSY - lamp mtg.

1шт.

14

B50331

BRACKET - mtg. spool and lamp assy

1шт.

15

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

1шт.

16

92-7

LOCK WASHER,7/16"

1шт.

18

B50259

PLUG

ASSY - warning lamp

1шт.

18

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - carriage, 5/16" x 5/8" N.C.

2шт.

19

A8179

SOCKET

- warning lamp bracket

1шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C., hex.

2шт.

L80063

ATTACHMENT - auxiliary outlet socket (Mach. Attach.), Includes: Ref. 25 - 29

1шт.

25

A8170

SOCKET

ASSY - auxiliary outlet

1шт.

26

A15260

WIRE - socket to harness plug, auxiliary outlet

1шт.

27

173-99

SCREW,Sl Rnd Hd, #10 - 24 x 5/8"

- mach. #10 x 5/8" N.C., rd. hd., auxiliary outlet socket

2шт.

28

92-3

LOCK WASHER,#10

WASHER, LOCK, , Auxiliary outlet socket #10

2шт.

29

129-7

NUT,Hex, #10 - 24

- #10 N.C. hex., auxiliary outlet socket

2шт.

35

A40476

HEATER

ASSY - water jacket, cylinder block, Includes: Ref. 36

1шт.

36

A40477

ELECTRICAL WIRE

CORD - heater, water jacket (7 ft.), cylinder block

1шт.
