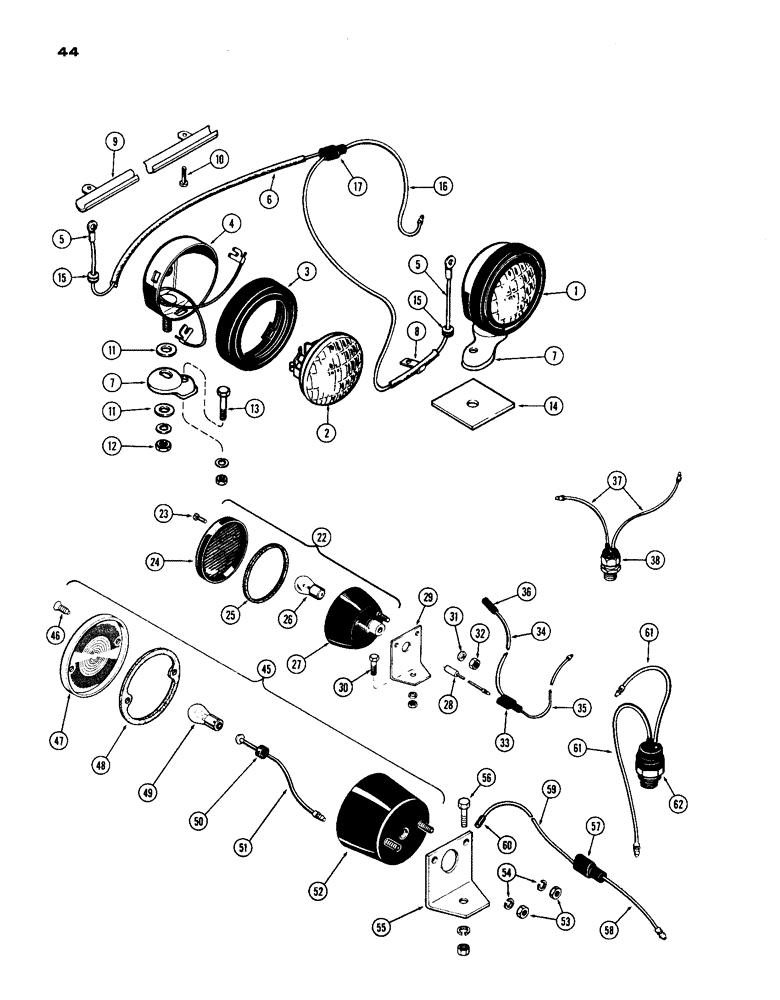

Запчасти Case IH 1200 (044) - FRONT AUXILARY LIGHT (04) - ELECTRICAL SYSTEMS

L80061

ATTACHMENT - frt. auxiliary lights (Mach. Attach.), Includes: Ref. 1 - 17

1шт.

1

A55702

LIGHT

ASSY - front auxiliary, Includes: Ref. 2 - 4

2шт.

2

A25212

LAMP

- sealed unit

1шт.

3

A25213

RETAINER

- sealed unit, rubber

1шт.

4

A25214

LIGHT

BODY ASSY. - auxiliary light

1шт.

5

A56506

WIRE - aux. light to three wire connector

2шт.

6

A7903

LOOM - light wire, L. H. and R. H.

2шт.

7

A34046

BRACKET

- mtg., auxiliary light

2шт.

8

49838

CLAMP

CLIP - light, Serial Range: wire-fender

1шт.

9

A7532

CONDUIT -, Serial Range: wire-fender

2шт.

10

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

11

10923

WASHER

- cancave, light to mtg. bracket

4шт.

12

25-108

NUT,1/2"-13, G5

- 1/2" N.C., hex

2шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C., hex

2шт.

14

A9073

PLATE - reinforcement, mtg.

2шт.

15

A30176

FLANGE

GROMMET - wire, in fender

2шт.

16

A56507

WIRE - connector to light switch

1шт.

17

A8210

CONNECTOR, ELEC

CONNECTOR - wire, (three wire)

1шт.

A56424

ATTACHMENT - stop and tail light (Order L80062), Includes: Ref. 22 - 37

1шт.

22

A16734

X

LIGHT ASSY. - stop and tail (Order Ref. 45 and 55), Includes: Ref. 23 - 27

2шт.

23

B50219

SCREW - retainer, lens, stop & tail lamp

2шт.

24

B50336

LENS

- light assy., stop & tail lamp

1шт.

25

A40862

GASKET - lens seal, stop & tail lamp

1шт.

26

A15084

LAMP

BULB - light assy (24 volt)., stop & tail lamp

1шт.

27

NSS

NOT SOLD SEPARAT

BODY ASSY. - stop light (Order A16733), tail lamp

1шт.

28

A16733

WIRE ASSY. - stop and tail light, lamp

1шт.

29

A56479

BRACKET - mtg., light assy., stop & tail lamp

2шт.

30

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Stop & tail lamp Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Stop & tail lamp 1/4"

4шт.

32

25-104

NUT,1/4"-20, G5

Stop & tail lamp 1/4"-20, G5

4шт.

33

A8210

CONNECTOR, ELEC

CONNECTOR - R.H. & L.H. light wire, stop & tail lamp

1шт.

34

L10069

WIRE - L.H. lamp to R.H. lamp, stop & tail

1шт.

35

L10068

WIRE - R.H. light to harness plug, stop & tail lamp

1шт.

36

A27213

CONNECTOR - wire, left tail lamp (2 wire), stop

1шт.

37

G44059

WIRE - brake switch to harness conn, stop & tail lamp

2шт.

38

A12491

SWITCH

- brake stop light, tail lamp

1шт.

L80062

ATTACHMENT - stop and tail light, Includes: Ref. 45 - 61

1шт.

45

L11000

INTERIOR LIGHT

LAMP ASSY. - stop and tail, Includes: Ref. 46 - 54

2шт.

46

L30432

SCREW,#8 x 5/8"

- lens mtg., #8 x 5/8" Phillips Oval hd., stop & tail lamp

2шт.

47

L30431

LENS

- lamp (Red), stop & tail

1шт.

48

L30430

GASKET

- lens mounting, stop & tail lamp

1шт.

49

A15084

LAMP

BULB - lamp (GE1683 - 32LP), stop & tail

1шт.

50

L30428

SPRING - contact, stop & tail lamp

1шт.

51

L30429

WIRE ASSY. - contact, lamp

1шт.

52

NSS

NOT SOLD SEPARAT

BODY - lamp (Order ref. 45), stop & tail

1шт.

53

25-104

NUT,1/4"-20, G5

Lamp mtg., Stop & tail 1/4"-20, G5

2шт.

54

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Stop & tail lamp 1/4"

2шт.

55

L10999

BRACKET - lamp mounting, stop & tail

2шт.

56

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Bracket mtg, Stop & tail lamp Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

57

A8210

CONNECTOR, ELEC

CONNECTOR - three wire, stop & tail lamp

1шт.

58

L10068

WIRE - stop light wire to harness plug, tail lamp

1шт.

59

L10069

WIRE - L.H. light connector to connector, stop & tail lamp

1шт.

60

A27213

CONNECTOR - L.H. lamp wire, stop & tail

1шт.

61

G44059

WIRE - brake switch to harness plug, stop & tail lamp

2шт.

62

A12491

SWITCH

ASSY - brake, stop light

1шт.
