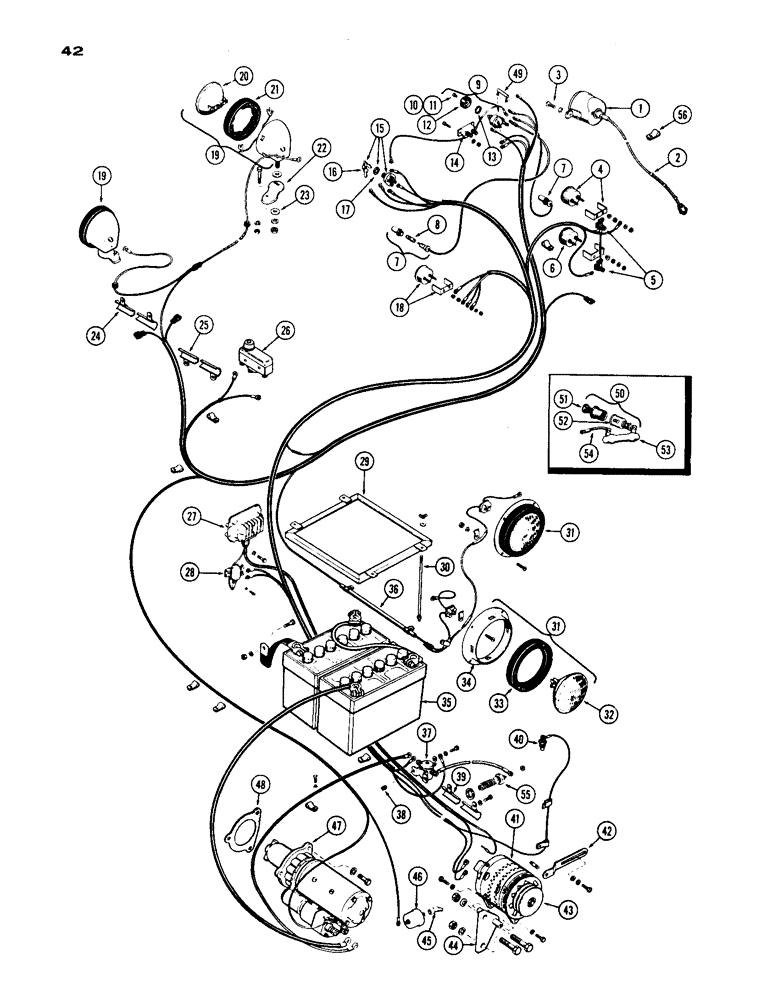

Запчасти Case IH 1200 (042) - ELECTRICAL EQUIPMENT, (451) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A55972

TACHOMETER

TACHOMETER ASSY - engine

1шт.

2

A55973

CABLE

CABLE ASSY - tachometer

1шт.

3

173-240

SCREW - mach., #10 x 3/4" N.F., rd. hd.

2шт.

4

A19346

ELECTRICAL GAUGE

GAUGE ASSY - oil pressure, 12 volt

1шт.

5

A19349

RESISTOR

RESISTOR - water temp, & oil press. ga. (24-12V)

2шт.

6

A19347

ELECTRICAL GAUGE

GAUGE ASSY - water temperature

1шт.

7

A55704

SPARE PART LIGHT ASSY - panel, Includes: Ref. 8

2шт.

8

A25257

BULB

BULB - light assy. (24 volt)

1шт.

9

A56307

SWITCH

SWITCH ASSY - light (24 Volt), Includes: Ref. 10 - 13

1шт.

10

A20468

SCREW,Spcl, #8 - 32 x 5/16"

SCREW - light switch knob

1шт.

11

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

12

A20465

KNOB

KNOB - light switch

1шт.

13

A20467

NUT

NUT - lock, light switch

1шт.

14

A22877

BREAKER,40A

BREAKER ASSY - circuit

1шт.

15

A24510

SWITCH

SWITCH ASSY - ignition & starter, w/keys, Includes: Ref. 16 and 17

1шт.

16

A24509

KEY

KEY - ignition & starter switch

2шт.

17

NSS

NOT SOLD SEPARAT

NUT - lock, ignition & starter switch

2шт.

18

A55699

ELECTRICAL GAUGE

GAUGE ASSY - ammeter, (60 amp.)

1шт.

19

A55702

LIGHT

LIGHT ASSY - rear mounted, Includes: Ref. 20 and 21

2шт.

20

A25212

LAMP

ELEMENT - rear light

1шт.

21

A25213

RETAINER

MOULDING - element, rubber

1шт.

22

A26216

BRACKET

BRACKET - mtg., rear light

2шт.

23

10923

WASHER

WASHER - concave, bearing, light mtg.

4шт.

24

A28674

SPARE PART CONDUIT - wire, rear lights

1шт.

25

A7532

SPARE PART CONDUIT - wire harness

1шт.

26

A19513

SWITCH

SWITCH - neutral start

1шт.

27

A55703

REGULATOR

REGULATOR - alternator

1шт.

28

L11509

RELAY

RELAY - electrical

1шт.

29

A55215

FRAME - battery holdown

1шт.

30

L10676

STUD - battery hold down (9-1/4" long) (w/2 piece fender)

4шт.

30

A55411

STUD - battery hold down (11-1/8" lg.) (w/o 2 piece fender)

4шт.

31

NSS

NOT SOLD SEPARAT

LIGHT ASSY - front head lamp, Includes: Ref. 32 - 34

2шт.

32

A25209

LAMP

ELEMENT - head light

1шт.

33

A25210

MOUNTING PARTS

MOULDING - element, rubber

1шт.

34

A25211

FRAME - mounting, lamp

1шт.

35

M20393

X

BATTERY - 12 volt (Auto-Lite #SV-30H93)

2шт.

36

A56505

LOOM - front wire

1шт.

37

A18501

SOLENOID SWITCH

SWITCH - heater, solenoid

1шт.

38

A56188

INSERT - solenoid to cyl. blk.

2шт.

39

A28674

SPARE PART CONDUIT - electrical wiring

1шт.

40

A13796

X

UNIT - sending, water temp (exhaust stack then order A21462)

1шт.

40

A21462

SENDER UNIT

- sending, water temperature

1шт.

41

A56095

ALTERNATOR

ALTERNATOR - gen., 24 volt (Repairs, P. 51)

1шт.

42

A56099

SPARE PART STRAP - adjusting, alternator

1шт.

43

A18423

SPARE PART PULLEY - alternator

1шт.

44

A56096

BRACKET

BRACKET - mtg., alternator

1шт.

45

221-1401

ELBOW,45º, 1/8"-27, NPT

ELBOW - street, 45deg.

1шт.

46

A35031

SENDER UNIT

- sending, oil pressure

1шт.

47

A15485

STARTING MOTOR

MOTOR ASSY. - starting, 24 volt (Repair, P. 49)

1шт.

47

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

47

RC46156

CORE-STARTER

Return Number

1шт.

48

A27933

GASKET

GASKET - starting motor

1шт.

49

A14900

RESISTOR

RESISTOR - light sw. to wire harness

1шт.

50

A24081

SPARE PART LIGHTER ASSY - cigar (Prior Unit S/N9800221), Includes: Ref. 51 and 52

1шт.

51

A24134

CIGARETTE LIGHTER

UNIT ASSY - cigar light

1шт.

52

A24082

SPARE PART SOCKET ASSY - cigar lighter

1шт.

53

A55708

SPARE PART RESISTOR - lighter, (24 V to 12/V) (Prior S/N9800221)

1шт.

54

A13751

SPARE PART WIRE - key, Serial Range: sw.-resistor

1шт.

55

A34278

HEATER

HEATER ASSY. - int. manifold (24 volt)

1шт.
