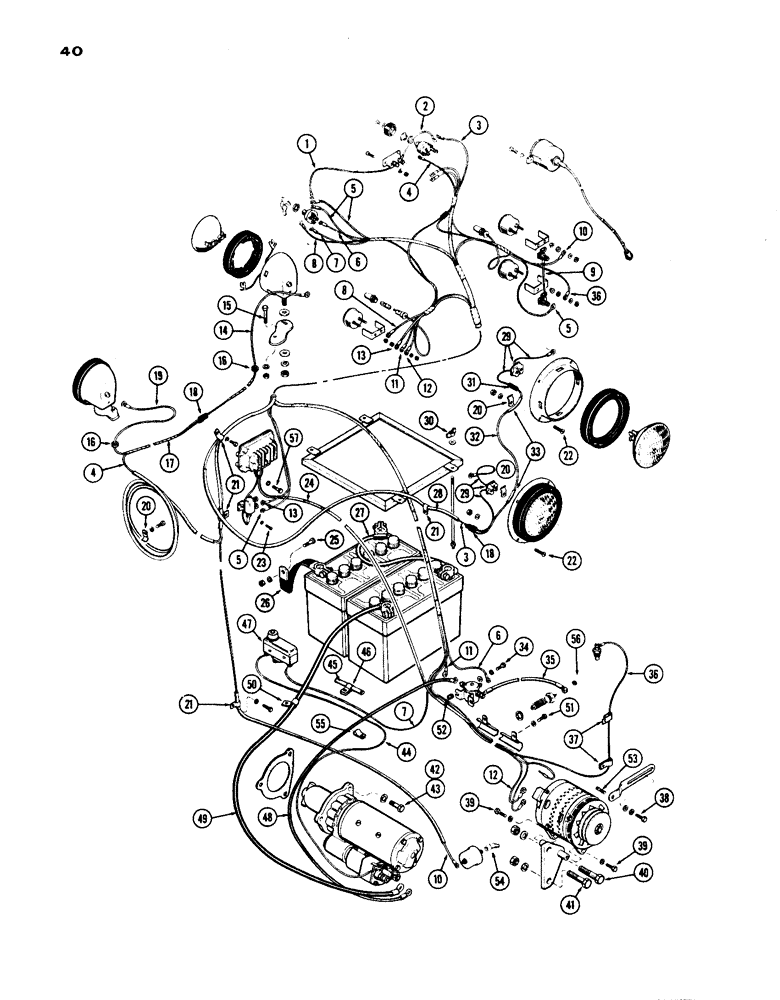

Запчасти Case IH 1200 (040) - ELECTRICAL WIRING AND HARDWARE, (451) DIESEL ENGINE, USED PRIOR TO TRACTOR SERIAL NUMBER 9800221 (04) - ELECTRICAL SYSTEMS

1

A19366

WIRE - key switch to circuit breaker

1шт.

2

A19365

WIRE - light sw. to circuit breaker

1шт.

3

A55710

WIRE - light sw. ("H" term.) to headlight conn.

1шт.

4

A55714

WIRE - light sw. ("C" term) to rear light conn.

1шт.

5

A36167

WIRE - key sw. to temp. ga. resistor & relay

2шт.

6

A27092

WIRE - key sw. (sol., Serial Range: term.)-solenoid

1шт.

7

A56503

WIRE - key sw. (st. term.) to trans. neutral sw.

1шт.

8

A56102

WIRE - key sw. (bat., Serial Range: term.)-ammeter

1шт.

9

A11768

ELECTRICAL WIRE

WIRE - temp. ga. to oil press. ga. resistor

1шт.

10

A55716

WIRE - oil press, Serial Range: ga.-sender

1шт.

11

A55706

WIRE - ammeter to solenoid (Red 40")

1шт.

12

A56504

WIRE -, Serial Range: ammeter-alternator

1шт.

13

A56319

WIRE - ammeter to relay (term #2)

1шт.

14

A13793

WIRE - rear R.H. lamp to conn. (White 10")

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C., hex.

2шт.

16

A30176

FLANGE

GROMMET - wire cushion

4шт.

17

A21783

LOOM - rear lamp wires

2шт.

18

A8210

CONNECTOR, ELEC

CONNECTOR - three wire

2шт.

19

A11953

WIRE - rear L.H. lamp to conn. (BLK. 33")

1шт.

20

33700

CLIP - wire retaining

4шт.

21

A7922

CLIP

- wire

9шт.

22

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

23

13-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

- 1/4" x 3/8" N.C. hex

2шт.

24

A55705

PLUG & HARNESS ASSY - reg. to altern. and relay

1шт.

25

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

26

A27069

CABLE

- battery, Serial Range: (Negative-ground)

1шт.

27

A18926

CABLE

- cross, battery, Serial Range: (Positive-negative)

1шт.

28

A56508

LOOM - headlight wire

1шт.

29

A55974

PLUG

ASSY. - head light, w/wire

2шт.

30

129-404

WING NUT,1/4"-20

NUT - wing, 1/4" N.C.

4шт.

31

A27213

CONNECTOR - two wire

1шт.

32

A13252

ELECTRICAL WIRE

WIRE - cross, headlight (Black 18")

1шт.

33

A12458

SLEEVE

LOOM - head light wires

2шт.

34

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

35

A18503

CABLE - solenoid sw. to heater (Optional)

1шт.

36

A55715

WIRE - water temp., Serial Range: gauge-sender

1шт.

37

A22880

CLIP

- retainer, wire

2шт.

38

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

39

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

40

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

1шт.

41

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

42

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

43

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3" N.C. hex

1шт.

44

A56502

WIRE - starter mtr. to trans. neut. safety sw.

1шт.

45

A31104

LOOM - neutral switch wires

1шт.

46

A12454

CLIP

- safety switch wire

1шт.

47

A19513

SWITCH

- transmission neutral safety

1шт.

48

A18502

CABLE - starter, Serial Range: motor-solenoid

1шт.

49

A31077

CABLE - battery pos. to starter motor

1шт.

50

A27041

CLIP - battery cable

4шт.

51

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

54

221-1401

ELBOW,45º, 1/8"-27, NPT

- street, 45deg.

1шт.

52

A56188

ELBOW - solenoid to cyl. blk. bolt

2шт.

53

A7391

STUD

- adjusting strap to water pump body

1шт.

55

A10852

CLIP - cable

1шт.

56

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

57

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.
