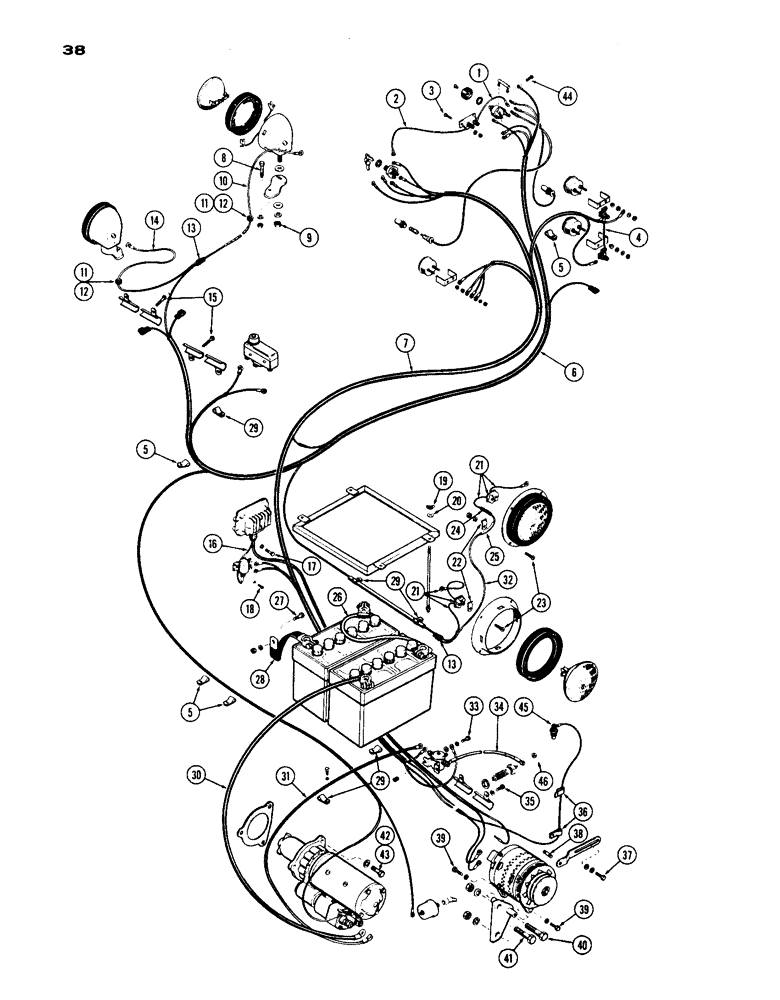

Запчасти Case IH 1200 (038) - ELECTRICAL WIRING AND HARDWARE, (451) DIESEL ENGINE, FIRST USED TRACTOR SERIAL NUMBER 9800221 (04) - ELECTRICAL SYSTEMS

1

A19365

WIRE - circuit breaker to light switch

1шт.

2

A19366

WIRE - starter switch to circuit breaker

1шт.

3

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- mach., #10 x 1/2" round hd.

2шт.

4

A11768

ELECTRICAL WIRE

WIRE - temp. gauge to oil press gauge

1шт.

5

49838

CLAMP

CLIP - retainer, wire

9шт.

6

L10071

HARNESS ASSY - wire, light switch

1шт.

7

L10070

HARNESS ASSY - wire, key switch

1шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C., hex

2шт.

9

25-108

NUT,1/2"-13, G5

- 1/2" N.C, hex

2шт.

10

A11953

WIRE - connector to L.H. rear light

1шт.

11

L10082

GROMMET

- rear platform plate

2шт.

12

A31076

GROMMET

- fender, LH and RH

2шт.

13

A8210

CONNECTOR, ELEC

CONNECTOR - three wire

2шт.

14

A13793

WIRE - connector to R.H. rear light

1шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

16

A55705

PLUG & HARNESS ASSY - rep. to relay and altern.

1шт.

17

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

18

13-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

- 1/4" x 3/8" N.C., hex.

2шт.

19

129-404

WING NUT,1/4"-20

NUT - wing, 1/4" N.C.

4шт.

20

92-5

LOCK WASHER,5/16"

WASHER - plain, 1/4" SAE

4шт.

21

A55974

PLUG

ASSY - headlight

2шт.

22

33700

CLIP - wire and light frame

2шт.

23

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

8шт.

24

A27213

CONNECTOR - cross wire to plug, 2 wire

1шт.

25

A12458

SLEEVE

LOOM - wire clip

1шт.

26

A18926

CABLE

- battery to battery, Serial Range: (Pos.-Neg.)

1шт.

27

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

28

A27069

CABLE

-, Serial Range: battery-ground

1шт.

29

49836

CLAMP

CLIP - retainer, wire

5шт.

30

A31077

CABLE - battery (Pos., Serial Range: term.)-starter

1шт.

31

A18502

CABLE -, Serial Range: starter-solenoid

1шт.

32

A13252

ELECTRICAL WIRE

WIRE - cross, L.H. to R.H. headlight

1шт.

33

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

34

A18503

CABLE - solenoid sw. to heater (Optional)

1шт.

35

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

36

A22880

CLIP

- retainer, wire

2шт.

37

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

38

A7391

STUD

- strap to water pump body

1шт.

39

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

40

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

1шт.

41

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

42

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

43

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3" N.C., hex

1шт.

44

173-75

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- mach., #8 x 3/8" N.C., rd. hd.

1шт.

45

129-27

NUT,Hex, #10 - 32

- , hex. hd. #10-32

1шт.

46

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.
