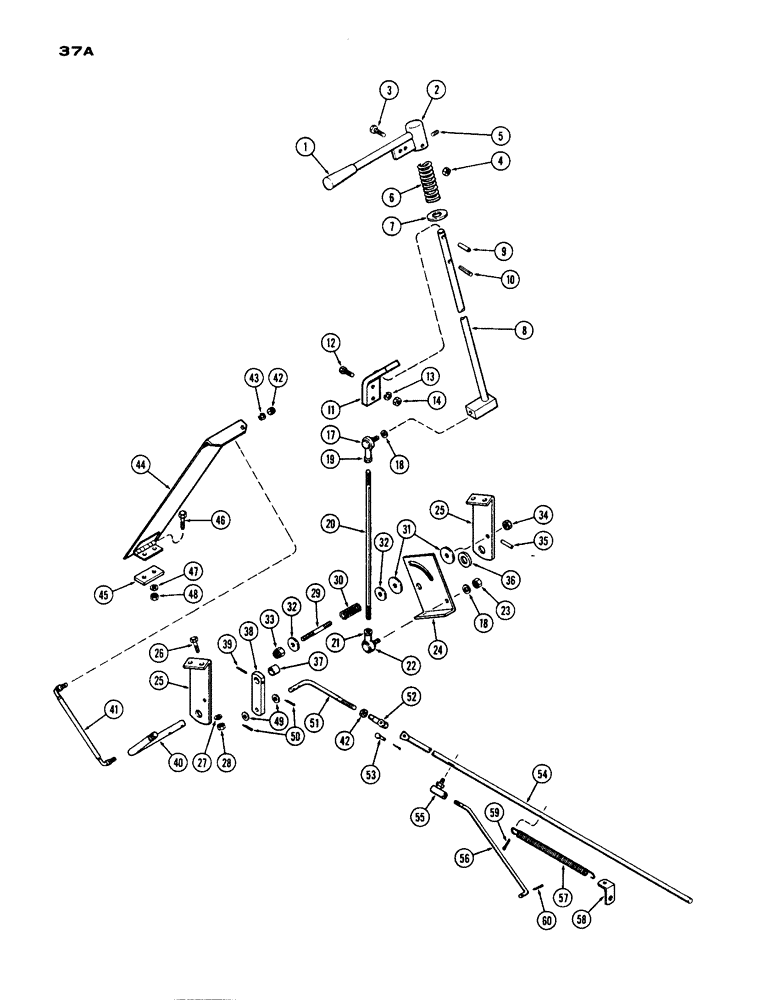

Запчасти Case IH 1200 (037A) - THROTTLE LINKAGE, (451) DIESEL ENGINE, USED TRACTOR SERIAL NUMBER 9801866 THRU 9804308 (03) - FUEL SYSTEM

1

NLS

NO LONGER SERVICED

- hand lever, throttle

1шт.

2

L10617

LEVER - hand, throttle control

1шт.

3

A20341

BOLT - stop, throttle lever

1шт.

4

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam, 1/4" N.C. hex.

1шт.

5

178-803

SET SCREW,Hex Soc, 1/4"-28 x 1/2"

SCREW - set, 1/4"-28 x 1/2" hd. less Nylock

1шт.

6

A30146

SPRING

- tension, throttle shaft

1шт.

7

95-8

WASHER,1/2"

plain (9/16" x 1-3/8" x 7/64") 1/2"

1шт.

8

L11388

SHAFT - hand throttle control

1шт.

9

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

10

135-342

GROOVED PIN,3/16" x 1 1/4", Type F

PIN, GROOVED, 3/16" x 1 1/4", Type F

1шт.

11

L10612

BRACKET ASSY. - throttle control shaft

1шт.

12

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

25-104

NUT,1/4"-20, G5

2шт.

17

A55593

END

ASSY. - throttle link

1шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

25-154

JAM NUT,Jam, 1/4"-28, G5

- jam, 1/4" N..F, hex

1шт.

20

L10621

ROD - link, throttle

1шт.

21

129-361

NUT,Jam, 1/4"-28, G5, LH

- jam, 1/4" N.F. hex. (L.H. thread)

1шт.

22

L10622

END ASSY. - throttle link

1шт.

23

25-114

NUT,1/4"-28, G5

- hex., 1/4" N.F.

1шт.

24

L10607

LEVER - throttle control

1шт.

25

L10608

BRACKET - support, cross shaft

2шт.

26

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

27

92-5

LOCK WASHER,5/16"

4шт.

28

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" N.C.

4шт.

29

L10609

STUD - adj., throttle tension

1шт.

30

A26546

SPRING

- tension, throttle lever

1шт.

31

L10610

DISC - friction, throttle lever

2шт.

32

195-524

WASHER,5/16"

- plain, 3/8" x 1-7/8" x 33/64"

2шт.

33

131-4

LOCK NUT,5/16"-18, GB

NUT - elaxtic hex., 5/16-18 N.C. Nylock

1шт.

34

25-145

JAM NUT,Jam, 5/16"-18, G5

- jam, 5/16" N.C., hex.

1шт.

35

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

36

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 7/64") 1/2", SAE

1шт.

37

D34003

SPACER - throttle cross shaft

1шт.

38

L10606

LEVER - cross shafat

1шт.

39

135-334

PULLEY

PIN - groove, 5/32" x 1" long

1шт.

40

L10605

SHAFT - throttle cross

1шт.

41

A55584

LINK ASSY.

- accelerator to cross shaft

1шт.

42

129-27

NUT,Hex, #10 - 32

- hex, N.F. #10-32

3шт.

43

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

44

A55579

PEDAL ASSY. - accelerator

1шт.

45

A55583

BOLT - hex., 1/4" x 1" N.C.

2шт.

47

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

48

25-104

NUT,1/4"-20, G5

2шт.

49

92-5

LOCK WASHER,5/16"

WASHER - plain, 7/16 x 3/8 x 5/64"

2шт.

50

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

51

L11260

LINK - throttle lever to engine rod

1шт.

52

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - clevis, 3/16" N.F.

1шт.

53

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16" dia. x 37/64" long

1шт.

54

A23936

ROD - engine throttle

1шт.

55

A10326

BALL JOINT

JOINT ASSY. - ball, throttle

1шт.

56

A22245

ROD

- fuel pump throttle

1шт.

57

A22619

SPRING

- throttle rod return

1шт.

58

A22620

CLIP

- throttle spring retainer

1шт.

59

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

60

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.
