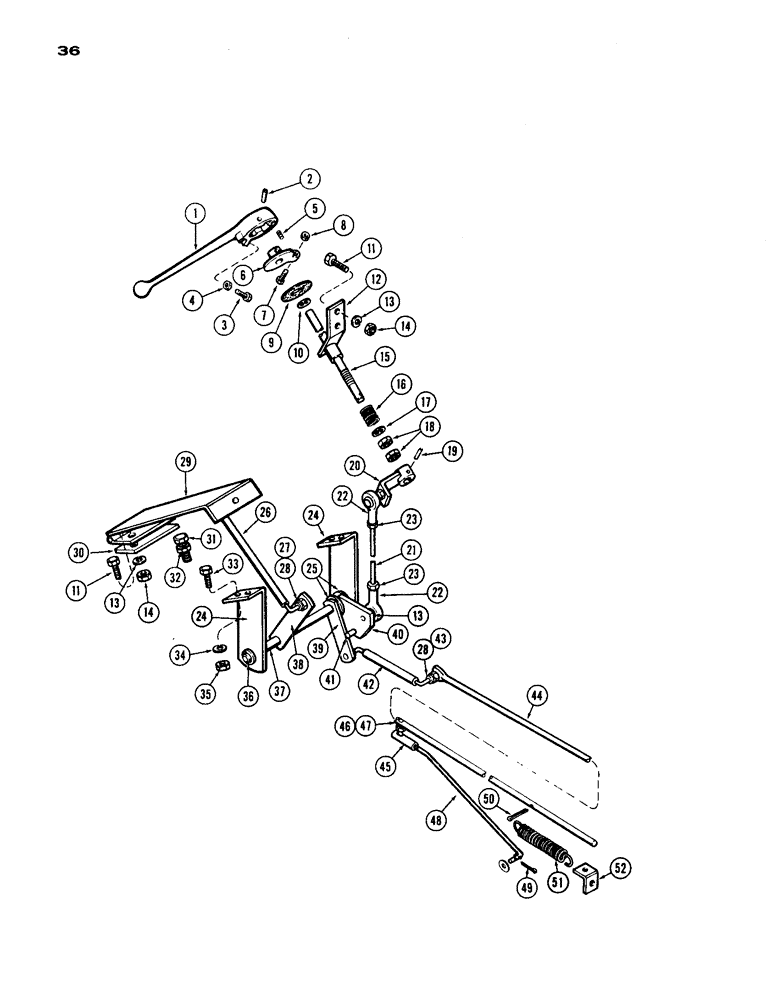

Запчасти Case IH 1200 (036) - THROTTLE LINKAGE, (451) DIESEL ENGINE, USED PRIOR TO TRACTOR SERIAL NUMBER 9801866 (03) - FUEL SYSTEM

1

A23784

LEVER

ASSY - hand throttle control, Includes: Ref. 2 - 4

1шт.

2

138-106

LOCK PIN,3/16" x 2 1/2", Slotted

PIN, 3/16" x 2 1/2", Slotted

1шт.

3

A20341

SCREW - idle adj.

1шт.

4

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam, 1/4" N.C. hex.

1шт.

5

A8012

SPRING

- friction disc

1шт.

6

A23916

PLATE - throttle friction disc.

1шт.

7

A20341

SCREW - high speed adj.

1шт.

8

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam 1/4" N.C. hex

1шт.

9

A11969

GASKET

DISC - friction, throttle lever

1шт.

10

A32838

WASHER

DISC - friction, throttle lever

1шт.

11

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

12

A56513

BRACKET - throttle control rod

1шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

14

25-104

NUT,1/4"-20, G5

4шт.

15

A55345

SHAFT - throttle control

1шт.

16

A34113

SPRING

- throttle shaft

1шт.

17

195-33

WASHER,1/2"

- SAE plain 1/2"

1шт.

18

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F., hex.

2шт.

19

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

20

A55333

CRANK - throttle control

1шт.

21

A55592

ROD

ASSY - throttle control, Includes: Ref. 22 and 23

1шт.

22

A55593

END

ASSY - rod, throttle control

2шт.

23

25-154

JAM NUT,Jam, 1/4"-28, G5

- jam, 1/4" N..F, hex

2шт.

24

A55590

BRACKET - support, throttle cross shaft

2шт.

25

195-533

WASHER,1/2", SAE

- 1/2" SAE (zinc pltd.)

2шт.

26

A55584

LINK ASSY.

LINK ASSY - accelerator to throttle lever

1шт.

27

129-27

NUT,Hex, #10 - 32

- N.F. hex. #10-32

4шт.

28

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

29

A55579

PEDAL ASSY - foot accelerator

1шт.

30

A55583

SPACER - accelerator hinge

1шт.

31

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex (pedal stop)

1шт.

32

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex.

1шт.

33

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

34

92-5

LOCK WASHER,5/16"

4шт.

35

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

4шт.

36

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

37

A55585

SHAFT - throttle cross

1шт.

38

A55587

LEVER - cross shaft, outer

1шт.

135-334

PULLEY

PIN - groove, 5/32" x 1", type 3

1шт.

39

A55586

LEVER - cross shaft, inner

1шт.

135-334

PULLEY

PIN - groove, 5/32 x 1", type 3

1шт.

40

A55588

LEVER ASSY - auxiliary, throttle control, Includes: Ref. 41

1шт.

41

A55459

PIN

- dowel, 3/8" dia.

1шт.

42

A55591

VALVE

LINK ASSY - inner lever to engine rod

1шт.

43

129-27

NUT,Hex, #10 - 32

- jam, N.F. hex. #10-32

1шт.

44

A23936

ROD - throttle, front

1шт.

45

A10326

BALL JOINT

JOINT ASSY - ball, throttle

1шт.

46

129-7

NUT,Hex, #10 - 24

- jam, #10-32 N.C. hex.

1шт.

47

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

48

A22245

ROD

LINK - throttle rod to fuel pump

1шт.

49

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

50

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

51

A22619

SPRING

- throttle return

1шт.

52

A22620

CLIP

- return spring

1шт.
