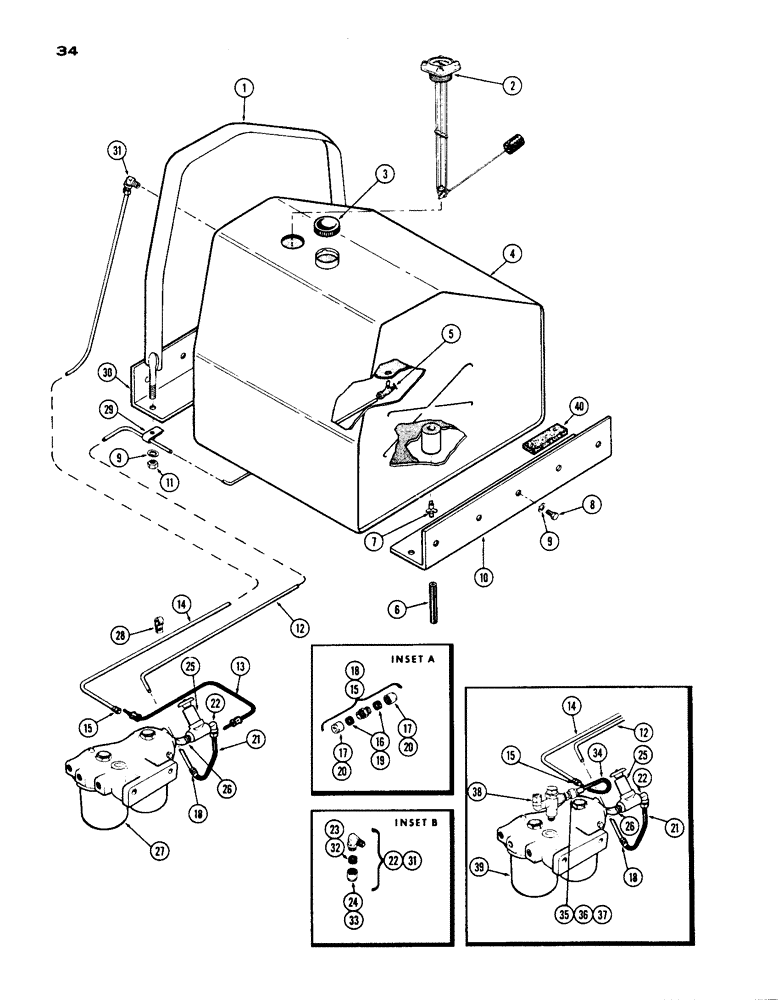

Запчасти Case IH 1200 (034) - FUEL TANK, (451) DIESEL ENGINE (03) - FUEL SYSTEM

1

A55465

STRAP - retainer fuel tank

2шт.

2

A55464

GAUGE ASSY - fuel tank

1шт.

3

A33558

CAP

- filler, fuel tank

1шт.

4

A55463

TANK ASSY - fuel

1шт.

5

A27955

VALVE

ASSY - needle, fuel tank

1шт.

6

L11537

HOSE - drain, water trap

1шт.

7

217-107

VALVE

ASSY. - water drain fuel tank

1шт.

8

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

10шт.

9

92-6

LOCK WASHER,3/8"

14шт.

10

A55107

ANGLE - mtg., fuel tank

2шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

12

A55988

TUBE - fuel tank to filter head

1шт.

13

L10042

HOSE - return, fuel tank to #6 injector tee (Engine S/N 2090853 and after)

1шт.

14

A55989

TUBE - filter to fuel tank

1шт.

15

222-4

FITTING,9/16"-24, Flex Tube

UNION - #62 fl., 5/16" tube (See inset "A"), Includes: Ref. 16 and 17

1шт.

16

222-103

SLEEVE,5/16" Tube

- #68 Fl., 5/16" Tube

2шт.

17

222-113

TUBE NUT,9/16"-24

NUT #61 fl., 5/16" tube

2шт.

18

222-5

FITTING,5/8"-24 Flex Tube

UNION #62 fl., 3/8" tube (See inset "B"), Includes: Ref. 19 and 20

1шт.

19

222-104

SLEEVE,3/8" Tube

- #60 fl., 3/8" Tube

2шт.

20

222-114

NUT,5/8"-24

NUT - #61 fl., 3/8" tube

2шт.

21

A17221

HOSE

- fuel tank tube to filter (inlet)

1шт.

22

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 90deg., 3/8" tube x 1/4" P.T. (See inset "B"), Includes: Ref. 23 and 24

1шт.

23

222-104

SLEEVE,3/8" Tube

- #60 fl., 3/8" Tube

1шт.

24

222-114

NUT,5/8"-24

NUT - #61 Fl., 3/8" tube

1шт.

25

A23865

PUMP

ASSY - hand primer, fuel

1шт.

26

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - close, 1/4" x 1"

1шт.

27

A40435

FILTER

ASSY - primary (Eng. S/N 2090853 and after) (Repair, Figure 21)

1шт.

28

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLIP - tube retainer

2шт.

29

A7922

CLIP

- fuel line tube

1шт.

30

A56121

SUPPORT - fuel tank and P.T.O. pivot

1шт.

31

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 90deg., 5/16" tube x 1/4" P.T. (See inset "B"), Includes: Ref. 32 and 33

1шт.

32

222-103

SLEEVE,5/16" Tube

- #60 Fl., 5/16" Tube

1шт.

33

222-113

TUBE NUT,9/16"-24

NUT - #61 fl., 5/16" tube

1шт.

34

A17220

HOSE

- fuel tank to filter relief valve (Prior Engine S/N 2090853)

1шт.

35

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR #68 Fl., 5/16" tube x 1/4" P.T., Includes: Ref. 36 and 37

1шт.

36

222-103

SLEEVE,5/16" Tube

- #60 fl., 5/16" Tube

1шт.

37

222-113

TUBE NUT,9/16"-24

NUT #61 fl., 5/16" tube

1шт.

38

A20637

LOCK VALVE

VALVE ASSY. - relief (Prior Eng. S/N 2090853) (Repairs, Figure 21)

1шт.

39

A23690

SHAFT LOCK

FILTER ASSY - primary (Prior Eng. S/N 2090853) (Repairs, Figure 21)

1шт.

40

A13372

PAD - fuel tank mtg.

2шт.
