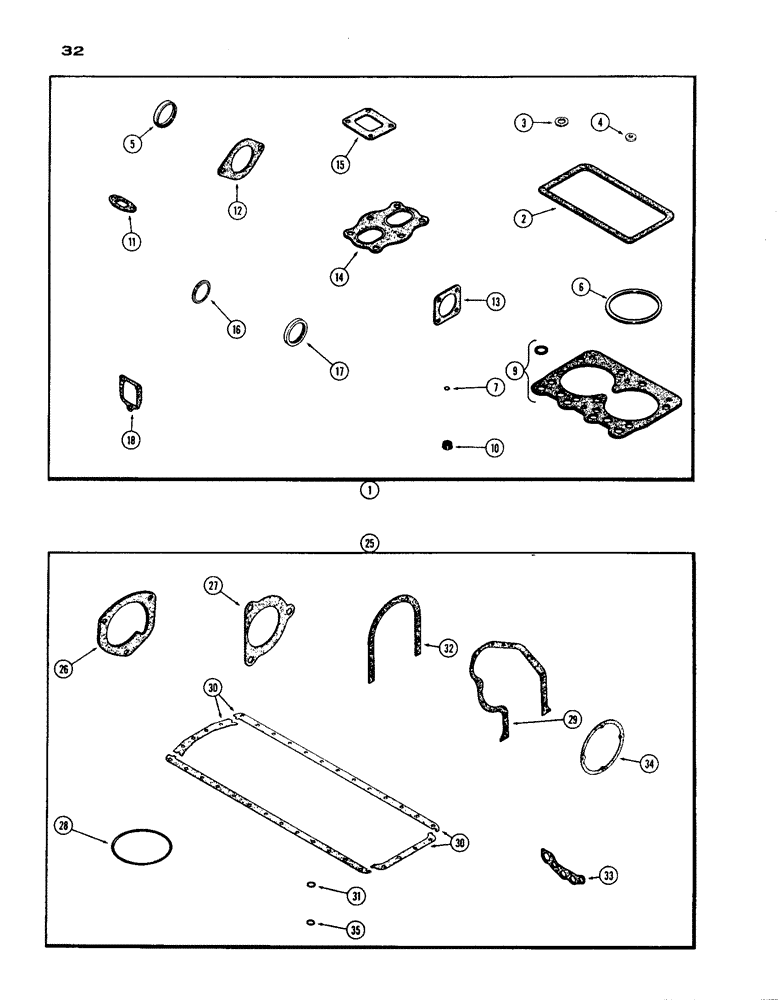

Запчасти Case IH 1200 (032) - ENGINE GASKET KITS, (451) DIESEL ENGINE (02) - ENGINE

1

A34687

X

GASKET KIT - valve grind, Includes: Ref. 2 - 18

1шт.

2

A27972

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

3

A23685

GASKET

- breather, Serial Range: tube-cover

3шт.

4

A23684

GASKET

GASKET - valve cover stud

6шт.

5

A11423

SEAL

- thermostat

1шт.

6

A34686

RING

- fire, cylinder head gasket

6шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker arm shaft tube

3шт.

9

A41385

X

GASKET KIT - cylinder head

3шт.

10

A10726

SEAL

SHIELD - intake valve stem (rubber)

6шт.

11

A27905

GASKET

- water manifold

6шт.

12

A11421

GASKET

- thermostat hsg.

1шт.

13

A20915

GASKET

- intake manifold elbow

1шт.

14

A24966

GASKET

- exh. stack to exh. manifold

1шт.

15

A24968

GASKET

-, Serial Range: turbo-adapter

1шт.

17

A21054

MANIFOLD GASKET

- intake manifold

3шт.

18

A22939

GASKET

- decompressor opening

3шт.

25

A24994

GASKET

KIT - cylinder block, Includes: Ref. 26 - 35

1шт.

26

M1127885

STEM

- water pump body

1шт.

27

A27933

GASKET

- starting motor

1шт.

28

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - fuel pump drive shaft hsg.

1шт.

29

A33018

GASKET

- timing gear cover

1шт.

30

A15391

GASKET

SET - oil pan

1шт.

31

1349398C1

GASKET KIT

GASKET - drain plug oil pan (Replaces A27927)

1шт.

32

A32830

GASKET

- crankshaft retainer (rear)

1шт.

33

A21084

GASKET

- filter, Serial Range: base-block

1шт.

34

NOT USED

GASKET - timing cover (not used w/this application)

1шт.

35

NOT USED

GASKET - drain plug (not used w/this application)

1шт.
