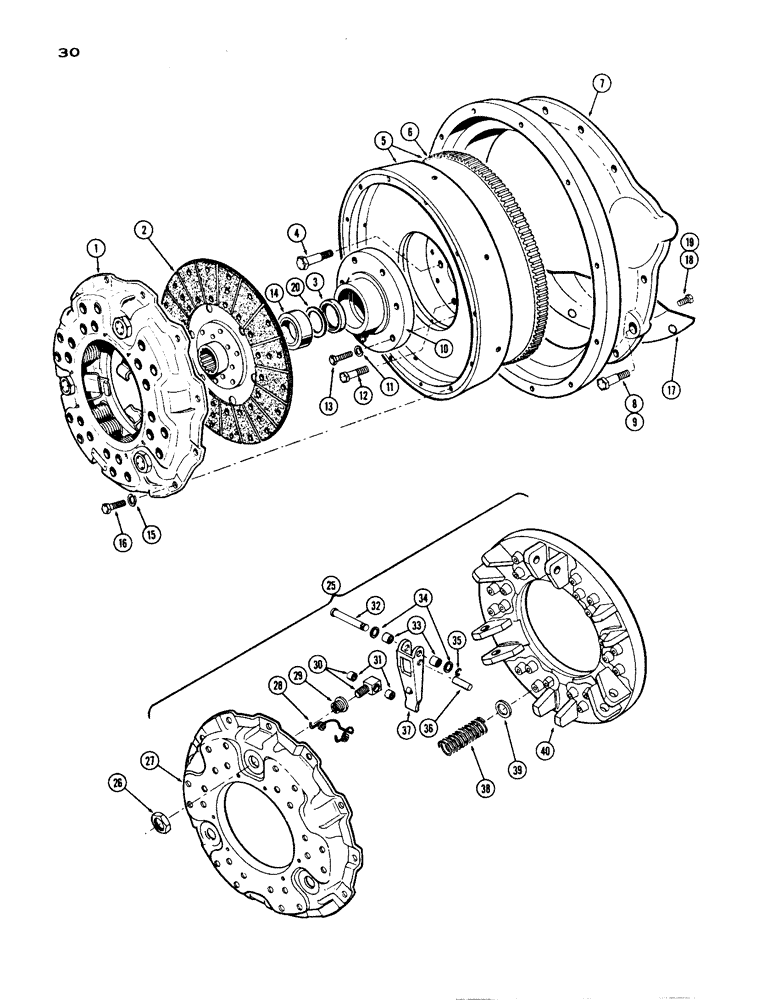

Запчасти Case IH 1200 (030) - CLUTCH-FLYWHEEL AND HOUSING, (451) DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A55171
CLUTCH
COVER ASSY. - clutch
1шт.
2
A151116
DISC
ASSY - clutch (Replaces A55172)
1шт.
3
A56626
OIL SEAL
PTO - drive adapter (Also order washer ref. #20)
1шт.
4
A55669
STEP BOLT
BOLT - dowel, flywheel
2шт.
5
A55174
FLYWHEEL ASSY. - engine, Includes: Ref. 6
1шт.
6
A27920
GEAR
- ring, flywheel
1шт.
7
A55173
HOUSING - flywheel
1шт.
8
A32607
STEP BOLT
- dowel, long
1шт.
9
A32608
STEP BOLT
BOLT - dowel, short
1шт.
10
A55176
ADAPTER ASSY. - PTO drive
1шт.
41-24
PLUG
- welch, adapter seal (Not illustrated)
1шт.
11
92-7
LOCK WASHER,7/16"
8шт.
12
A55668
BOLT - flywheel
4шт.
Ref. 12 - These bolts require A58629 Washer.
1шт.
13
13-728
BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5
8шт.
14
A55664
BALL BEARING
BEARING PTO - drive adapter
1шт.
15
92-6
LOCK WASHER,3/8"
12шт.
16
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
12шт.
17
A14508
X
SHIELD - dust, clutch hsg.
1шт.
18
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
2шт.
19
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
- 1/2" x 1-3/4" N.C. hex.
2шт.
20
A56627
WASHER
- adapter seal (Also order seal, Ref. 3)
1шт.
25
A55171
CLUTCH
COVER ASSY. - clutch, Includes: Ref. 26 - 40
1шт.
26
A55920
NUT - lock, clutch
3шт.
27
A55914
COVER
ASSY. - clutch
1шт.
28
A55922
SPRING - clutch retractor
3шт.
29
A55923
NUT - adjusting, clutch
3шт.
30
A55918
EYEBOLT ASSY. - clutch
3шт.
31
NSS
NOT SOLD SEPARAT
BEARING - needle, eyebolt
2шт.
32
A55925
PIN - pressure plate to lever, clutch
3шт.
33
252932R91
ROLLER
BEARING - needle, clutch lever (Replaces A27287)
6шт.
34
195-29
WASHER,7/16"
- SAE plain, clutch 7/16"
6шт.
35
A55926
RING
"E" RING - clutch lever pin retaining
3шт.
36
A55921
PIN - eyebolt retainer, clutch
3шт.
37
A55927
LEVER
- clutch release
3шт.
38
A55917
SPRING
- clutch pressure
15шт.
39
A55924
INSULATOR
- pressure spring, clutch
15шт.
40
A55912
PLATE ASSY - pressure, clutch
1шт.
Выбрано товаров: 38
