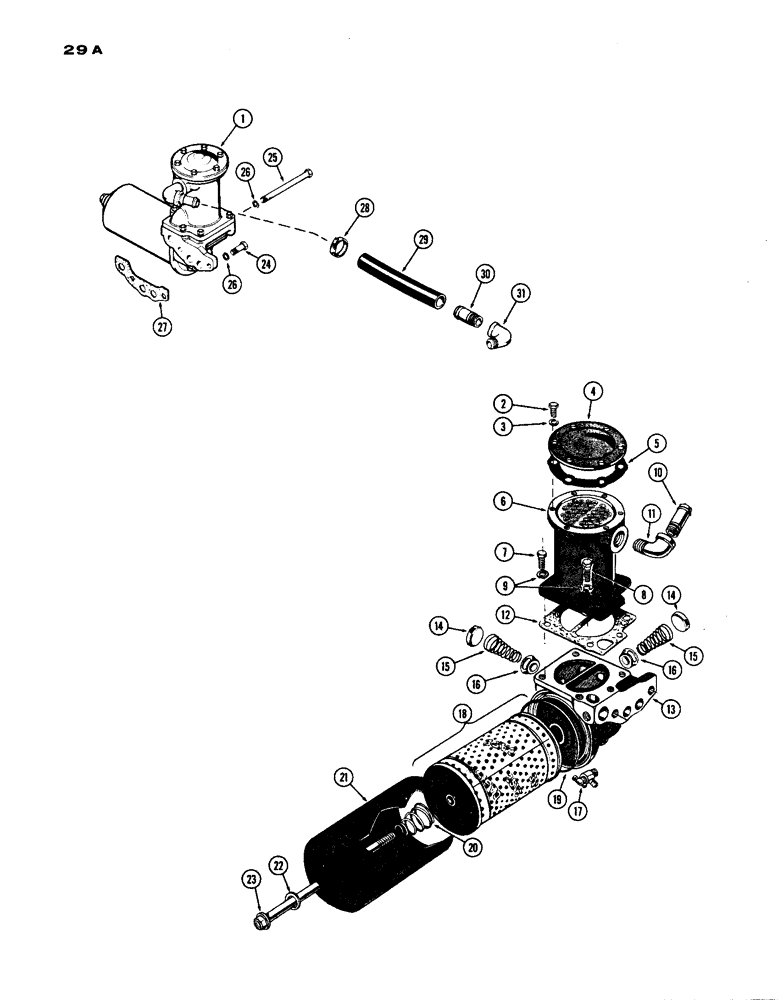

Запчасти Case IH 1200 (029A) - OIL COOLER AND FILTER, (451) DIESEL ENGINE (02) - ENGINE

1

A21128

COOLER AND FILTER ASSY. - oil engine, Includes: Ref. 1 - 23

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

3

92-5

LOCK WASHER,5/16"

6шт.

4

A23030

CAP

- oil cooler

1шт.

5

A21088

GASKET

- cap to oil cooler

1шт.

6

A21086

COOLER ASSY.

- lube oil

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

9

92-6

LOCK WASHER,3/8"

5шт.

10

A16529

NIPPLE, LUBE

NIPPLE - cooler to water pump hose

1шт.

11

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- 90deg. street, 3/4" x 3/4" N.P.T.

1шт.

12

A21087

GASKET

- cooler to filter base

1шт.

13

A23473

BASE

ASSY. - oil cooler and filter, Includes: Ref. 14 - 17

1шт.

14

41-1620

PLUG,Cup, 1 1/4", Stainless

- spring retaining

2шт.

15

A21091

VALVE SPRING

SPRING - valve retaining

2шт.

16

A21090

VALVE

- relief

2шт.

17

A23655

VALVE

ASSY. - drain

1шт.

NSS

NOT SOLD SEPARAT

FILTER ASSY. - engine lube oil (Order components), Includes: Ref. 18 - 23

1шт.

18

A20822

ENGINE OIL FILTER

ELEMENT KIT - filter, w/gasket, Includes: Ref. 19

1шт.

19

A20429

GASKET

-, Serial Range: filter-base

1шт.

20

A20427

VALVE SPRING

SPRING - element retaining

1шт.

21

A20824

SHELL

- filter element retainer

1шт.

22

A20426

GASKET

WASHER - stand pipe

1шт.

23

A20825

PIPE

STAND PIPE - filter retaining

1шт.

24

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

25

15-888

BOLT

- 1/2" x 5-1/2" N.C. hex.

1шт.

26

92-8

LOCK WASHER,1/2"

2шт.

27

A21084

GASKET

- filter and cooler, Serial Range: base-block

1шт.

28

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, cooler to water pump (#6, 1/2 AM)

2шт.

29

A24989

HOSE - cooler to water pump

1шт.

30

A16529

NIPPLE, LUBE

NIPPLE - water pump elbow and hose

1шт.

31

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- 90deg. street, 3/4" x 3/4" N.P.T.

1шт.
