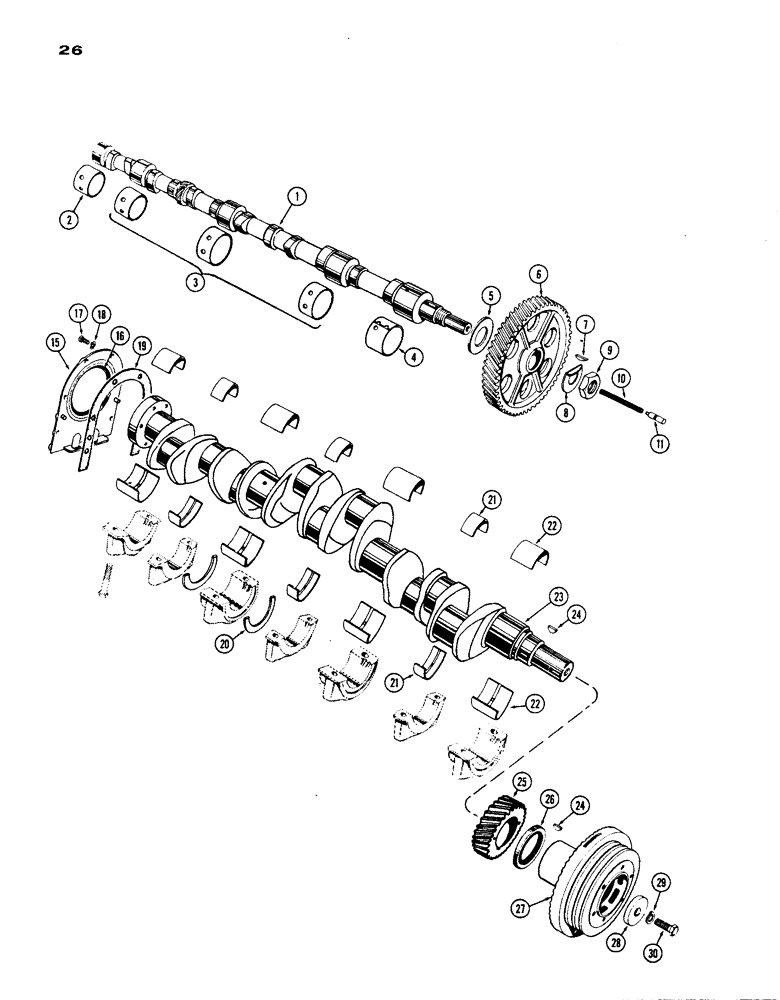

Запчасти Case IH 1200 (026) - CAMSHAFT, (451) DIESEL ENGINE (02) - ENGINE

1

A33839

CAMSHAFT

- engine

1шт.

A23544

BUSHING

KIT - camshaft (Set of 5), Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (Order A23544)

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, inter. (Order A23544)

3шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, frt. (Order A23544)

1шт.

5

A21017

WASHER

- thrust

1шт.

6

A22604

GEAR

- camshaft

1шт.

7

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Gear to camshaft #18, 1/4" x 1 1/8"

1шт.

8

A26444

LOCK WASHER

LOCK - camshaft nut

1шт.

9

A26445

NUT

- camshaft

1шт.

10

P0027853A

LARGE PIN

- camshaft plunger

1шт.

11

A27852

PLUNGER

- camshaft thrust

1шт.

15

A32182

RETAINER

- crankshaft, rear

1шт.

16

A23085

OIL SEAL

- oil, retainer, crankshaft

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Crankshaft Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

18

92-6

LOCK WASHER,3/8"

crankshaft 3/8"

6шт.

19

A32830

GASKET

- crankshaft retainer

1шт.

20

A27835

WASHER

- thrust, crankshaft

2шт.

20

A7204

WASHER

- thrust, crankshaft (.006")

2шт.

21

A20394

LINING

LINER SET - crankshaft brg. (narrow) Std. size

3шт.

21

A20579

LINING

LINER SET - crankshaft brg. (narrow) -002"

3шт.

21

A20852

LINER SET - crankshaft brg. (narrow) -.010"

3шт.

21

A20585

KIT

LINER SET - crankshaft brg. (narrow) -.020"

3шт.

21

A20588

KIT

LINER SET - crankshaft brg. (narrow) -.030"

3шт.

22

A28687

LINING

LINER SET - crankshaft brg. (wide) Std. size

4шт.

22

A7182

KIT

LINER SET - crankshaft brg. (wide) -.002"

4шт.

22

A7188

BEARING LINER

LINER SET - crankshaft brg. (wide) -.010"

4шт.

22

A7194

KIT

LINER SET - crankshaft brg. (wide) -.020"

4шт.

22

A7200

KIT

LINER SET - crankshaft brg. (wide) -.030"

4шт.

23

A24944

CRANKSHAFT - engine

1шт.

24

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft gear and fan drive pulley #C, 5/16" x 1 1/8", HT

2шт.

25

A27837

GEAR

- crankshaft front

1шт.

26

A23433

OIL SEAL

- oil, crankshaft front

1шт.

27

A20744

DAMPER

PULLEY - crankshaft and fan drive

1шт.

28

A27903

WASHER

- pulley retaining, crankshaft

1шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Crankshaft 5/8"

1шт.

30

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Pulley retaining, Crankshaft Hex, 5/8"-18 x 1 1/2", G5

1шт.
