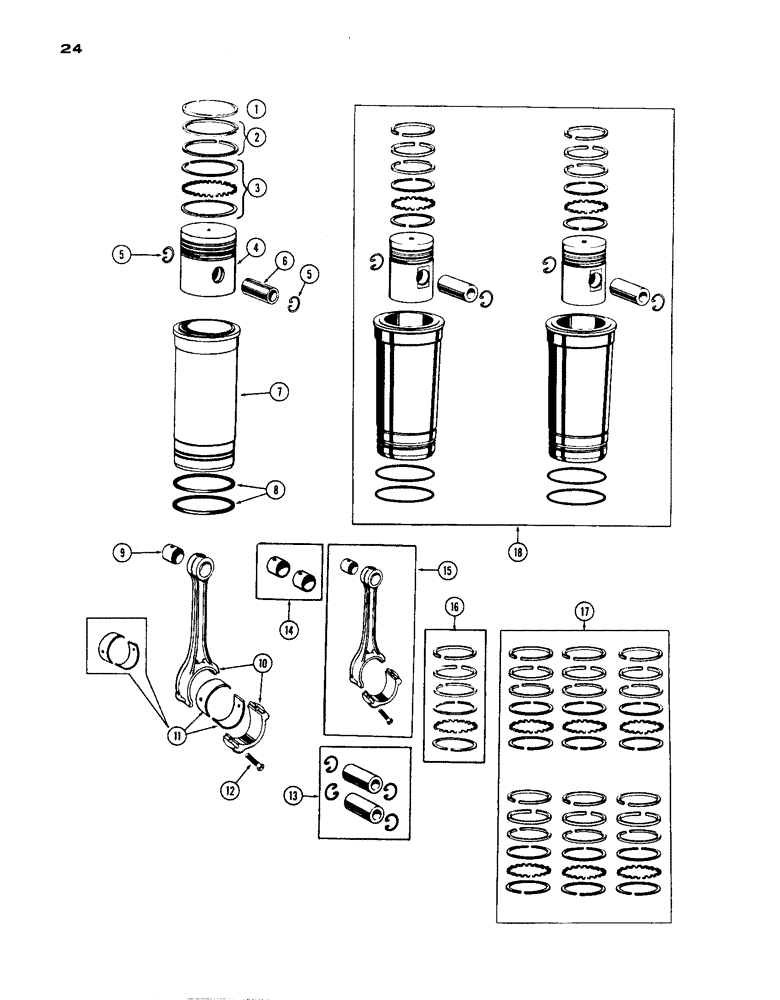

Запчасти Case IH 1200 (024) - PISTON ASSEMBLY AND CONNECTING RODS, (451) DIESEL ENGINE (02) - ENGINE

1

NSS

NOT SOLD SEPARAT

RING - piston, top (Order A24988 Ref. 16)

6шт.

2

NSS

NOT SOLD SEPARAT

RING - comp., piston, 2nd and 3rd (Order A24988, Ref. 16)

12шт.

3

NSS

NOT SOLD SEPARAT

RING ASSY - oil, piston (Order A24988 Ref. 16)

6шт.

4

A33712

X

PISTON - 4-3/8" Bore (Alum.)

6шт.

5

A21016

RING, SNAP

RETAINER RING - piston pin.

12шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order A21725, Ref. 13)

6шт.

7

A23660

SLEEVE

- cylinder

6шт.

8

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - cyl. sleeve packing

12шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - conn. rod to piston pin (Order A21722, Ref. 14)

6шт.

10

NSS

NOT SOLD SEPARAT

ROD - conn. (Order A24424, Ref. 15)

6шт.

11

A20393

LINING

LINER KIT - conn. rod brg. (Std. size)

6шт.

11

A20569

JOURNAL

LINER KIT - conn. rod brg. (-.002")

6шт.

11

A20571

BEARING LINER

LINER KIT - conn. rod brg. (-.010")

6шт.

11

A20573

KIT

LINER KIT - conn. rod brg. (-.020")

6шт.

11

A20576

LINING

LINER KIT - conn. rod brg. (-.030")

6шт.

12

A27848

SPECIAL BOLT,1/2" - 20 x 2 3/16"

- connecting rod

12шт.

13

A21725

KIT

PIN KIT - piston (Set of 2 pins and 4 ret. rings)

3шт.

14

A21722

BUSHING

KIT - conn. rod to piston (Set of 2)

3шт.

15

A24424

ROD

ASSY. - conn., w/bshg. and bolts

6шт.

16

A42996

SET

RE-RING - piston (Set for single piston) (Replaces A41266)

6шт.

17

A41267

SET OF RINGS

RE-RING KIT - pistons (Set for 6 pistons), no longer available, order 6 of P/N A42996

1шт.

18

A42995

PISTON ASSY.

PISTON AND SLEEVE KIT - engine (Set of 2) (Replaces A41268)

3шт.

A150221

SHIM

repair, .010

1шт.

A150306

SHIM

repair, .005

1шт.
