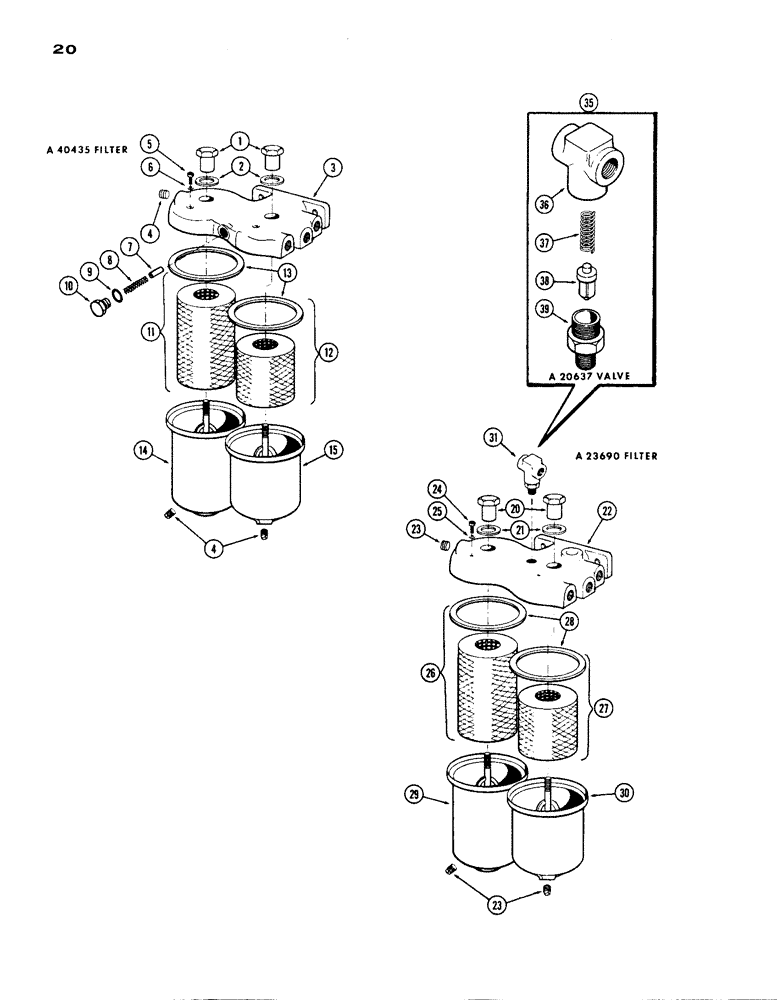

Запчасти Case IH 1200 (020) - FUEL FILTER, (451) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2090853 (02) - ENGINE

A40435

FILTER

ASSY - primary (1st and 2nd stage), Includes: Ref. 1 - 15

1шт.

1

A21131

NUT

- filter head

2шт.

2

A28055

GASKET

- filter head nut

2шт.

3

A24915

HEAD - filter, 1st and 2nd stage

1шт.

4

221-1849

PLUG

- pipe, 1/8" P.T., ctsk. sckt. hd.

3шт.

5

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, filter head

2шт.

6

A20662

GASKET

- bleed screw

2шт.

7

A24917

PLUNGER

- overflow

1шт.

8

A24918

SPRING

- plunger

1шт.

9

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - plunger

1шт.

10

A24916

PLUG

- overflow regulator

1шт.

11

A21141

FILTER, ELEMENT

ELEMENT KIT - first stage filter (incl. Ref. 13)

1шт.

12

A7627

FILTER, ELEMENT

ELEMENT KIT - second stage filter, Includes: Ref. 13

1шт.

13

A28056

GASKET

- 1st and 2nd stage body

1шт.

14

A21129

BODY

- first stage filter

1шт.

15

A21132

BODY

- second stage filter

1шт.

A23690

SHAFT LOCK

FILTER ASSY - primary (1st and 2nd stage), fuel filter used prior to eng s/n 2090853, Includes: Ref. 20 - 30

1шт.

20

A21131

NUT

- filter head, fuel filter used prior to eng s/n 2090853

2шт.

21

A28055

GASKET

- filter head nut, fuel filter used prior to eng s/n 2090853

2шт.

22

NSS

NOT SOLD SEPARAT

HEAD - filter, 1st & 2nd. stage (Order A23690),, fuel filter used prior to eng s/n 2090853

1шт.

23

221-1849

PLUG

- pipe, 1/8" P.T., ctsk. sckt. hd., fuel filter used prior to eng s/n 2090853

3шт.

24

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, filter head, fuel used prior to eng s/n 2090853

2шт.

25

A20662

GASKET

- bleed screw, fuel filter used prior to eng s/n 2090853

2шт.

26

A21141

FILTER, ELEMENT

ELEMENT KIT - first stage filter (Incl. ref. 28), fuel used prior to eng s/n 2090853

1шт.

27

A7627

FILTER, ELEMENT

ELEMENT KIT - second stage filter, fuel used prior to eng s/n 2090853, Includes: Ref. 28

1шт.

28

A28056

GASKET

- 1st and 2nd stage body, fuel filter used prior to eng s/n 2090853

1шт.

29

A21129

BODY

- first stage filter, fuel filter used prior to eng s/n 2090853

1шт.

30

A21132

BODY

- second stage filter, fuel used prior to eng s/n 2090853

1шт.

31

A20637

LOCK VALVE

VALVE ASSY - relief, overflow, fuel filter used prior to eng s/n 2090853, Includes: Ref. 36 - 39

1шт.

35

A20637

LOCK VALVE

VALVE ASSY. - relief, overflow, used prior to eng s/n 2090853, Includes: Ref. 36 - 39

1шт.

36

NSS

NOT SOLD SEPARAT

BODY - valve (Order A20637), relief used prior to eng s/n 2090853

1шт.

37

A41003

SPRING - pressure, overflow, relief valve used prior to eng s/n 2090853

1шт.

38

A41010

VALVE - overflow, relief, used prior to eng s/n 2090853

1шт.

39

NSS

NOT SOLD SEPARAT

CONNECTOR - relief valve (Order A20637), used prior to eng s/n 2090853

1шт.
