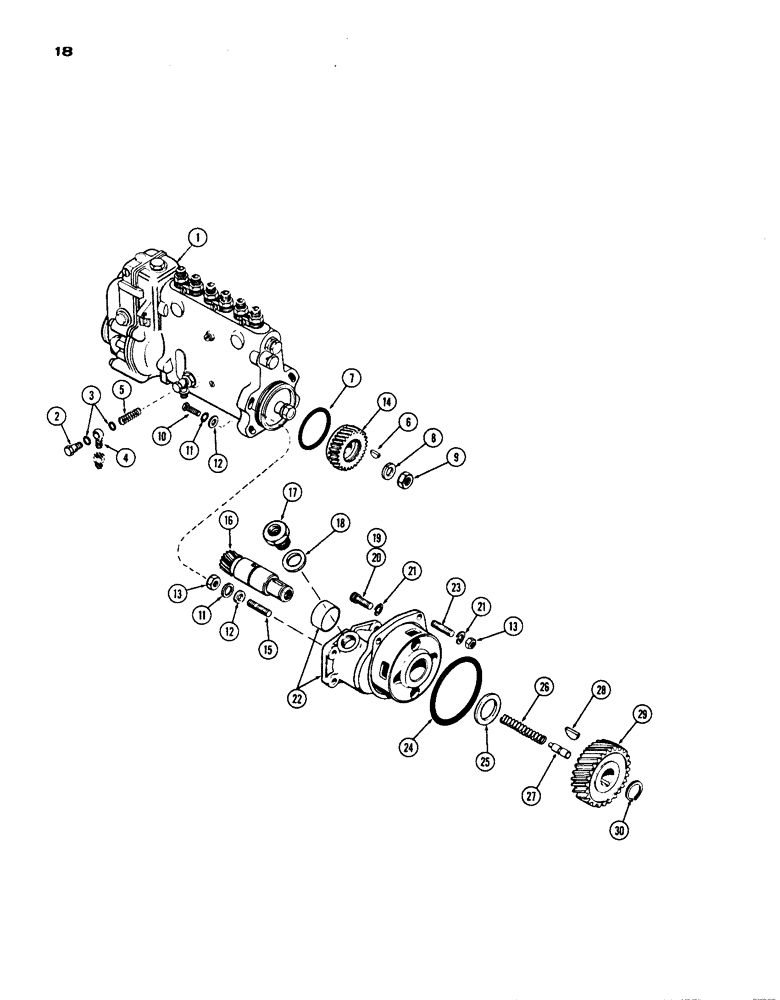

Запчасти Case IH 1200 (018) - FUEL INJECTION PUMP AND DRIVE, (451) DIESEL ENGINE (02) - ENGINE

1

A24939

FUEL PUMP ASSY. - multi-plunger, 2000 RPM, Includes: Ref. 2 - 9

1шт.

2

A25192

BANJO BOLT

BOLT -, Serial Range: connector-pump

1шт.

3

A22381

WASHER

- lube oil fitting (copper)

2шт.

4

A25191

FITTING

- connector, oil gallery tube

1шт.

5

A25190

SPRING

- lube oil fitting

1шт.

6

A20933

KEY

- Woodruff, fuel pump shaft

1шт.

7

A20529

O-RING,2.598" ID x 2.834" OD

"O" RING - fuel pump to hsg.

1шт.

8

A25188

WASHER

LOCKWASHER - pump shaft

1шт.

9

A25189

NUT - pump shaft

1шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex.

2шт.

11

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

12

195-25

WASHER,3/8"

- SAE plain 3/8"

4шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

3шт.

14

A21139

GEAR

- fuel pump drive (driven)

1шт.

15

A20664

STUD - fuel pump mtg.

2шт.

16

A20622

GEAR

PINION & SHAFT - fuel pump drive

1шт.

17

A18550

PLUG

- timing window

1шт.

18

A27947

X

GASKET - timing plug

1шт.

19

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

SCREW - cap, 3/8" x 1-1/4" N.C. hex. sckt. hd.

1шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

21

92-6

LOCK WASHER,3/8"

3шт.

22

A21136

HOUSING - fuel pump, w/bshg.

1шт.

23

A26554

STUD - drive hsg.

2шт.

24

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - fuel pump drive hsg.

1шт.

25

A27864

WASHER

- thrust

1шт.

26

A27853

SPRING

- thrust plunger

1шт.

27

A27852

PLUNGER

- thrust

1шт.

28

126-66

WOODRUFF KEY

KEY - drive gear, Woodruff #141

1шт.

29

A20899

GEAR WHEEL

GEAR - fuel pump drive

1шт.

30

A27576

SNAP RING,#98, Ext

Ring, Snap, , drive shaft #98, Ext

1шт.
