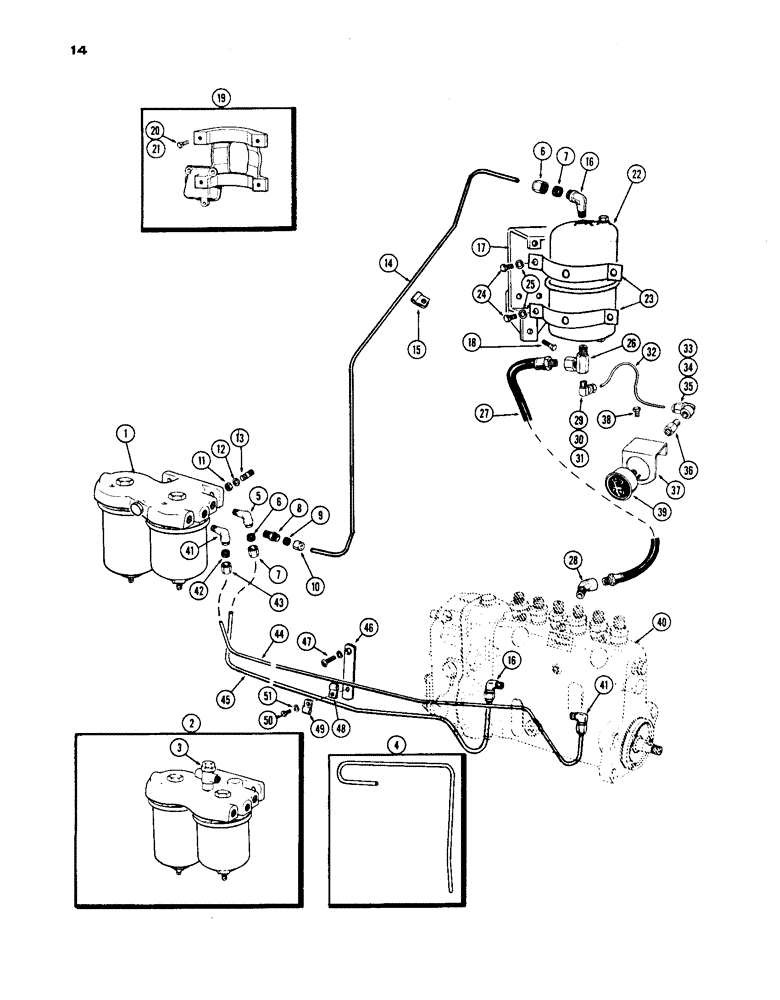

Запчасти Case IH 1200 (014) - FUEL INJECTION FILTER SYSTEM, (451) DIESEL ENGINE (02) - ENGINE

1

A40435

FILTER

ASSY - primary (Eng. S/N2090853 & after) (Repairs, Page 21)

1шт.

2

A23690

SHAFT LOCK

FILTER ASSY - primary (Prior Eng. S/N2090853) (Repairs, Page 21)

1шт.

3

A20637

LOCK VALVE

VALVE ASSY. - relief (Prior Eng. S.N. 2090853) (Repairs, Page 21)

1шт.

4

A20691

TUBE - leak-off, on #6 inj. (Prior Eng. S/N2090853)

1шт.

5

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 90deg. - #69 fl.-5/16" tube x 1/4" P.T., Includes: Ref. 6 and 7

1шт.

6

222-103

SLEEVE,5/16" Tube

- #60 Fl., 5/16" Tube

1шт.

7

222-113

TUBE NUT,9/16"-24

NUT - #61 Fl., 5/16" tube

1шт.

8

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR #68 Fl., 5/16" tube x 1/4" P.T., Includes: Ref. 9 and 10

2шт.

9

222-103

SLEEVE,5/16" Tube

- #60 Fl., 5/16" Tube

1шт.

10

222-113

TUBE NUT,9/16"-24

NUT #61 Fl., 5/16" tube

1шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

A26554

STUD - filter hd. to cyl. block

2шт.

14

A22184

TUBE

- second stage to final filter

1шт.

15

A7922

CLIP

- final filter tube

1шт.

16

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- #69 FL-90deg. 5/16" tube x 1/4" P.T.

3шт.

17

A33617

BRACKET - final filter (Eng. S/N2095635 and after)

1шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

19

A24718

BRACKET - final filter (Prior Eng. S/N2095635)

1шт.

20

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16" x 1-3/4" N.C., hex.

1шт.

21

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

22

A27983

FILTER

- third stage (final)

1шт.

23

A21144

CLAMP

- third stage filter (final)

2шт.

24

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

25

92-5

LOCK WASHER,5/16"

1шт.

26

A20539

FITTING

UNION - adapter, gauge tube

1шт.

27

A20538

FUEL HOSE,0.38" ID x 8.50"

Final filter to fuel pump 0.38" ID x 8.50"

1шт.

28

217-16

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

STREET - ell, 45deg. x 1/4" P.T. (brass)

1шт.

29

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- #68 Fl.-1/8" tube x 1/8" P.T., Includes: Ref. 30 and 31

1шт.

30

222-100

TUBE NUT,1/8" Tube

SLEEVE #60 Fl., 1/8" Tube

1шт.

31

222-110

TUBE NUT,3/8"-24

NUT - #61 fl., 1/8" tube

1шт.

32

A9364

TUBE

- gauge to final filter

1шт.

33

222-53

ELBOW,3/8"-24 x 1/8 NPTF

#70 FL-1/8" tube x 1/8" P.T., Includes: Ref. 34 and 35

1шт.

34

222-100

TUBE NUT,1/8" Tube

SLEEVE #60 fl., 1/8" P.T.

1шт.

35

222-110

TUBE NUT,3/8"-24

NUT - #61 FL., 1/8" tube

1шт.

36

A28061

FITTING

SNUBBER -, Serial Range: gauge-elbow

1шт.

37

A57077

BRACKET

- fuel pressure gauge

1шт.

38

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

39

A8101

GAUGE

ASSY - fuel pressure (Replaces A11471)

1шт.

40

A24939

PUMP ASSY - fuel, multi-plunger (Repairs, P.19)

1шт.

41

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

#69 FL - 90deg. 3/8" tube x 1/4" P.T., Includes: Ref. 42 and 43

2шт.

42

222-104

SLEEVE,3/8" Tube

#60 Fl., 3/8" Tube

1шт.

43

222-114

NUT,5/8"-24

NUT #61 fl., 3/8" tube

1шт.

44

A20693

TUBE

- first stage to fuel pump

1шт.

45

A20531

TUBE

- second stage to fuel pump

1шт.

46

A20537

BRACKET - first and second stage tube clip

1шт.

47

175-439

SCREW - mach., 3/8 x 3/4" N.C. truss hd.

1шт.

48

A20688

CLIP

- first stage to fuel pump tube

1шт.

49

A27814

X

CLAMP - second stage to fuel pump tube

1шт.

50

72-46

SCREW - mach., 1/4" x 3/8" N.F. fillister

1шт.

51

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, 1/4" int. Shakeproof

1шт.
