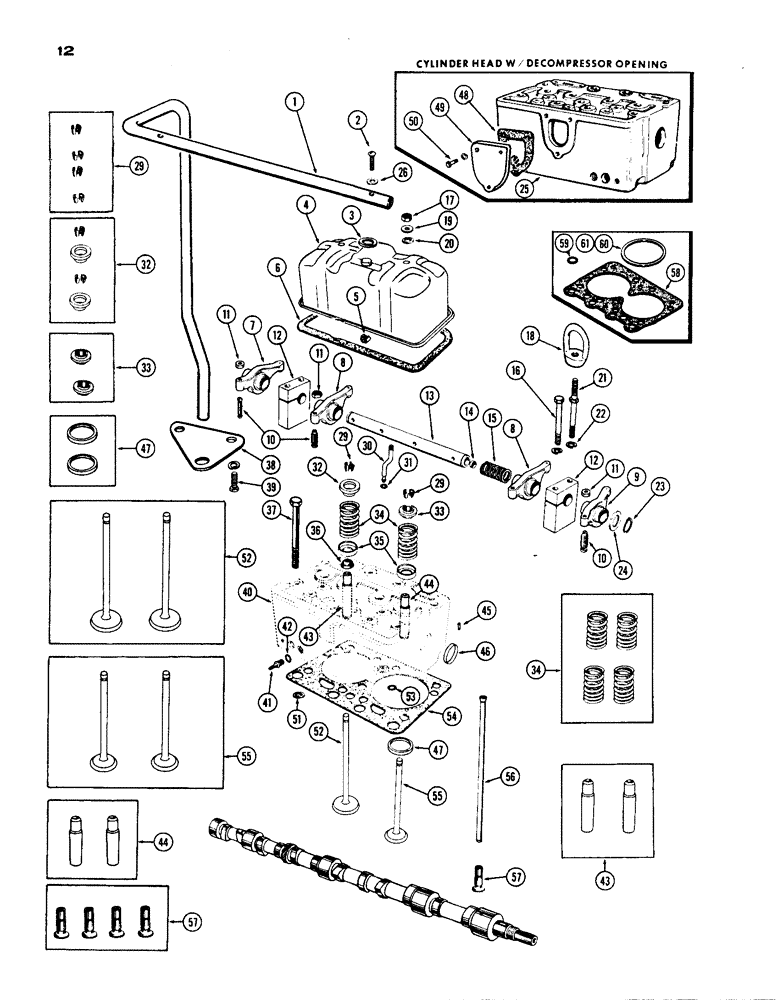

Запчасти Case IH 1200 (012) - CYLINDER HEAD ASSEMBLY, (451) DIESEL ENGINE (02) - ENGINE

1

A24184

TUBE

- breather

1шт.

2

75-432

SCREW

- 1/4" x 2" N.C. rd. hd. mach.

3шт.

3

A23685

GASKET

- breather, Serial Range: tube-cover

3шт.

4

A23681

COVER ASSY

- cylinder head, Includes: Ref. 5

3шт.

5

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - tinnerman 1/4"-20

3шт.

6

A27972

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

7

A22326

ROCKER

ARM ASSY - cyl. hd. exh. #2, 4 and 6), Includes: Ref. 10 and 11

3шт.

8

A22322

ROCKER

ARM ASSY - cyl. hd. inlet, Includes: Ref. 10 and 11

6шт.

9

A22324

ROCKER

ARM ASSY - cyl. hd. exh., #1, 3 and 5, Includes: Ref. 10 and 11

3шт.

10

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - push rod adjusting

1шт.

11

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex

1шт.

12

A27881

BRACKET

- rocker arm shaft

6шт.

13

A21100

SHAFT

ASSY - rocker arm, w/plugs, Includes: Ref. 14

3шт.

14

A26667

PLUG - rocker arm shaft

2шт.

15

A27877

SPRING

- rocker arm shaft

3шт.

16

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

6шт.

17

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

6шт.

18

A22689

NUT

- eye, engine lifting (Optional)

2шт.

19

A23683

WASHER

- beveled, cyl. head stud

6шт.

20

A23684

GASKET

GASKET - valve cover stud

6шт.

21

A28124

STUD - rocker arm brkt. and valve cover

6шт.

22

92-7

LOCK WASHER,7/16"

12шт.

23

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker arm shaft #87, Ext

6шт.

24

A27878

WASHER

- rocker arm shaft

18шт.

25

NSS

NOT SOLD SEPARAT

HEAD ASSY - cylinder engine (used Prior engine S/N 2095635) (Order A33645 and Ref. 17, P. 15)

3шт.

26

A34133

GASKET

WASHER - breather tube screw

3шт.

29

A40352

LOCK

KEEPER KIT - int. and exh. valve (Set of 8)

3шт.

30

A27879

TUBE

- oil, rocker arm shaft

3шт.

31

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube, rocker arm shaft

3шт.

32

A21657

LOCK

RETAINER KIT - int. valve (Incl. 2 ret. and 4 keepers)

3шт.

33

A24993

CAP

ROTO CAP KIT - exh. valve (Set of 2)

3шт.

34

A21694

SPRING

KIT - int. and exh. valve (Set of 4)

3шт.

35

A27866

SEAT

- int. & exh. valve spring

12шт.

36

A10726

SEAL

SHIELD - intake valve stem (rubber)

6шт.

37

A23355

BOLT

- cylinder head

27шт.

38

A23686

BRACKET

- breather tube

1шт.

39

A9936

BOLT - breather tube bracket

2шт.

40

A33645

HEAD

ASSY - engine, cyl. (Eng. S/N 2095635 and after), Includes: Ref. 41 - 47

3шт.

41

A10678

STUD

- large, nozzle holder

2шт.

42

A10679

GASKET

- nozzle stud

2шт.

43

A21671

GUIDE

KIT - intake valve (Set of 2)

1шт.

44

A21674

GUIDE

KIT - exh. valve (Set of 2)

1шт.

45

A27898

PIN - locating, powrcel

2шт.

46

A23653

X

PLUG - cup, cyl. head expansion

2шт.

47

A21683

SHAFT

INSERT KIT - exh. valve seat (Set of 2)

1шт.

48

A22939

GASKET

- decomp. plate

3шт.

49

A22607

COVER ASSY

PLATE - cover, decomp. opening

2шт.

50

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

51

NSS

NOT SOLD SEPARAT

RING - cyl, head gasket (Order ref. 58 and 59 or 60)

6шт.

52

A24921

KIT

VALVE KIT - intake (Set of 2)

3шт.

53

NSS

NOT SOLD SEPARAT

"O" RING - cyl. head oil press. (Order ref. 58 and 59 or 60)

3шт.

54

NSS

NOT SOLD SEPARAT

GASKET - cyl. head (Order ref. 58 and 59 or 60)

3шт.

55

A34254

VALVE

KIT - exh. (Set of 2)

3шт.

56

A21060

ROD

- push, valve

12шт.

57

A21653

KIT

LIFTER KIT - push rod (Set of 4)

3шт.

58

A41385

X

GASKET KIT - cylinder head, Includes: Ref. 59

3шт.

59

A57226

RING - cyl. head gasket

4шт.

60

A34686

RING

- fire, cyl. head gasket (Std.)

6шт.

61

A34688

RING

- fire, cyl. head gasket (Oversize) (Blue Stripe coded)

6шт.
