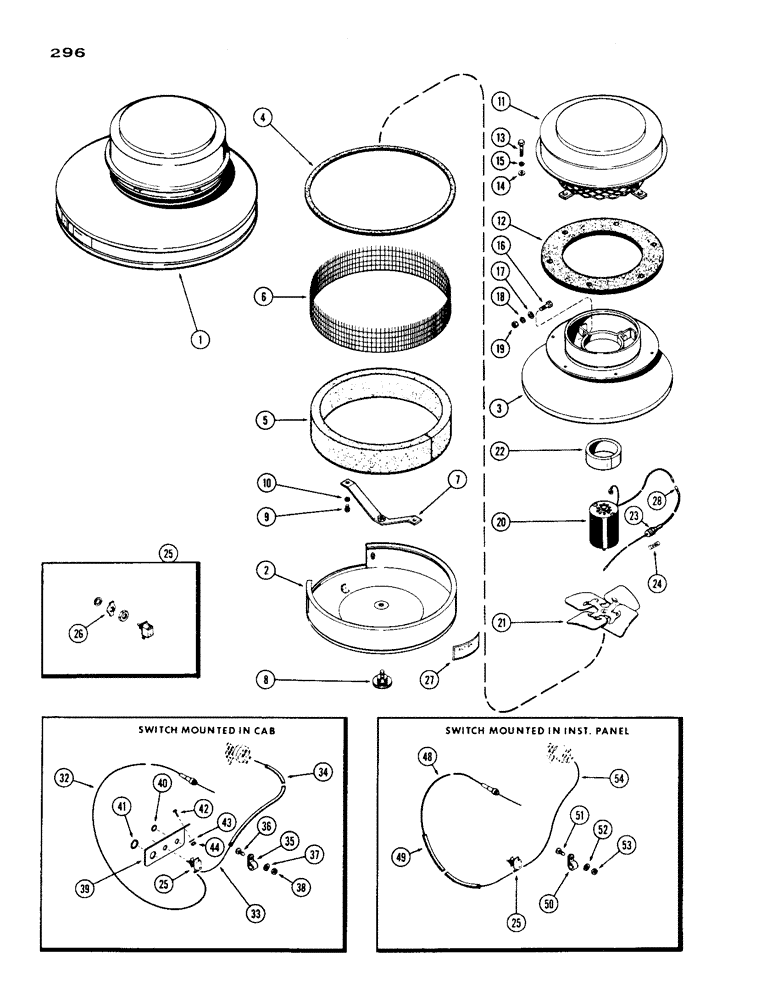

Запчасти Case IH 1200 (296) - PRESSURIZER UNIT AND WIRING (09) - CHASSIS

1

L30072

PRESSURIZER ASSY. - cab (24 volt), Includes: Ref. 2 - 28

1шт.

2

L30088

HOUSING - element

1шт.

3

L30089

HOUSING - motor

1шт.

4

L30090

RACK

GASKET - housing (64" long)

1шт.

5

L30104

ELEMENT - air filter

1шт.

6

L30105

SCREEN - air filter element

1шт.

7

L30091

BRACKET - housing

1шт.

8

L30087

KNOB

SCREW - element hsg. retaining

1шт.

9

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- motor hsg. ret., 1/4" x 3/4" N.C. hex.

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

11

L30082

COVER ASSY. - housing, w/screen

1шт.

12

L30083

GASKET - cover to motor hsg.

1шт.

13

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

14

195-103

WASHER,5/16"

- flat, 5/16"

6шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

16

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Motor hsg Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

17

195-102

WASHER,1/4"

- flat, 1/4"

3шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

19

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

20

L30086

MOTOR ASSY. - pressurizer (Motor Spec. Model #1998)

1шт.

21

L30097

FAN ASSY. - motor

1шт.

22

L30081

CUSHION - shock & insulation, motor (rubber)

1шт.

23

L30073

HOLDER ASSY. - fuse

1шт.

24

L30080

FUSE

- connector (10 amp.)

1шт.

25

L30102

SWITCH - toggle (S.P.S.T., 15 amp.)

1шт.

26

L30103

PLATE - switch (on-off)

1шт.

27

L30106

DECAL - caution (element)

1шт.

28

L30151

CONNECTOR - fuse wire (Sleeve type)

1шт.

32

L10655

WIRE - fuse to on-off switch (60" long), w/ mounted in cab

1шт.

33

L10656

WIRE - on-off switch to ign. switch (36" long), w/ mounted in cab

1шт.

34

A27259

LOOM - wire (22' long), w/ switch mounted in cab

1шт.

35

L10167

CLIP - wire retaining, w/ switch mounted in cab

5шт.

36

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Clip w/ switch mounted in cab Hex, 1/4"-20 x 3/4", G5, Full Thd

5шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , w/Switch mounted in cab 1/4"

5шт.

38

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, w/ Switch mounted in cab

5шт.

39

L10657

BRACKET - on-off switch mounting, w/ in cab

1шт.

40

205-21

CAPSCREW

PLUG - brkt., 1/2" button type, w/ switch mounted in cab

1шт.

41

205-26

PLUG - brkt, 5/8" button type, w/ switch mounted in cab

1шт.

42

173-207

X

SCREW - brkt., 1/4 x 5/8" N.C. hex., w/ switch mounted in cab

2шт.

43

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , w/Switch mounted in cab 1/4"

2шт.

44

129-141

JAM NUT,Jam, 1/4"-20, G5

w/ switch mounted in cab Jam, 1/4"-20, G5

2шт.

48

L10276

WIRE - fuse to switch (80" long), w/ mounted in cab

1шт.

49

A27259

LOOM - wire (22" long), w/ switch mounted in cab

1шт.

50

L10167

CLIP - wire retaining, w/ switch mounted in cab

5шт.

51

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Clip w/ switch mounted in cab Hex, 1/4"-20 x 3/4", G5, Full Thd

5шт.

52

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , w/Switch mounted in cab 1/4"

5шт.

53

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, w/ Switch mounted in cab

5шт.

54

L10277

WIRE - on-off switch to ign. switch (6" long), w/ mounted in cab

1шт.
