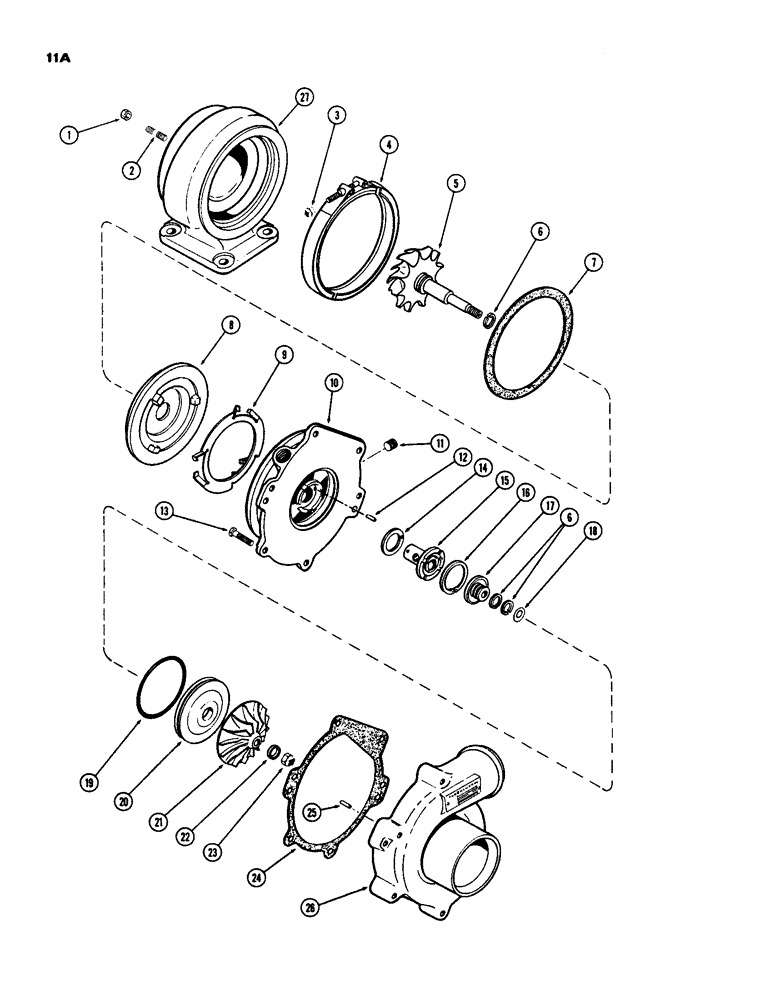

Запчасти Case IH 1200 (011A) - TURBO CHARGER, (451) DIESEL ENGINE (02) - ENGINE

1

131-903

NUT,3/8"-16

NUT - hex., 3/8" -16 N.C. (Seez-Pruf)

4шт.

2

A29356

STUD

- mtg., exhaust, Serial Range: elbow-turbo

4шт.

A34289

TURBOCHARGER

ASSY - engine, Includes: Ref. 3 - 27

1шт.

3

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex. lock, #10-32 (Cadium Plated)

1шт.

4

A56252

CLAMP

ASSY - vee, hsg. (Inc. Ref. 3)

1шт.

5

A40954

WHEEL & SHAFT - turbine

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston ring (Order A56278 kit)

3шт.

7

A56251

GASKET - turbine housing

1шт.

8

A56255

SHIELD - turbocharger

1шт.

9

A56256

SPRING - turbo ring

1шт.

10

A56257

HOUSING - turbo bearing

1шт.

11

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, 1/2" hex. sckt. hd.

2шт.

12

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, 1/8" x 3/8", Slotted

1шт.

13

A56276

BOLT - hex., turbo brg. hsg. to compressor hsg.

6шт.

14

A56260

SHIM - turbo-bearing (.014")

1шт.

14

A56259

SHIM - turbo bearing (.012")

1шт.

14

A56263

SHIM - turbo bearing (.011")

1шт.

14

A56258

SHIM - turbo bearing (.010")

1шт.

14

A56262

SHIM - turbo bearing (.009")

1шт.

14

A56261

SHIM - turbo bearing (.008")

1шт.

15

A56264

BEARING

- turbo shaft

1шт.

16

A56265

RING - bearing retainer

1шт.

17

A56267

SPACER - turbo shaft

1шт.

18

A56269

SHIM - turbo impeller (.010")

1шт.

18

A56270

SHIM - turbo impeller (.015")

1шт.

19

A56268

O-RING

"O"RING - turb oil sealing

1шт.

20

A56266

PLATE - oil retainer

1шт.

21

A40956

IMPELLER - turbo

1шт.

22

A56273

WASHER - turb impeller

1шт.

23

A56272

NUT - hex., self-aligning (left hand thread)

1шт.

24

A56275

GASKET - compressor housing

1шт.

25

135-256

PIN - groove, 1/4" x 5/8" (Type 2)

2шт.

26

A40958

HOUSING - turbo compressor (exhaust stock, then order A41446 housing)

1шт.

26

PA41446

SUPPORT

HOUSING - turbo compressor

1шт.

27

A40957

HOUSING - turbine

1шт.

A56278

SEAL ASSY.

SEAL AND RING KIT - turbo (contains Ref. 6 and tool)

1шт.
